FRENIC-Ace (E2)

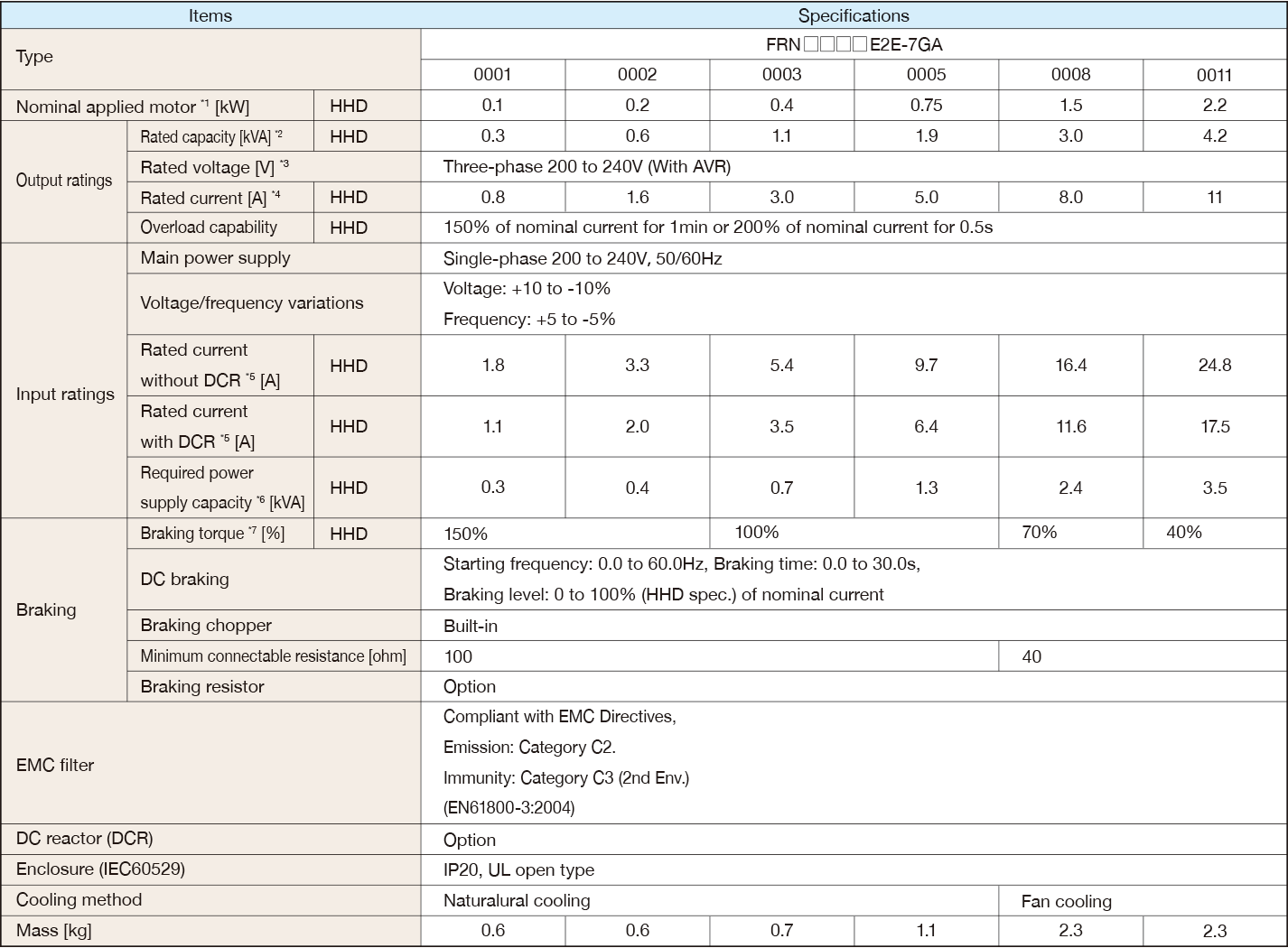

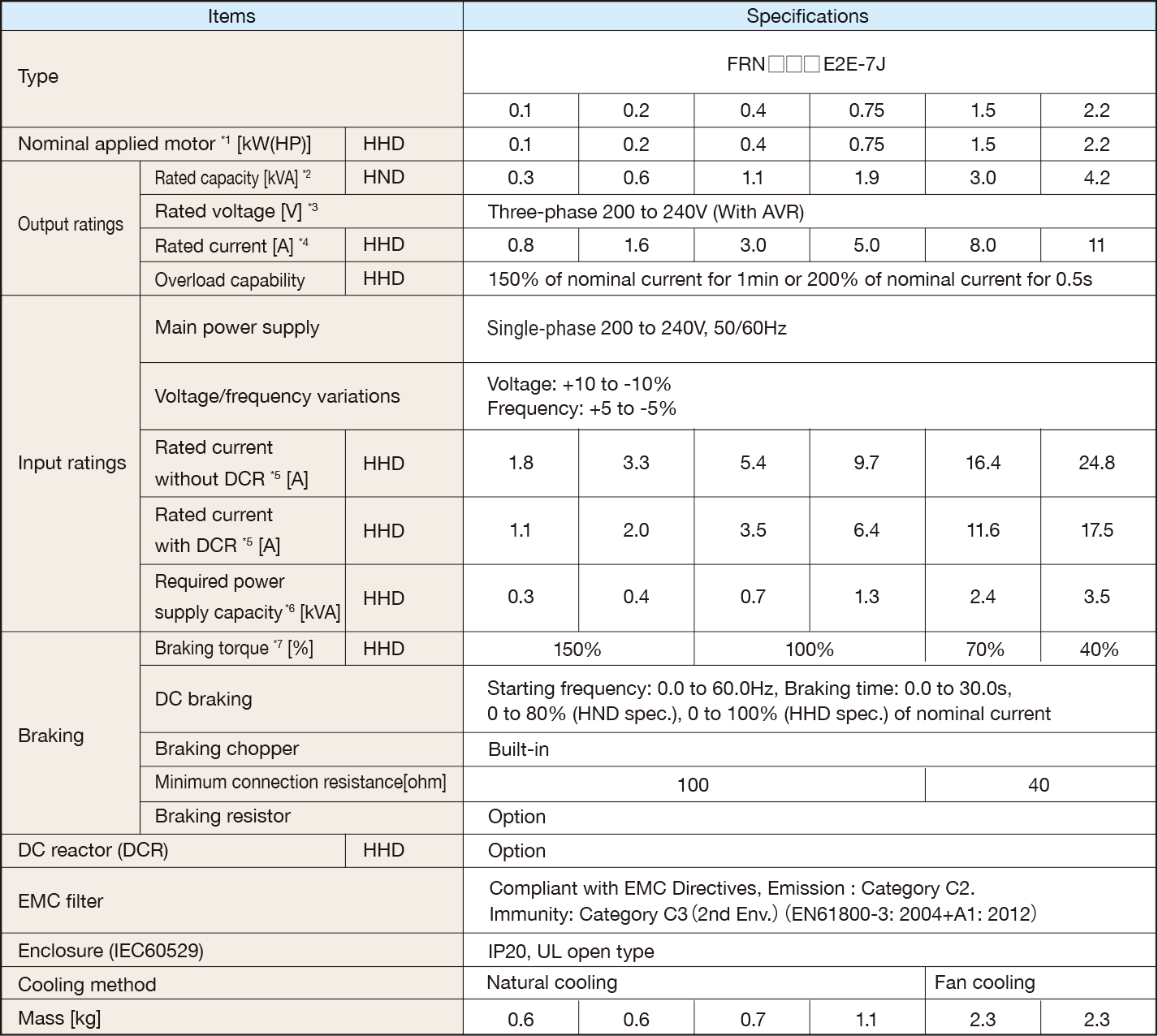

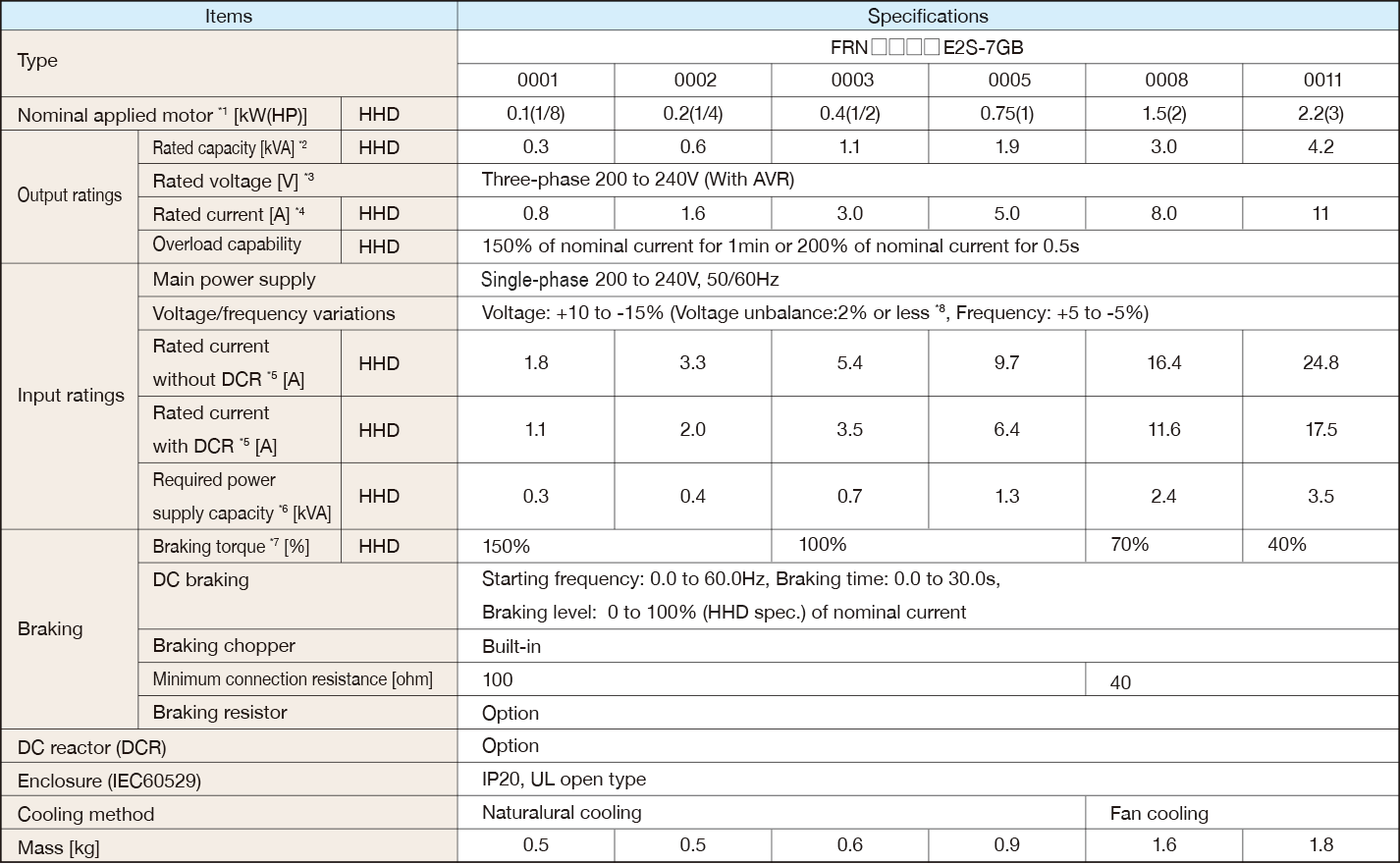

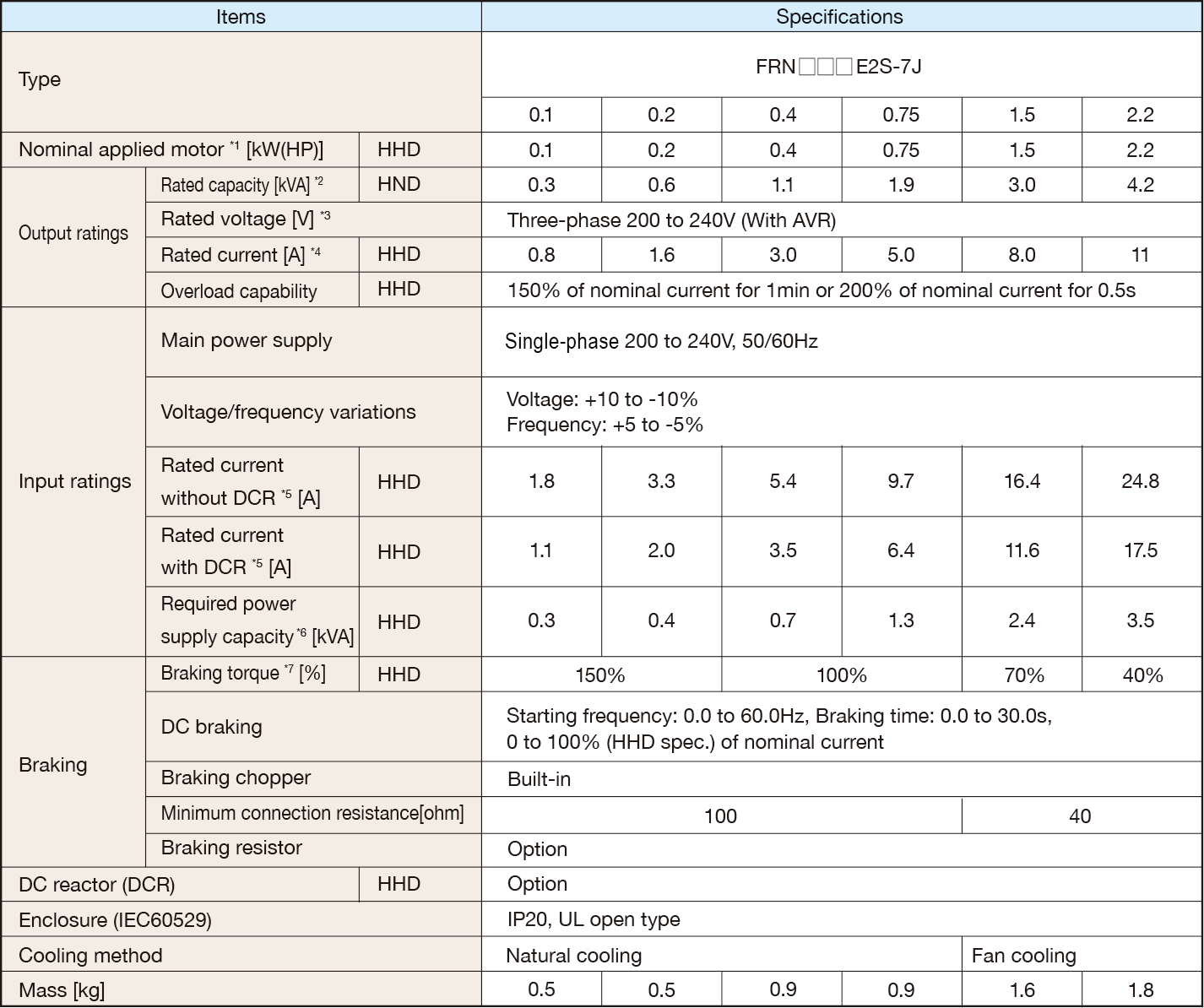

Standard Specifications | Single-phase 200V

Fuji 4-pole standard motor. At the selection of the inverter rating, consider not only the rating capacity(kW) is enough but also inverter output current is larger than selected the motor's nominal current.

Rated capacity is calculated by assuming the output rated voltage as 220 V.

Output voltage cannot exceed the power supply voltage.

When the carrier frequency (F26) is set to below value or higher, the inverter is sure to be necessary to derate their nominal current.
HHD spec.---type 0001 to 0011 : 8kHz

The value is calculated assuming that the inverter is connected with a power supply with the capacity of 500 kVA
(or 10 times the inverter capacity if the inverter capacity exceeds 50 kVA) and %X is 5%.

Obtained when a DC reactor (DCR) is used.

Average braking torque for the motor running alone. (It varies with the efficiency of the motor.)

Fuji 4-pole standard motor. At the selection of the inverter rating, consider not only the rating capacity(kW) is enough but also inverter output current is larger than selected the motor's nominal current.

Rated capacity is calculated by assuming the output rated voltage as 220 V.

Output voltage cannot exceed the power supply voltage.

When the carrier frequency (F26) is set to below value or higher, the inverter is sure to be necessary to derate their nominal current.
HHD spec.---type 0001 to 0011 : 8kHz

The value is calculated assuming that the inverter is connected with a power supply with the capacity of 500 kVA
(or 10 times the inverter capacity if the inverter capacity exceeds 50 kVA) and %X is 5%.

Obtained when a DC reactor (DCR) is used.

Average braking torque for the motor running alone. (It varies with the efficiency of the motor.)

Fuji 4-pole standard motor. At the selection of the inverter rating, consider not only the rating capacity (kW) is enough but also inverter output current is larger than selected the motor's nominal current.

Rated capacity is calculated by assuming the output rated voltage as 220 V.

Output voltage cannot exceed the power supply voltage.

When the carrier frequency (F26) is set to below value or higher, the inverter is sure to be necessary to derate their nominal current.
HHD spec.---type 0001 to 0011 ：8 kHz

The value is calculated assuming that the inverter is connected with a power supply with the capacity of 500 kVA
(or 10 times the inverter capacity if the inverter capacity exceeds 50 kVA) and %X is 5%.

Obtained when a DC reactor (DCR) is used.

Average braking torque for the motor running alone. (It varies with the efficiency of the motor.)

Fuji 4-pole standard motor. At the selection of the inverter rating, consider not only the rating capacity (kW) is enough but also inverter output current is larger than selected the motor's nominal current.

Rated capacity is calculated by assuming the output rated voltage as 220 V.

Output voltage cannot exceed the power supply voltage.

When the carrier frequency (F26) is set to below value or higher, the inverter is sure to be necessary to derate their nominal current.
HHD spec.---type 0001 to 0011 ：8 kHz

The value is calculated assuming that the inverter is connected with a power supply with the capacity of 500 kVA
(or 10 times the inverter capacity if the inverter capacity exceeds 50 kVA) and %X is 5%.

Obtained when a DC reactor (DCR) is used.

Average braking torque for the motor running alone. (It varies with the efficiency of the motor.)

Fuji 4-pole standard motor. At the selection of the inverter rating, consider not only the rating capacity(kW) is enough but also inverter output current is larger than selected the motor's nominal current.

Rated capacity is calculated by assuming the output rated voltage as 220 V.

Output voltage cannot exceed the power supply voltage.

When the carrier frequency (F26) is set to below value or higher, the inverter is sure to be necessary to derate their nominal current.
HHD spec.---type 0001 to 0011 : 8kHz

The value is calculated assuming that the inverter is connected with a power supply with the capacity of 500 kVA
(or 10 times the inverter capacity if the inverter capacity exceeds 50 kVA) and %X is 5%.

Obtained when a DC reactor (DCR) is used.

Average braking torque for the motor running alone. (It varies with the efficiency of the motor.)

Fuji 4-pole standard motor. At the selection of the inverter rating, consider not only the rating capacity(kW) is enough but also inverter output current is larger than selected the motor's nominal current.

Rated capacity is calculated by assuming the output rated voltage as 220 V.

Output voltage cannot exceed the power supply voltage.

When the carrier frequency (F26) is set to below value or higher, the inverter is sure to be necessary to derate their nominal current.
HHD spec.---type 0001 to 0011 : 8kHz

The value is calculated assuming that the inverter is connected with a power supply with the capacity of 500 kVA
(or 10 times the inverter capacity if the inverter capacity exceeds 50 kVA) and %X is 5%.

Obtained when a DC reactor (DCR) is used.

Average braking torque for the motor running alone. (It varies with the efficiency of the motor.)

Fuji 4-pole standard motor. At the selection of the inverter rating, consider not only the rating capacity(kW) is enough but also inverter output current is larger than selected the motor's nominal current.

Rated capacity is calculated by assuming the output rated voltage as 220 V.

Output voltage cannot exceed the power supply voltage.

When the carrier frequency (F26) is set to below value or higher, the inverter is sure to be necessary to derate their nominal current.
HHD spec.---type 0001 to 0011 : 8kHz

The value is calculated assuming that the inverter is connected with a power supply with the capacity of 500 kVA
(or 10 times the inverter capacity if the inverter capacity exceeds 50 kVA) and %X is 5%.

Obtained when a DC reactor (DCR) is used.

Average braking torque for the motor running alone. (It varies with the efficiency of the motor.)
