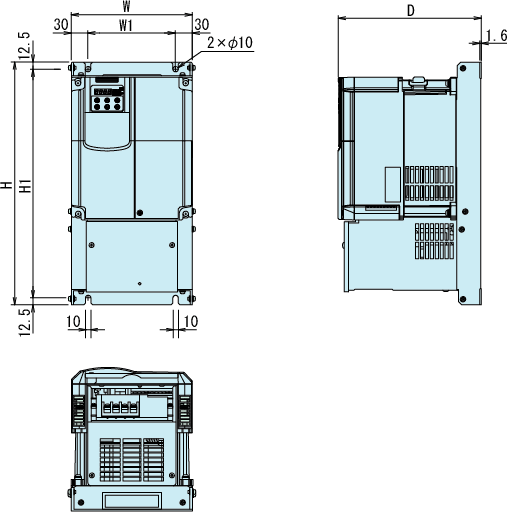

Inverter main body with built-in EMC filter (7.5 to 15kW)

Power supply voltage	Type	Dimensions (mm)
Power supply voltage	Type	W	W1	H	H1	D
Three-phase 200V	FRN7.5F1E-2A	220	160	440	415	260
	FRN11F1E-2A
	FRN15F1E-2A
Three-phase 400V	FRN7.5F1E-4A	220	160	440	415	260
	FRN11F1E-4A
	FRN15F1E-4A
