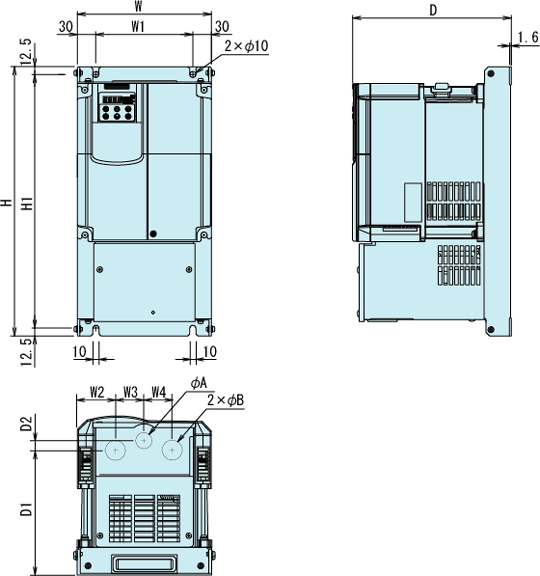

External dimensions

Inverter main body with built-in DCR(7.5 to 30kW)

Power supply voltage Type Dimensions (mm)
W W1 W2 W3 W4 H H1 D D2 D1 φA φB
Three-phase 200V FRN7.5F1H-2A 220 160 63.5 46.5 46.5 440 415 260 205.5 16 27 34
FRN11F1H-2A
FRN15F1H-2A 200.5 21 34 42
FRN18.5F1H-2A 250 190 66 59 59 600 575 202 7
FRN22F1H-2A
FRN30F1H-2A 48
Three-phase 400V FRN7.5F1H-4A 220 160 63.5 46.5 46.5 440 415 260 205.5 16 27 34
FRN11F1H-4A
FRN15F1H-4A 200.5 21 34 42
FRN18.5F1H-4A 250 190 66 59 59 600 575 202 7
FRN22F1H-4A
FRN30F1H-4A 48
