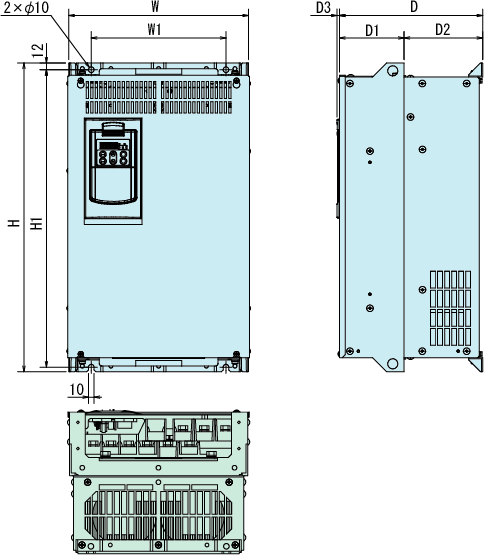

Main body of standard inverter (37 to 220kW)
| Power supply voltage | Type | Dimensions (mm) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| W | W1 | H | H1 | D | D1 | D2 | D3 | ||
| Three-phase 200V | FRN37F1S-2A | 320 | 240 | 550 | 530 | 255 | 115 | 140 | 4.5 |
| FRN45F1S-2A | 355 | 275 | 615 | 595 | 270 | 155 | |||
| FRN55F1S-2A | |||||||||
| FRN75F1S-2A | 740 | 720 | |||||||
| Three-phase 400V | FRN37F1S-4A | 320 | 240 | 550 | 530 | 255 | 115 | 140 | 4.5 |
| FRN45F1S-4A | |||||||||
| FRN55F1S-4A | 355 | 275 | 270 | 155 | |||||
| FRN75F1S-4A | 615 | 595 | |||||||
| FRN90F1S-4A | 740 | 720 | 300 | 145 | 155 | 6 | |||
| FRN110F1S-4A | |||||||||
| FRN132F1S-4A | 530 | 430 | 740 | 710 | 315 | 135 | 180 | ||
| FRN160F1S-4A | 360 | 180 | 180 | ||||||
| FRN200F1S-4A | 1000 | 970 | |||||||
| FRN220F1S-4A | |||||||||
