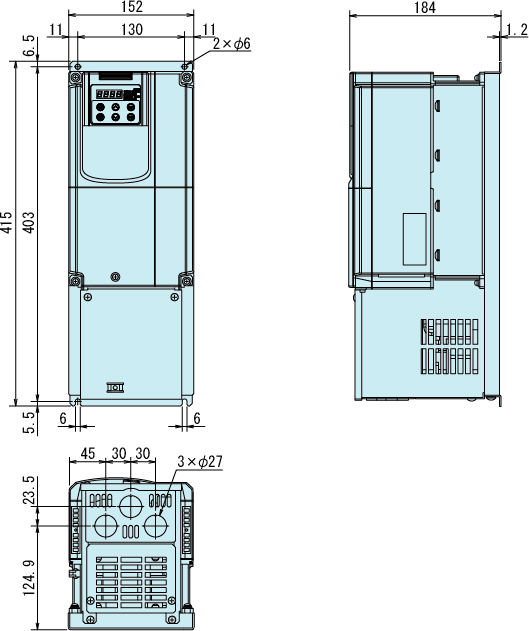

Inverter main body with built-in DCR (5.5kW or smaller)

Power supply voltage	Type
Three-phase 200V	FRN0.75F1H-2A FRN1.5F1H-2A FRN2.2F1H-2A FRN3.7F1H-2A FRN5.5F1H-2A
Three-phase 400V	FRN0.75F1H-4A FRN1.5F1H-4A FRN2.2F1H-4A FRN3.7F1H-4A FRN5.5F1H-4A
