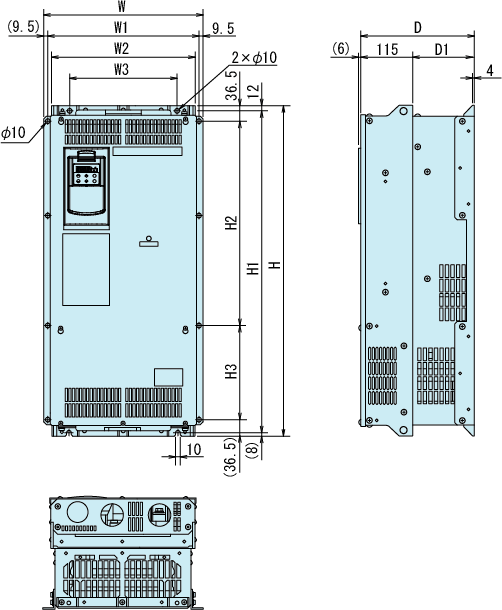

Inverter main body with built-in DCR(37 to 75kW)

Power supply voltage	Type	Dimensions (mm)
Power supply voltage	Type	W	W1	W2	W3	H	H1	H2	H3	D	D1
Three-phase 200V	FRN37F1H-2A	355	336	320	240	770	750	477	220	255	140
	FRN45F1H-2A	390	371	355	275	850	830	542	235	270	155
	FRN55F1H-2A					850	830	542	235
	FRN75F1H-2A					1000	980	667	260
Three-phase 400V	FRN37F1H-4A	355	336	320	240	770	750	477	220	255	140
	FRN45F1H-4A	355	336	320	240					255	140
	FRN55F1H-4A	390	371	355	275					270	155
	FRN75F1H-4A	390	371	355	275	850	830	542	235	270	155
