Option

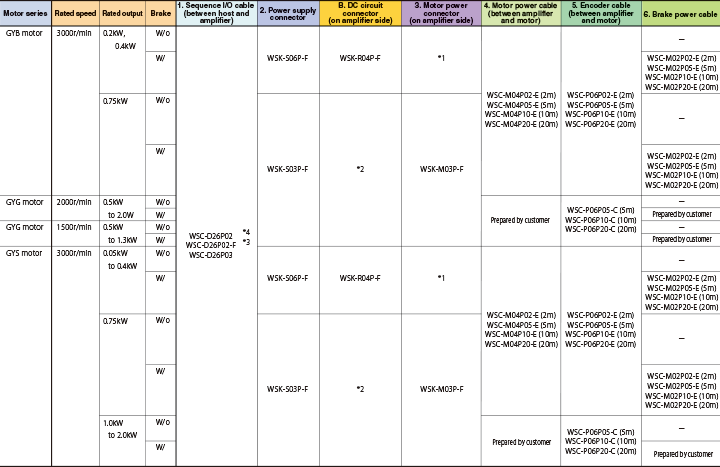

Basic option* Prepare the optional items below when using the ALPHA5 Smart series.

Top of Page

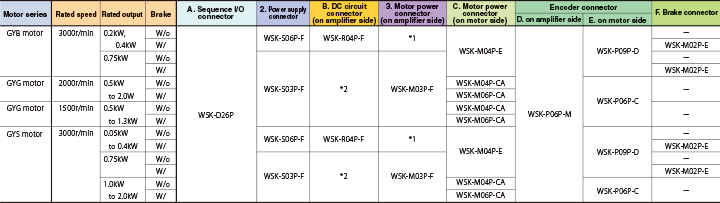

Connector kit options* If the cables are fabricated by the customer use the connectors below.

  • *1: The connector is shared by the motor power (on the amplifiler side) and the power supply.
  • *2: The connector is not necessary as it is included in the package of servo amplifier.
  • *3: When connecting the open collector, Please use the sequence input/output cable for open collector (DC24V).
  • *4: When connecting the open collector, Please use the sequence input/output cable for open collector (Outside DC24V).
Top of Page

External regenerative resistor options

ABS backup battery

Other option

  • *1: Use a commercially-available USB cable (USB-A : USB-B, or USB-A : mini-B) when connecting the servo operator to PC.
    Use a commercially-available LAN cable when connecting the servo operation to the servo amplifier.
