Servomotor Specifications GYS motor

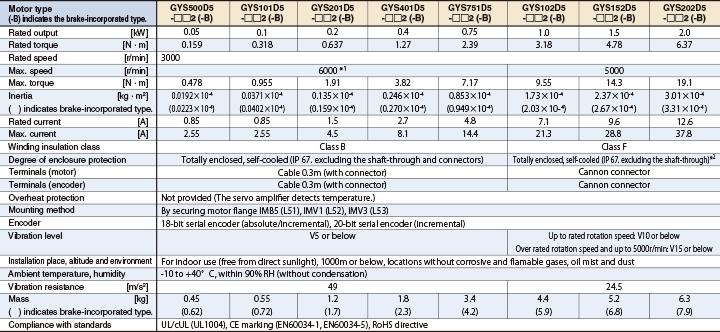

Standard specifications

  1. *1 The maximum rotation speed is 5000r/min when using the motor in combination with Fuji's gear head.
  2. *2 If the motor is used in the environment rated to IP67 protection degree, use the wiring connector suitable for the protection degree.
Top of Page

Brake specifications (motor equipped with a brake)

Top of Page

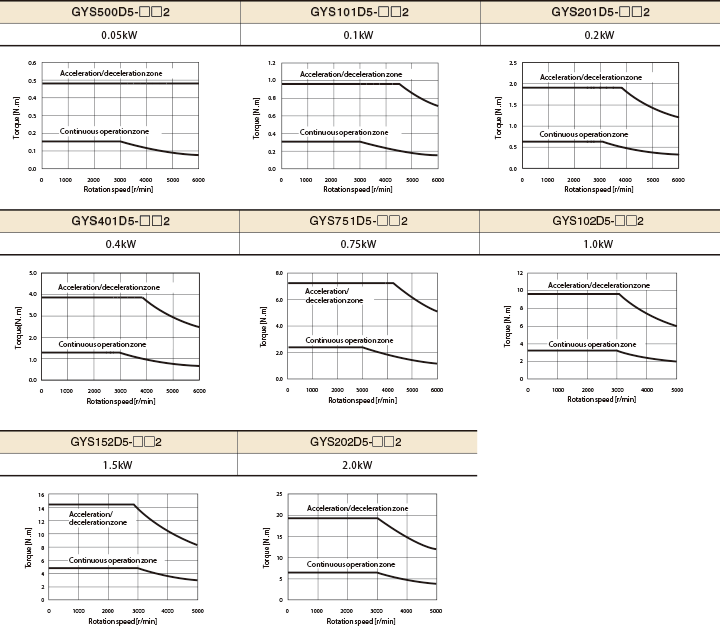

Torque characteristics diagrams (at 3-phase 200 [V] or single-phase 230 [V] source voltage)

These characteristics indicate typical values of each servomotor combined with the corresponding servo amplifier RYH series.
The rated torque indicates the value obtained when the servo amplifier is installed to the following aluminum heat sink.

  • Model GYS500D, 101D : 200×200×6 [mm]
  • Model GYS201D, 401D : 250×250×6 [mm]
  • Model GYS751D : 300×300×6 [mm]
  • Model GYS102D, 152D, 202D : 350×350×8 [mm]
