Servomotor Specifications GYG motor (2000r/min, 1500r/min)

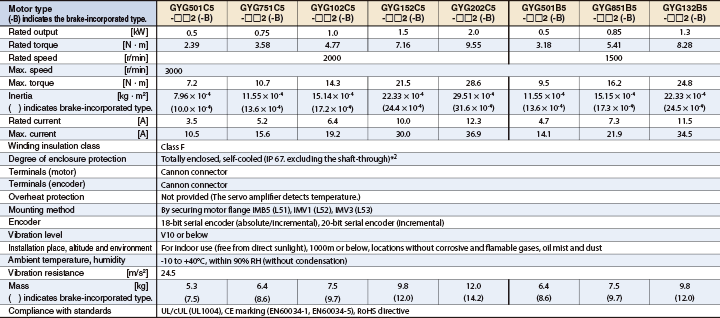

Standard specifications

  1. *1 The load inertia ratio to the inertia of servo motor. If the moment of load inertia ratio value exceeds the list value, please contact us.
  2. *2 If the motor is used in the environment rated to IP67 protection degree, use the wiring connector suitable for the protection degree.
Top of Page

Brake specifications (motor equipped with a brake)

Top of Page

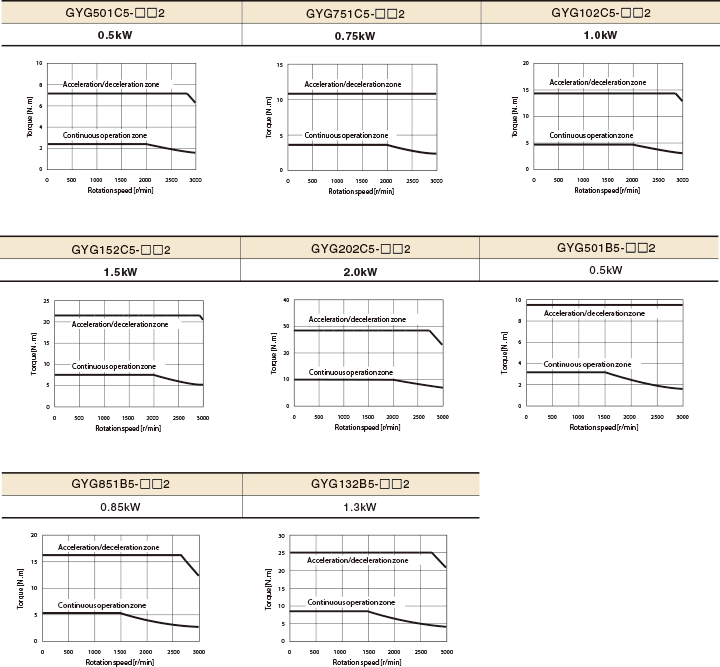

Torque characteristics diagrams (at 3-phase 200 [V] or single-phase 230 [V] source voltage)

These characteristics indicate typical values of each servomotor combined with the corresponding servo amplifier RYH series.
The rated torque indicates the value obtained when the servo amplifier is installed to the following aluminum heat sink.

  • Model GYG501C, 751C, 102C : 300×300×2 [mm]
  • Model GYG152C, 202C : 400×400×12 [mm]
  • Model GYG501B, 851B : 300×300×12 [mm]
  • Model GYG132B : 400×400×12 [mm]
