ALPHA5 Smart
Configuration Diagram/Peripheral Equipment

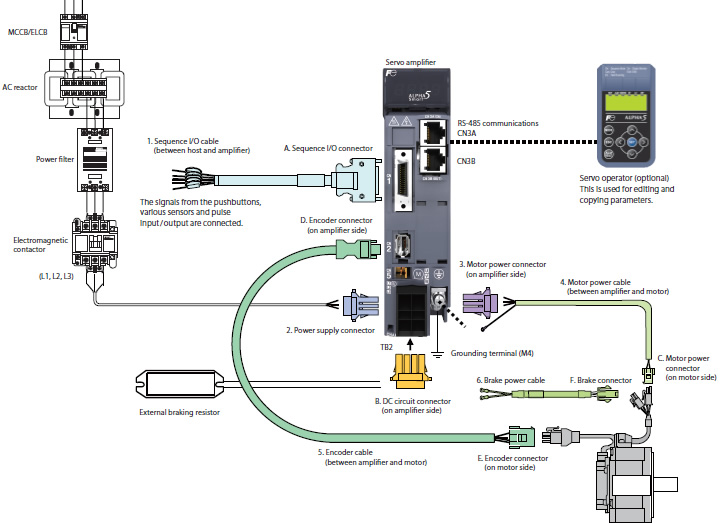

Configuration diagram

-
*1
-
"power supply connector" (2) and "motor power connector on amplifier side" (3) are shared with the models with the motor output of 0.4 kW or less.

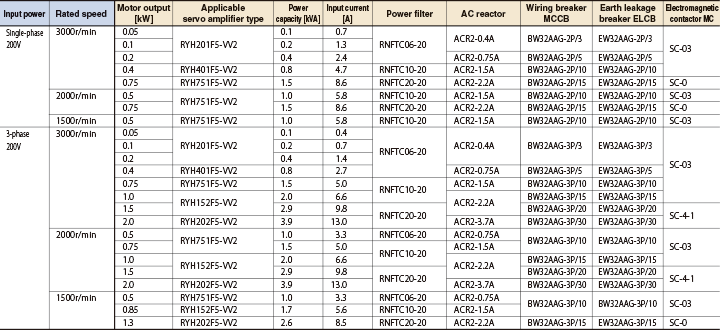

Peripheral equipment
