Familiar user interface
The user interface and ladder programming support SPB programming equivalent to a FLEX-PC Windows-compatible PC loader.
Support for full-keyboard operation is also handy for on-site debugging and maintenance. With a whopping 202 different instruction words, the possibilities for your programs are limited only by your imagination.
Compatible with the international standard IEC 61131-3 (JIS B 3503)
Program representations support the LD language, which is most standard. The ST and FBD programming languages are also supported. Programming in units of POU in which the structured design method is applicable can be performed.
Full-fledged programming environment
Programming allows all addresses to be specified, and allows off-line editing (edit and continue).
Support the Structured design and the parting that used to the FB (Function block).
Leverage your program assets

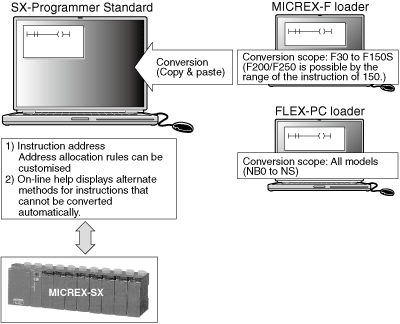

In SX mode, you can copy and paste your programs from our FLEX-PC series PLCs. On-line help describes alternate methods for circuits and instructions that cannot be pasted in. In N mode, use your program and comment files as-is.
Resume feature
When the software is started, the previous edit/monitor position is automatically displayed.
When you go on-line, monitoring starts at the position you were monitoring last time. When you are off-line, the system transitions to edit mode displaying the point you were editing last time.
Failure diagnostic function
Failure diagnosis is easy because you can analyze failure information while checking the configuration information.
Link with spreadsheet program
Directly copy comments edited/created in a spreadsheet program (Excel) into your program.

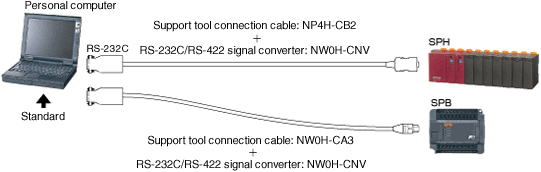

USB interface
The connection method using the full-speed USB (Universal Serial Bus) 1.1 has been added as a loader connection method.
Communication with the SPH300 (NP1PS-□□R), SPH300EX and SPH2000 can be performed at high speed using a commercial USB cable.
Data access to the user ROM
Projects can be downloaded from/uploaded to the user ROM card (compact flash card) supplied with SPH300 (NP1PS-□□R), SPH300EX or SPH2000. Also, data can be written into/read from the user ROM card.
Support also of SPB and FLEX-PC programming
Standard supports three types of programming (SPH, SPB, and FLEX-PC).
However, there is no SPH program compatibility between Standard and Expert (D300win).
Program editing can be performed by selecting SPB (N mode/SX mode), SPH, or FLEX-PC during file selection after activation.
Password function
By setting an access authentication password for on-line functions, operation of the PLC can be limited to three levels, i.e., level 1, level 2, and level 3.
Item | Specification | |
---|---|---|
Hardware | IBM-PC/AT compatible | |
CPU | Intel Pentium 233MHz or higher (350MHz or higher recommended) | |
Hard disk | Free space of 200M bytes or more | |
CD-ROM unit | 1 unit (x 4 speed or faster), media: ISO 9660 format | |
Memory capacity | 64M bytes or more (256M bytes or more recommended) | |
Keyboard | 101 keyboard | |
Mouse | USB mouse, bus mouse, or PS2 mouse | |
Indicator | 800 x 600-dots resolution or higher (1024 x 768-dots resolution or higher recommended) | |
Communication interface | RS-232C | 9600bps-57600kbps (default setup according to resource model selection) |
Ethernet | Possible | |
ISDN | Possible (analog port is used) | |
USB | Possible with V1.1 (Target CPU: NP1PS-□□R, SPH300EX and SPH2000) | |
P/PE-link | Possible | |
SX bus | Possible | |
FL-net | Possible | |
OS | Windows95/98/ME/2000/XP/WindowsNT4.0 | |
Portability | Depends on commercial mobile personal computer. | |
Environmental durability | Depends on environmental conditions of commercial personal computer. |
