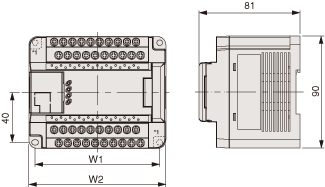

W2 | W1 | |
---|---|---|
20-point basic unit | 80 | 80 |
30point basic unit | 110 | 100 |
40point basic unit | 140 | 130 |
60point basic unit | 180 | 170 |
16point expansion unit | 64 | 54 |
32point expansion unit | 110 | 100 |
60point expansion unit | 180 | 170 |

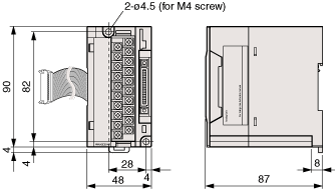

Note: The mounting hole of a basic unit/expansion unit of 60 point type is on four corners.
Other units has not the mounting hole on “ *1 ” part.

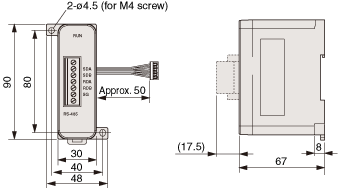

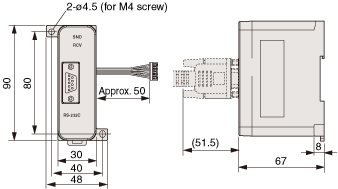

Note: When analog unit and basic unit are installed and connected together, the distance between them must be approx. 10 to 20 mm.
