Ideal for reducing control panel space.
External Dimensions (mm) | |||
---|---|---|---|
Width | Height | Depth | |
20 points basic unit | 80 | 90 | 81 |
30 points basic unit | 110 | 90 | 81 |
40 points basic unit | 140 | 90 | 81 |
60 points basic unit | 180 | 90 | 81 |
16 points expansion unit | 64 | 90 | 81 |
32 points expansion unit | 110 | 90 | 81 |
60 points expansion unit | 180 | 90 | 81 |
With one type of hardware, SPB is applicable to two programming languages:
Programming with rich memory
Memory capacity | ||||
---|---|---|---|---|
Porogram memory | Data memory | |||
Type | SX mode * 1 | N mode | SX mode | N mode |
20 points basic unit | 2Ksteps | 4Ksteps | 5Kwords 8.5Kwords |
9Kwords |
30 points basic unit | ||||
40 points basic unit | 4Ksteps | 8Ksteps | ||
60 points basic unit |
*1: There are Included the initiated value of the retain memory.
Ideal for small-size machines requiring fast processing.
Fast 0.44 µsec. per Sequence instruction and 2.19 µsec(N mode). and 1.50 µsec(SX mode). for Data instructions.
Many types of instructions allow ease of programming.
The program size can be reduced by effectively using a combination of instruction words.
SX mode: 202 types, N mode: 211 types.

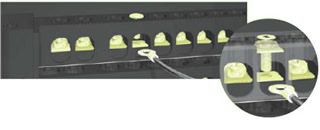

Use of the self-lifting terminal block - the terminals automatically pop up when unscrewed, reducing the wiring works and preventing less of screws. The finger protection structure ensures safety.
Allows program modification without interrupting machine operation.
All SPB models conform to the UL/cUL standards as well as the CE mark standard.
Two analog timers are built in for convenient fine-tuning and testing.
Communication adapters are available for RS-232C, RS-485, and simplified personal computer link connections.
The SPB can be connected to the POD via the loader port. No special communication unit is required.
Multi-range (voltage / current) adapted. 3 types of analog unit with detachable terminal blocks are added to the lineup.
Capable of analog control, such as temperature control by PID instruction.
