Auxiliary Power Supply System (APS)

Fuji Auxiliary Power Supply Line Up

Fuji's APS will be satisfied with various requirement.

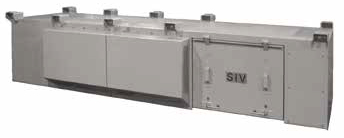

Large Capacity APS for DC Cars with 3-Level Inverter

  • Less acoustic noise and less EMI with 3-level inverter
  • Larger capacity with small size

Typical specifications ;

Input Voltage DC1500V
Output Voltage AC440V 3φ 50/60Hz
Output Capacity 120kVA 180kVA 210kVA 260kVA

APS for AC Cars with IGBT PWM Converter

  • More stable DC link voltage by using IGBT PWM converter

Typical specifications ;

Input Voltage AC440V DC1500V
Output Voltage AC100V 1φ 50/60Hz AC440V 3φ 50/60Hz
Output Capacity 20kVA 180kVA

Small Size and Light Weight APS for Small Cars

  • Medium frequency isolation system with forced-air cooling makes equipment smaller and lighter

Typical specifications ;

Input Voltage DC750V
Output Voltage AC440V 3φ 50/60Hz, DC100V
Output Capacity 70kVA 110kVA 140kVA

Ultra High Reliability APS with Stand-by Power Unit

  • APS with stand-by spare power unit. If the power unit fails, the equipment switches to the stand-by power unit and continue to supply auxiliary power

Typical specifications ;

Input Voltage DC1500V
Output Voltage AC440V 3φ 50/60Hz
Output Capacity 120kVA 180kVA 210kVA 260kVA

Auxiliary power supplies of Fuji Electric have been used in various environments in the world.

Examples of Supply Areas

Cold regions Kyiv Metro, Ukraine
Hokkaido Railway Company
Tropical zone Singapore Mass Rapid Transit
Americas Washington D.C. Metro
Europe Kyiv Metro, Ukraine
Asia East Japan Railway Company
African Continen South Africa
Australian Continent New South Wales (Roof Mount)

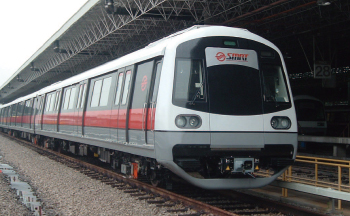

Singapore MRT

Examples of Specification

Car type (Supplied equipment) Input Output Maximum capacity
Electric car (Static inverter) DC1500V AC440V, 3φ 260kVA
DC750V AC380V, 3φ 130kVA
AC20/25kV AC440V, 3φ 180kVA
Diesel train (Engine generator) Engine generator for propulsion Variable speed generator DC24V 8kW※1
Constant speed generator AC440V, 3φ 25kVA※2
Passenger coach (Engine generator) Engine for generator AC440V, 3φ 440kVA※3

※1 Belt coupilng ※2 Hydrauilc coupling ※3 Directc oupling
