MICREX-SX SPH Series CPU Module SPH3300・SPH2200
Product information

Improves processing performance by increasing basic performance

Instruction execution speed

Significantly reduces various instruction execution times compared to existing models (SPH3000/2000/300).

SPH3300

SPH2200

Application execution performance

Significantly reduces application execution time by speeding up the CPU.

Sequence control applications

Motion control applications

Task execution cycle

Program memory: 40 Ksteps
10 axes with synchronization control

Note

The performance values indicated in this catalog are representative values that were measured using sample applications prepared by Fuji Electric and are not guaranteed values. Since performance may vary depending on the user’s application, memory usage, etc., please be sure to confirm the performance on actual equipment prior to use.

Full motion instruction support

Supports as standard built-in motion function blocks (FB) and 64-bit operation instructions, which were supported by the SPH3000D. Makes it easy to create high-speed, high-precision motion control applications.

PTP positioning

2-axes linear interpolation

Flying shear control
Main axis control (speed control)

No. of controlled axes

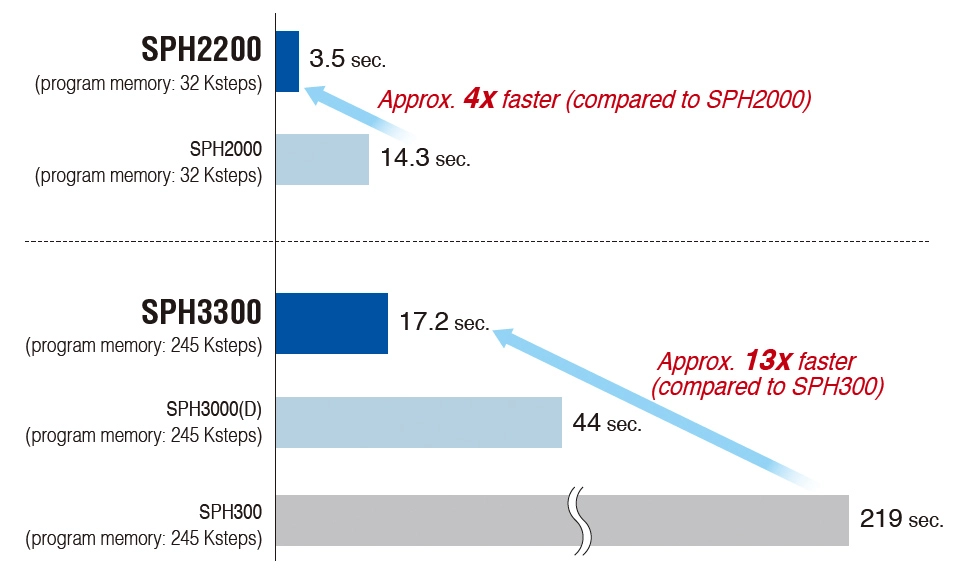

Application download performance

Compared to existing models, the SPH3300 and SPH2200 have greatly improved communication performance. Significantly reduces application download speeds.

Contributes to improving productivity

Logging function

It saves CPU module data at any desired timing without affecting the scan time.
Since the saved CPU module status can be checked as data in chronological order on the waveform display, it can be used in troubleshooting analysis, something that has been difficult to do after the trouble.
The logging function does not change the application execution cycle and does not affect the operation of machines and equipment.

Waveform monitor

This function displays waveforms with time axis and variable values using the data collected during logging operations.

SX monitor

This function monitors and displays user programs using the data collected during logging operations.
It links with the waveform monitor to playback pre- and post-trigger timings on the monitor display.
It helps improve start-up efficiency during debugging and is useful for quickly resolving errors.

Reduces the time and effort of PLC migration

Model transition function

This is a tool for migrating existing PLC project to the SPH2200 and 3300.
User can easily migrate PLC project without changing system definition or resource settings.

SPH2200 and 3300 series lineup
(recommended types for replacing SPH2000 and 3000 series)
