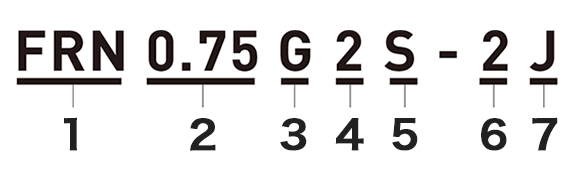

How to Read the Inverter Model

How to Read the Inverter Model
1 Code Series Name
FRN FRENIC Series
2 Code Applicable Motor Rating
0.4
|
630		 0.4kW
|
630kW,710kW
3 Code Applicable Range
G High Performance,
Multifunctional Type
4 Code Order of Development
2 2 Series
5 Code Structure
S Standard (Basic Type)
E EMC filter Built-In Type
P Zero-phase Built-In Reactor Type
H DCR Built-In Type
6 Code Input Power Source
2 Three-phase 200V
4 Three-phase 400V
7 Code Destination
J Japan

Three-phase 200V

HHD Specification (High carrier frequency Heavy Duty):200%-3s, 150%-1min

Basic Type

Model Standard Applicable Motor［kW］
HHD
FRN0.4G2S-2J 0.4
FRN0.75G2S-2J 0.75
FRN1.5G2S-2J 1.5
FRN2.2G2S-2J 2.2
FRN3.7G2S-2J 3.7
FRN5.5G2S-2J 5.5
FRN7.5G2S-2J 7.5
FRN11G2S-2J 11
FRN15G2S-2J 15
FRN18.5G2S-2J 18.5
FRN22G2S-2J 22
FRN30G2S-2J 30
FRN37G2S-2J 37
FRN45G2S-2J 45
FRN55G2S-2J 55
FRN75G2S-2J 75
FRN90G2S-2J 90

EMC Filter Built‑In Type

Model Standard Applicable Motor［kW］
HHD
FRN0.4G2E-2J 0.4
FRN0.75G2E-2J 0.75
FRN1.5G2E-2J 1.5
FRN2.2G2E-2J 2.2
FRN3.7G2E-2J 3.7
FRN5.5G2E-2J 5.5
FRN7.5G2E-2J 7.5
FRN11G2E-2J 11
FRN15G2E-2J 15
FRN18.5G2E-2J 18.5
FRN22G2E-2J 22
FRN30G2E-2J 30
FRN37G2E-2J 37
FRN45G2E-2J 45
FRN55G2E-2J 55
FRN75G2E-2J 75
FRN90G2E-2J 90

Zero‑Phase Reactor Built‑In Type

Model Standard Applicable Motor［kW］
HHD
FRN1.5G2P-2J 1.5
FRN2.2G2P-2J 2.2
FRN3.7G2P-2J 3.7
FRN5.5G2P-2J 5.5
FRN7.5G2P-2J 7.5
FRN11G2P-2J 11
FRN15G2P-2J 15
FRN18.5G2P-2J 18.5
FRN22G2P-2J 22
FRN30G2P-2J 30
FRN37G2P-2J 37
FRN45G2P-2J 45
FRN55G2P-2J 55
FRN75G2P-2J 75

DCR Built‑In Type

Model Standard Applicable Motor［kW］
HHD
FRN30G2H-2J 30
FRN37G2H-2J 37
FRN45G2H-2J 45
FRN55G2H-2J 55

Three-phase 400V

HHD Specification (High carrier frequency Heavy Duty):200%-3s, 150%-1min

Basic Type

Model Standard Applicable Motor［kW］
HHD
FRN0.4G2S-4J 0.4
FRN0.75G2S-4J 0.75
FRN1.5G2S-4J 1.5
FRN2.2G2S-4J 2.2
FRN3.7G2S-4J 3.7
FRN5.5G2S-4J 5.5
FRN7.5G2S-4J 7.5
FRN11G2S-4J 11
FRN15G2S-4J 15
FRN18.5G2S-4J 18.5
FRN22G2S-4J 22
FRN30G2S-4J 30
FRN37G2S-4J 37
FRN45G2S-4J 45
FRN55G2S-4J 55
FRN75G2S-4J 75
FRN90G2S-4J 90
FRN110G2S-4J 110
FRN132G2S-4J 132
FRN160G2S-4J 160
FRN200G2S-4J 200
FRN220G2S-4J 220
FRN280G2S-4J 280
FRN315G2S-4J 315
FRN355G2S-4J 355
FRN400G2S-4J 400
FRN500G2S-4J 500
FRN630G2S-4J 630

EMC Filter Built‑In Type

Model Standard Applicable Motor［kW］
HHD
FRN0.4G2E-4J 0.4
FRN0.75G2E-4J 0.75
FRN1.5G2E-4J 1.5
FRN2.2G2E-4J 2.2
FRN3.7G2E-4J 3.7
FRN5.5G2E-4J 5.5
FRN7.5G2E-4J 7.5
FRN11G2E-4J 11
FRN15G2E-4J 15
FRN18.5G2E-4J 18.5
FRN22G2E-4J 22
FRN30G2E-4J 30
FRN37G2E-4J 37
FRN45G2E-4J 45
FRN55G2E-4J 55
FRN75G2E-4J 75
FRN90G2E-4J 90
FRN110G2E-4J 110
FRN132G2E-4J 132
FRN160G2E-4J 160
FRN200G2E-4J 200
FRN220G2E-4J 220
FRN280G2E-4J 280
FRN315G2E-4J 315
FRN355G2E-4J 355
FRN400G2E-4J 400
FRN500G2E-4J 500
FRN630G2E-4J 630

Zero‑Phase Reactor Built‑In Type

Model Standard Applicable Motor［kW］
HHD
FRN1.5G2P-4J 1.5
FRN2.2G2P-4J 2.2
FRN3.7G2P-4J 3.7
FRN5.5G2P-4J 5.5
FRN7.5G2P-4J 7.5
FRN11G2P-4J 11
FRN15G2P-4J 15
FRN18.5G2P-4J 18.5
FRN22G2P-4J 22
FRN30G2P-4J 30
FRN37G2P-4J 37
FRN45G2P-4J 45
FRN55G2P-4J 55
FRN75G2P-4J 75

DCR Built‑In Type

Model Standard Applicable Motor［kW］
HHD
FRN30G2H-4J 30
FRN37G2H-4J 37
FRN45G2H-4J 45
FRN55G2H-4J 55
FRENIC-MEGA (G2) TOP
FRENIC-MEGA (G2) TOP
Product Information
Product Information
Variations
Variations
Specifications
Specifications
External Dimensions
External Dimensions
Download documents
Download documents

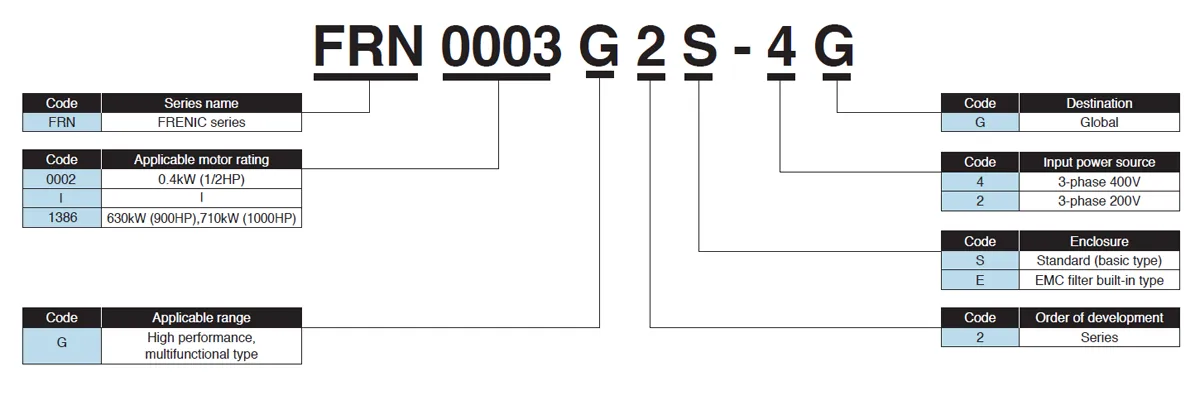

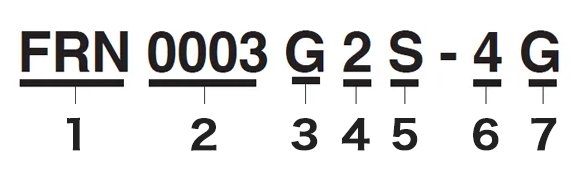

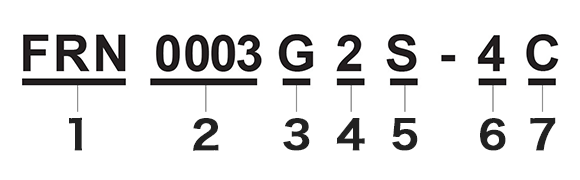

How to Read the Inverter Model

How to Read the Inverter Model
1 Code Series Name
FRN FRENIC Series
2 Code Applicable Motor Rating
0002
|
1480		 0.4kW(1/2HP)
|
630kW(900HP),
710kW(1000HP)
HD：710kW(1200HP)
ND：800kW(1300HP)
3 Code Applicable Range
G High Performance,
Multifunctional Type
4 Code Order of Development
2 2 Series
5 Code Structure
S Standard (Basic Type)
E EMC filter Built-In Type
6 Code Input Power Source
2 Three-phase 200V
4 Three-phase 400V
7 Code Destination
G Global

Three-phase 200V

HND Specification (High carrier frequency Normal Duty):120%-1min
HHD Specification (High carrier frequency Heavy Duty):200%-3s, 150%-1min

Basic Type

Model Standard Applicable Motor［kW］
HND HHD
FRN0003G2S-2G - 0.4(1/2)
FRN0005G2S-2G - 0.75(1)
FRN0008G2S-2G - 1.5(2)
FRN0011G2S-2G - 2.2(3)
FRN0018G2S-2G - 3.7(5)
FRN0032G2S-2G 7.5(10) 5.5(7.5)
FRN0046G2S-2G 11(15) 7.5(10)
FRN0059G2S-2G 15(20) 11(15)
FRN0075G2S-2G 18.5(25) 15(20)
FRN0088G2S-2G 22(30) 18.5(25)
FRN0115G2S-2G 30(40) 22(30)
FRN0146G2S-2G 37(50) 30(40)
FRN0180G2S-2G 45(60) 37(50)
FRN0215G2S-2G 55(75) 45(60)
FRN0288G2S-2G 75(100) 55(75)
FRN0346G2S-2G 90(125) 75(100)
FRN0432G2S-2G 110(150) 90(125)

Three-phase 400V

ND Specification (Normal Duty): 120% for 1 minute
HD Specification (Heavy Duty): 150% for 1 minute
HND Specification (High carrier frequency Normal Duty): 120%-1min
HHD Specification (High carrier frequency Heavy Duty): 200%-3s, 150%‒1min

Basic Type

Model Standard Applicable Motor［kW］
ND HD HND HHD
FRN0002G2S-4G - - - 0.4(1/2)
FRN0003G2S-4G - - - 0.75(1)
FRN0004G2S-4G - - - 1.5(2)
FRN0006G2S-4G - - - 2.2(3)
FRN0009G2S-4G - - - 3.7(5)
FRN0018G2S-4G - - 7.5(10) 5.5(7.5)
FRN0023G2S-4G - - 11(15) 7.5(10)
FRN0035G2S-4G - - 15(20) 11(15)
FRN0041G2S-4G - - 18.5(25) 15(20)
FRN0045G2S-4G - - 22(30) 18.5(25)
FRN0060G2S-4G - - 30(40) 22(30)
FRN0085G2S-4G 45(60) 37(50) 37(50) 30(40)
FRN0105G2S-4G 55(75) 45(60) 45(60) 37(50)
FRN0139G2S-4G 75(100) 55(75) 55(75) 45(60)
FRN0179G2S-4G 90(125) 75(100) 75(100) 55(75)
FRN0217G2S-4G 110(150) 90(125) 110(150) 75(100)
FRN0261G2S-4G 132(200) 110(150) 132(200) 90(125)
FRN0290G2S-4G 160(250) 132(200) 160(250) 110(150)
FRN0376G2S-4G 200(300) 160(250) 200(300) 132(200)
FRN0431G2S-4G 220(350) 200(300) 220(350) 160(250)
FRN0547G2S-4G 280(400) 220(350) 280(400) 200(300)
FRN0610G2S-4G 315(450) 250(400) 315(450) 220(350)
FRN0739G2S-4G 400(600) 315(450) 355(500) 280(400)
FRN0840G2S-4G 450(700) 355(500) 400(600) 315(450)
FRN1039G2S-4G 560(900) 400(600) 500(800) 355(500)
FRN1169G2S-4G 630(900) 450(700) 560(900) 400(600)
FRN1385G2S-4G 710(1200) 560(900) 630(900) 500(800)
FRN1480G2S-4G 800(1300) 710(1200) 710(1200) 630(900)

EMC Filter Built‑In Type

Model Standard Applicable Motor［kW］
ND HD HND HHD
FRN0002G2E-4G - - 0.4(1/2) -
FRN0003G2E-4G - - 0.75(1) -
FRN0004G2E-4G - - 1.5(2) -
FRN0006G2E-4G - - 2.2(3) -
FRN0009G2E-4G - - 3.7(5) -
FRN0018G2E-4G - - 5.5(7.5) 7.5(10)
FRN0023G2E-4G - - 7.5(10) 11(15)
FRN0035G2E-4G - - 11(15) 15(20)
FRN0041G2E-4G - - 15(20) 18.5(25)
FRN0045G2E-4G - - 18.5(25) 22(30)
FRN0060G2E-4G - - 22(30) 30(40)
FRN0085G2E-4G 37(50) 45(60) 30(40) 37(50)
FRN0105G2E-4G 45(60) 55(75) 37(50) 45(60)
FRN0139G2E-4G 55(75) 75(100) 45(60) 55(75)
FRN0179G2E-4G 75(100) 90(125) 55(75) 75(100)
FRN0217G2E-4G 90(125) 110(150) 75(100) 110(150)
FRN0261G2E-4G 110(150) 132(200) 90(125) 132(200)
FRN0290G2E-4G 132(200) 160(250) 110(150) 160(250)
FRN0376G2E-4G 160(250) 200(300) 132(200) 200(300)
FRN0431G2E-4G 200(300) 220(350) 160(250) 220(350)
FRN0547G2E-4G 220(350) 280(400) 200(300) 280(400)
FRN0610G2E-4G 250(400) 315(450) 220(350) 315(450)
FRN0739G2E-4G 315(450) 400(600) 280(400) 355(500)
FRN0840G2E-4G 355(500) 450(700) 315(450) 400(600)
FRN1039G2E-4G 400(600) 560(900) 355(500) 500(800)
FRN1169G2E-4G 450(700) 630(900) 400(600) 560(900)
FRN1385G2E-4G 560(900) 710(1200) 500(800) 630(900)
FRN1480G2E-4G 710(1200) 800(1300) 630(900) 710(1200)
FRENIC-MEGA (G2) TOP
FRENIC-MEGA (G2) TOP
Product Information
Product Information
Variations
Variations
Specifications
Specifications
External Dimensions
External Dimensions
Download documents
Download documents

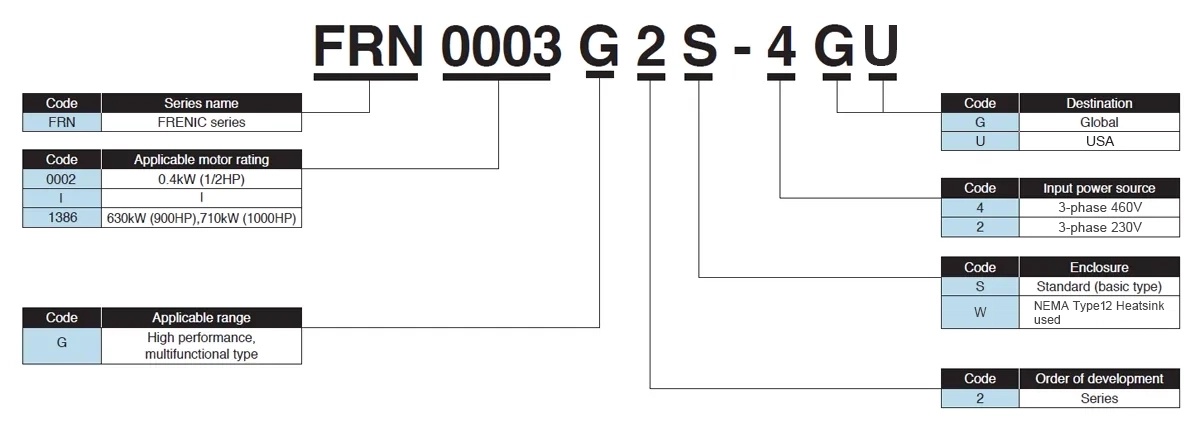

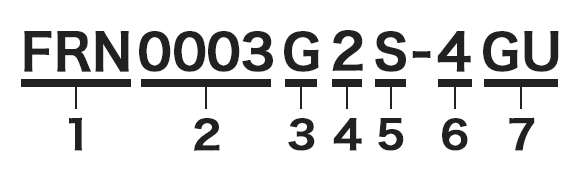

How to Read the Inverter Model

How to Read the Inverter Model
1 Code Series Name
FRN FRENIC Series
2 Code Applicable Motor Rating
0002
|
1480		 0.4kW(1/2HP)
|
630kW(900HP),
710kW(1000HP)
HD：710kW(1200HP)
ND：800kW(1300HP)
3 Code Applicable Range
G High Performance,
Multifunctional Type
4 Code Order of Development
2 2 Series
5 Code Structure
S Standard (Basic Type)
W NEMA Type12 Heatsink used
6 Code Input Power Source
2 Three-phase 230V
4 Three-phase 460V
7 Code Destination
GU North America

Three-phase 230V

HND Specification (High carrier frequency Normal Duty):120%-1min
HHD Specification (High carrier frequency Heavy Duty):200%-3s, 150%-1min

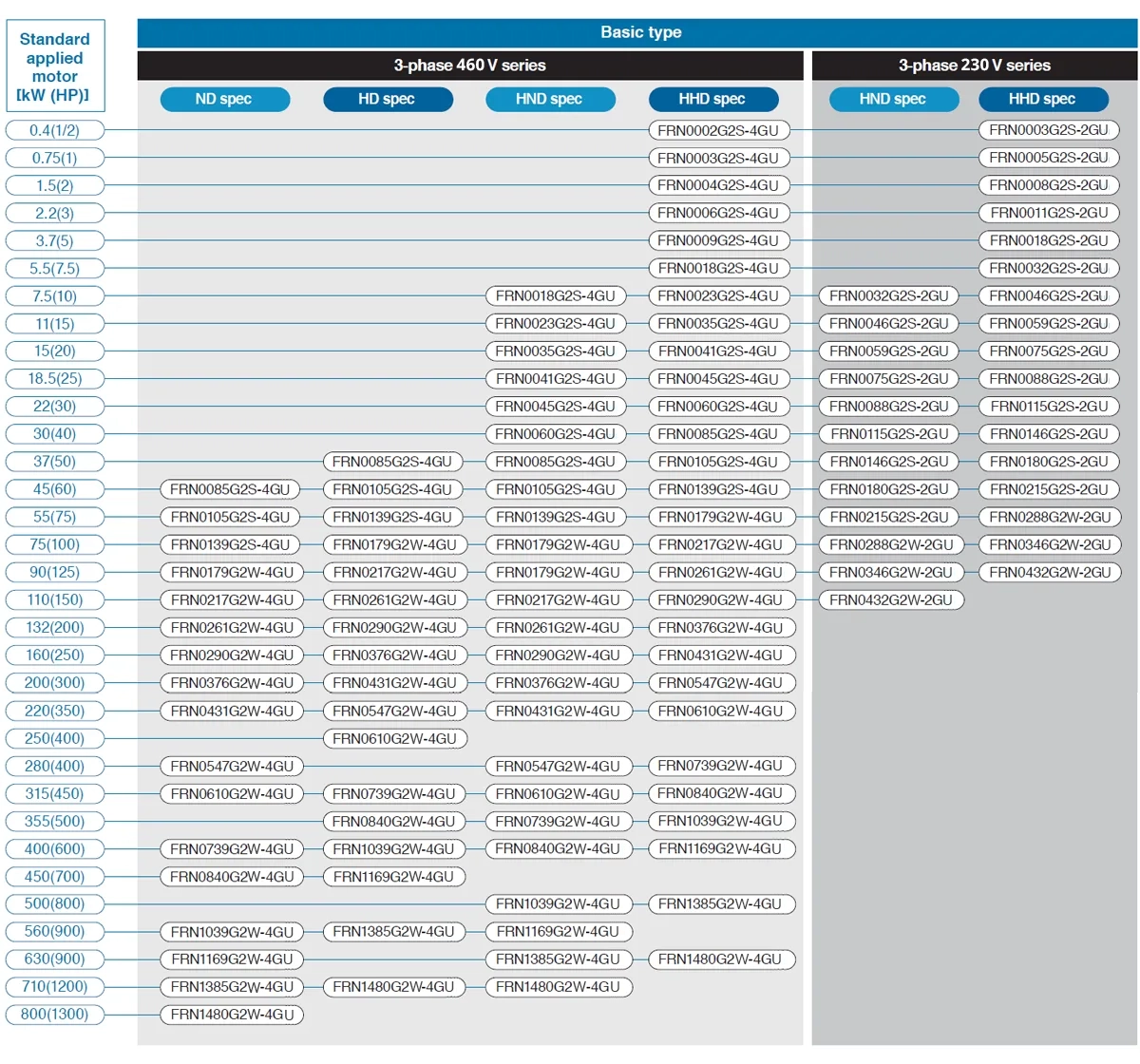

Basic Type

Model Standard Applicable Motor［kW］
HND HHD
FRN0003G2S-2GU - 0.4(1/2)
FRN0005G2S-2GU - 0.75(1)
FRN0008G2S-2GU - 1.5(2)
FRN0011G2S-2GU - 2.2(3)
FRN0018G2S-2GU - 3.7(5)
FRN0032G2S-2GU 7.5(10) 5.5(7.5)
FRN0046G2S-2GU 11(15) 7.5(10)
FRN0059G2S-2GU 15(20) 11(15)
FRN0075G2S-2GU 18.5(25) 15(20)
FRN0088G2S-2GU 22(30) 18.5(25)
FRN0115G2S-2GU 30(40) 22(30)
FRN0146G2S-2GU 37(50) 30(40)
FRN0180G2S-2GU 45(60) 37(50)
FRN0215G2S-2GU 55(75) 45(60)
FRN0288G2S-2GU 75(100) 55(75)
FRN0346G2S-2GU 90(125) 75(100)
FRN0432G2S-2GU 110(150) 90(125)

NEMA Type12 Heatsink used

Model Standard Applicable Motor［kW］(HP)
HND HHD
FRN0288G2W-2GU 75(100) 55(75)
FRN0346G2W-2GU 90(125) 75(100)
FRN0432G2W-2GU 110(150) 90(125)

Three-phase 460V

ND Specification (Normal Duty): 120% for 1 minute
HD Specification (Heavy Duty): 150% for 1 minute
HND Specification (High carrier frequency Normal Duty): 120%-1min
HHD Specification (High carrier frequency Heavy Duty): 200%-3s, 150%‒1min

Basic Type

Model Standard Applicable Motor［kW］
ND HD HND HHD
FRN0002G2S-4GU - - - 0.4(1/2)
FRN0003G2S-4GU - - - 0.75(1)
FRN0004G2S-4GU - - - 1.5(2)
FRN0006G2S-4GU - - - 2.2(3)
FRN0009G2S-4GU - - - 3.7(5)
FRN0018G2S-4GU - - 7.5(10) 5.5(7.5)
FRN0023G2S-4GU - - 11(15) 7.5(10)
FRN0035G2S-4GU - - 15(20) 11(15)
FRN0041G2S-4GU - - 18.5(25) 15(20)
FRN0045G2S-4GU - - 22(30) 18.5(25)
FRN0060G2S-4GU - - 30(40) 22(30)
FRN0085G2S-4GU 45(60) 37(50) 37(50) 30(40)
FRN0105G2S-4GU 55(75) 45(60) 45(60) 37(50)
FRN0139G2S-4GU 75(100) 55(75) 55(75) 45(60)
FRN0179G2S-4GU 90(125) 75(100) 75(100) 55(75)
FRN0217G2S-4GU 110(150) 90(125) 110(150) 75(100)
FRN0261G2S-4GU 132(200) 110(150) 132(200) 90(125)
FRN0290G2S-4GU 160(250) 132(200) 160(250) 110(150)
FRN0376G2S-4GU 200(300) 160(250) 200(300) 132(200)
FRN0431G2S-4GU 220(350) 200(300) 220(350) 160(250)
FRN0547G2S-4GU 280(400) 220(350) 280(400) 200(300)
FRN0610G2S-4GU 315(450) 250(400) 315(450) 220(350)
FRN0739G2S-4GU 400(600) 315(450) 355(500) 280(400)
FRN0840G2S-4GU 450(700) 355(500) 400(600) 315(450)
FRN1039G2S-4GU 560(900) 400(600) 500(800) 355(500)
FRN1169G2S-4GU 630(900) 450(700) 560(900) 400(600)
FRN1385G2S-4GU 710(1200) 560(900) 630(900) 500(800)
FRN1480G2S-4GU 800(1300) 710(1200) 710(1200) 630(900)

NEMA Type12 Heatsink used

Model Standard Applicable Motor［kW］(HP)
ND HD HND HHD
FRN0179G2W-4GU 90(125) 75(100) 75(100) 55(75)
FRN0217G2W-4GU 110(150) 90(150) 110(150) 75(100)
FRN0261G2W-4GU 132(200) 110(150) 132(200) 90(125)
FRN0376G2W-4GU 200(300) 160(250) 200(300) 132(200)
FRN0431G2W-4GU 220(350) 200(300) 220(350) 160(250)
FRN0547G2W-4GU 280(450) 220(350) 280(450) 200(300)
FRN0610G2W-4GU 315(500) 250(400) 315(500) 220(350)
FRN0840G2W-4GU 450(700) 355(500) 400(600) 315(450)
FRN1039G2W-4GU 560(900) 400(600) 500(800) 355(500)
FRN1169G2W-4GU 630(900) 450(700) 560(900) 400(600)
FRN1480G2W-4GU 800(1300) 710(1200) 710(1200) 630(900)
FRENIC-MEGA (G2) TOP
FRENIC-MEGA (G2) TOP
Product Information
Product Information
Variations
Variations
Specifications
Specifications
External Dimensions
External Dimensions
Download documents
Download documents

How to Read the Inverter Model

How to Read the Inverter Model
1 Code Series Name
FRN FRENIC Series
2 Code Applicable Motor Rating
0002
|
1480		 0.4kW(1/2HP)
|
630kW(900HP),
710kW(1000HP)
HD：710kW(1200HP)
ND：800kW(1300HP)
3 Code Applicable Range
G High Performance,
Multifunctional Type
4 Code Order of Development
2 2 Series
5 Code Structure
S Standard (Basic Type)
E EMC filter Built-In Type
6 Code Input Power Source
2 Three-phase 200V
4 Three-phase 400V
7 Code Destination
G Global

Three-phase 200V

HND Specification (High carrier frequency Normal Duty):120%-1min
HHD Specification (High carrier frequency Heavy Duty):200%-3s, 150%-1min

Basic Type

Model Standard Applicable Motor［kW］
HND HHD
FRN0003G2S-2G - 0.4(1/2)
FRN0005G2S-2G - 0.75(1)
FRN0008G2S-2G - 1.5(2)
FRN0011G2S-2G - 2.2(3)
FRN0018G2S-2G - 3.7(5)
FRN0032G2S-2G 7.5(10) 5.5(7.5)
FRN0046G2S-2G 11(15) 7.5(10)
FRN0059G2S-2G 15(20) 11(15)
FRN0075G2S-2G 18.5(25) 15(20)
FRN0088G2S-2G 22(30) 18.5(25)
FRN0115G2S-2G 30(40) 22(30)
FRN0146G2S-2G 37(50) 30(40)
FRN0180G2S-2G 45(60) 37(50)
FRN0215G2S-2G 55(75) 45(60)
FRN0288G2S-2G 75(100) 55(75)
FRN0346G2S-2G 90(125) 75(100)
FRN0432G2S-2G 110(150) 90(125)

Three-phase 400V

ND Specification (Normal Duty): 120% for 1 minute
HD Specification (Heavy Duty): 150% for 1 minute
HND Specification (High carrier frequency Normal Duty): 120%-1min
HHD Specification (High carrier frequency Heavy Duty): 200%-3s, 150%‒1min

Basic Type

Model Standard Applicable Motor［kW］
ND HD HND HHD
FRN0002G2S-4G - - - 0.4(1/2)
FRN0003G2S-4G - - - 0.75(1)
FRN0004G2S-4G - - - 1.5(2)
FRN0006G2S-4G - - - 2.2(3)
FRN0009G2S-4G - - - 3.7(5)
FRN0018G2S-4G - - 7.5(10) 5.5(7.5)
FRN0023G2S-4G - - 11(15) 7.5(10)
FRN0035G2S-4G - - 15(20) 11(15)
FRN0041G2S-4G - - 18.5(25) 15(20)
FRN0045G2S-4G - - 22(30) 18.5(25)
FRN0060G2S-4G - - 30(40) 22(30)
FRN0085G2S-4G 45(60) 37(50) 37(50) 30(40)
FRN0105G2S-4G 55(75) 45(60) 45(60) 37(50)
FRN0139G2S-4G 75(100) 55(75) 55(75) 45(60)
FRN0179G2S-4G 90(125) 75(100) 75(100) 55(75)
FRN0217G2S-4G 110(150) 90(125) 110(150) 75(100)
FRN0261G2S-4G 132(200) 110(150) 132(200) 90(125)
FRN0290G2S-4G 160(250) 132(200) 160(250) 110(150)
FRN0376G2S-4G 200(300) 160(250) 200(300) 132(200)
FRN0431G2S-4G 220(350) 200(300) 220(350) 160(250)
FRN0547G2S-4G 280(400) 220(350) 280(400) 200(300)
FRN0610G2S-4G 315(450) 250(400) 315(450) 220(350)
FRN0739G2S-4G 400(600) 315(450) 355(500) 280(400)
FRN0840G2S-4G 450(700) 355(500) 400(600) 315(450)
FRN1039G2S-4G 560(900) 400(600) 500(800) 355(500)
FRN1169G2S-4G 630(900) 450(700) 560(900) 400(600)
FRN1385G2S-4G 710(1200) 560(900) 630(900) 500(800)
FRN1480G2S-4G 800(1300) 710(1200) 710(1200) 630(900)

EMC Filter Built‑In Type

Model Standard Applicable Motor［kW］
ND HD HND HHD
FRN0002G2E-4G - - 0.4(1/2) -
FRN0003G2E-4G - - 0.75(1) -
FRN0004G2E-4G - - 1.5(2) -
FRN0006G2E-4G - - 2.2(3) -
FRN0009G2E-4G - - 3.7(5) -
FRN0018G2E-4G - - 5.5(7.5) 7.5(10)
FRN0023G2E-4G - - 7.5(10) 11(15)
FRN0035G2E-4G - - 11(15) 15(20)
FRN0041G2E-4G - - 15(20) 18.5(25)
FRN0045G2E-4G - - 18.5(25) 22(30)
FRN0060G2E-4G - - 22(30) 30(40)
FRN0085G2E-4G 37(50) 45(60) 30(40) 37(50)
FRN0105G2E-4G 45(60) 55(75) 37(50) 45(60)
FRN0139G2E-4G 55(75) 75(100) 45(60) 55(75)
FRN0179G2E-4G 75(100) 90(125) 55(75) 75(100)
FRN0217G2E-4G 90(125) 110(150) 75(100) 110(150)
FRN0261G2E-4G 110(150) 132(200) 90(125) 132(200)
FRN0290G2E-4G 132(200) 160(250) 110(150) 160(250)
FRN0376G2E-4G 160(250) 200(300) 132(200) 200(300)
FRN0431G2E-4G 200(300) 220(350) 160(250) 220(350)
FRN0547G2E-4G 220(350) 280(400) 200(300) 280(400)
FRN0610G2E-4G 250(400) 315(450) 220(350) 315(450)
FRN0739G2E-4G 315(450) 400(600) 280(400) 355(500)
FRN0840G2E-4G 355(500) 450(700) 315(450) 400(600)
FRN1039G2E-4G 400(600) 560(900) 355(500) 500(800)
FRN1169G2E-4G 450(700) 630(900) 400(600) 560(900)
FRN1385G2E-4G 560(900) 710(1200) 500(800) 630(900)
FRN1480G2E-4G 710(1200) 800(1300) 630(900) 710(1200)
FRENIC-MEGA (G2) TOP
FRENIC-MEGA (G2) TOP
Product Information
Product Information
Variations
Variations
Specifications
Specifications
External Dimensions
External Dimensions
Download documents
Download documents

How to Read the Inverter Model

How to Read the Inverter Model
1 Code Series Name
FRN FRENIC Series
2 Code Applicable Motor Rating
0002
|
1480		 0.4kW
|
710kW
3 Code Applicable Range
G High Performance,
Multifunctional Type
4 Code Order of Development
2 2 Series
5 Code Structure
S Standard (Basic Type)
6 Code Input Power Source
4 Three-phase 380V
7 Code Destination
C China

Three-phase 380V

ND Specification（Normal Duty）:120%-1min
HD Specification（Heavy Duty）:150%-1min
HND Specification（High carrier frequency Normal Duty）:120%-1min
HHD Specification（High carrier frequency Heavy Duty）:200%-3s, 150%-1min

Basic Type

Model Standard Applicable Motor［kW］
ND HD HND HHD
FRN0002G2S-4C - - - 0.4
FRN0003G2S-4C - - - 0.75
FRN0004G2S-4C - - - 1.5
FRN0006G2S-4C - - - 2.2
FRN0009G2S-4C - - - 3.7
FRN0018G2S-4C - - 7.5 5.5
FRN0023G2S-4C - - 11 7.5
FRN0035G2S-4C - - 15 11
FRN0041G2S-4C - - 18.5 15
FRN0045G2S-4C - - 22 18.5
FRN0060G2S-4C - - 30 22
FRN0085G2S-4C 45 37 37 30
FRN0105G2S-4C 55 45 45 37
FRN0139G2S-4C 75 55 55 45
FRN0179G2S-4C 90 75 75 90 55
FRN0217G2S-4C 110 90 110 75
FRN0261G2S-4C 132 110 132 90
FRN0290G2S-4C 160 132 160 110
FRN0376G2S-4C 200 160 200 132
FRN0431G2S-4C 220 200 220 160
FRN0547G2S-4C 280 220 280 200
FRN0610G2S-4C 315 250 315 220
FRN0739G2S-4C 400 315 355 280
FRN0840G2S-4C 450 355 400 315
FRN1039G2S-4C 560 400 500 355
FRN1169G2S-4C 630 450 560 400
FRN1385G2S-4C 710 560 630 500
FRN1480G2S-4C 800 710 710 630
FRENIC-MEGA (G2) TOP
FRENIC-MEGA (G2) TOP
Product Information
Product Information
Variations
Variations
Specifications
Specifications
External Dimensions
External Dimensions
Download documents
Download documents

How to Read the Inverter Model

How to Read the Inverter Model
1 Code Series Name
FRN FRENIC Series
2 Code Applicable Motor Rating
0.4
|
630		 0.4kW
|
630kW,710kW
3 Code Applicable Range
G High Performance,
Multifunctional Type
4 Code Order of Development
2 2 Series
5 Code Structure
S Standard (Basic Type)
E EMC filter Built-In Type
P Zero-phase Built-In Reactor Type
H DCR Built-In Type
6 Code Input Power Source
2 Three-phase 200V
4 Three-phase 400V
7 Code Destination
J Japan

Three-phase 200V

HHD Specification (High carrier frequency Heavy Duty):200%-3s, 150%-1min

Basic Type

Model Standard Applicable Motor［kW］
HHD
FRN0.4G2S-2J 0.4
FRN0.75G2S-2J 0.75
FRN1.5G2S-2J 1.5
FRN2.2G2S-2J 2.2
FRN3.7G2S-2J 3.7
FRN5.5G2S-2J 5.5
FRN7.5G2S-2J 7.5
FRN11G2S-2J 11
FRN15G2S-2J 15
FRN18.5G2S-2J 18.5
FRN22G2S-2J 22
FRN30G2S-2J 30
FRN37G2S-2J 37
FRN45G2S-2J 45
FRN55G2S-2J 55
FRN75G2S-2J 75
FRN90G2S-2J 90

EMC Filter Built‑In Type

Model Standard Applicable Motor［kW］
HHD
FRN0.4G2E-2J 0.4
FRN0.75G2E-2J 0.75
FRN1.5G2E-2J 1.5
FRN2.2G2E-2J 2.2
FRN3.7G2E-2J 3.7
FRN5.5G2E-2J 5.5
FRN7.5G2E-2J 7.5
FRN11G2E-2J 11
FRN15G2E-2J 15
FRN18.5G2E-2J 18.5
FRN22G2E-2J 22
FRN30G2E-2J 30
FRN37G2E-2J 37
FRN45G2E-2J 45
FRN55G2E-2J 55
FRN75G2E-2J 75
FRN90G2E-2J 90

Zero‑Phase Reactor Built‑In Type

Model Standard Applicable Motor［kW］
HHD
FRN1.5G2P-2J 1.5
FRN2.2G2P-2J 2.2
FRN3.7G2P-2J 3.7
FRN5.5G2P-2J 5.5
FRN7.5G2P-2J 7.5
FRN11G2P-2J 11
FRN15G2P-2J 15
FRN18.5G2P-2J 18.5
FRN22G2P-2J 22
FRN30G2P-2J 30
FRN37G2P-2J 37
FRN45G2P-2J 45
FRN55G2P-2J 55
FRN75G2P-2J 75

DCR Built‑In Type

Model Standard Applicable Motor［kW］
HHD
FRN30G2H-2J 30
FRN37G2H-2J 37
FRN45G2H-2J 45
FRN55G2H-2J 55

Three-phase 400V

HHD Specification (High carrier frequency Heavy Duty):200%-3s, 150%-1min

Basic Type

Model Standard Applicable Motor［kW］
HHD
FRN0.4G2S-4J 0.4
FRN0.75G2S-4J 0.75
FRN1.5G2S-4J 1.5
FRN2.2G2S-4J 2.2
FRN3.7G2S-4J 3.7
FRN5.5G2S-4J 5.5
FRN7.5G2S-4J 7.5
FRN11G2S-4J 11
FRN15G2S-4J 15
FRN18.5G2S-4J 18.5
FRN22G2S-4J 22
FRN30G2S-4J 30
FRN37G2S-4J 37
FRN45G2S-4J 45
FRN55G2S-4J 55
FRN75G2S-4J 75
FRN90G2S-4J 90
FRN110G2S-4J 110
FRN132G2S-4J 132
FRN160G2S-4J 160
FRN200G2S-4J 200
FRN220G2S-4J 220
FRN280G2S-4J 280
FRN315G2S-4J 315
FRN355G2S-4J 355
FRN400G2S-4J 400
FRN500G2S-4J 500
FRN630G2S-4J 630

EMC Filter Built‑In Type

Model Standard Applicable Motor［kW］
HHD
FRN0.4G2E-4J 0.4
FRN0.75G2E-4J 0.75
FRN1.5G2E-4J 1.5
FRN2.2G2E-4J 2.2
FRN3.7G2E-4J 3.7
FRN5.5G2E-4J 5.5
FRN7.5G2E-4J 7.5
FRN11G2E-4J 11
FRN15G2E-4J 15
FRN18.5G2E-4J 18.5
FRN22G2E-4J 22
FRN30G2E-4J 30
FRN37G2E-4J 37
FRN45G2E-4J 45
FRN55G2E-4J 55
FRN75G2E-4J 75
FRN90G2E-4J 90
FRN110G2E-4J 110
FRN132G2E-4J 132
FRN160G2E-4J 160
FRN200G2E-4J 200
FRN220G2E-4J 220
FRN280G2E-4J 280
FRN315G2E-4J 315
FRN355G2E-4J 355
FRN400G2E-4J 400
FRN500G2E-4J 500
FRN630G2E-4J 630

Zero‑Phase Reactor Built‑In Type

Model Standard Applicable Motor［kW］
HHD
FRN1.5G2P-4J 1.5
FRN2.2G2P-4J 2.2
FRN3.7G2P-4J 3.7
FRN5.5G2P-4J 5.5
FRN7.5G2P-4J 7.5
FRN11G2P-4J 11
FRN15G2P-4J 15
FRN18.5G2P-4J 18.5
FRN22G2P-4J 22
FRN30G2P-4J 30
FRN37G2P-4J 37
FRN45G2P-4J 45
FRN55G2P-4J 55
FRN75G2P-4J 75

DCR Built‑In Type

Model Standard Applicable Motor［kW］
HHD
FRN30G2H-4J 30
FRN37G2H-4J 37
FRN45G2H-4J 45
FRN55G2H-4J 55
FRENIC-MEGA (G2) TOP
FRENIC-MEGA (G2) TOP
Product Information
Product Information
Variations
Variations
Specifications
Specifications
External Dimensions
External Dimensions
Download documents
Download documents

How to Read the Inverter Model

How to Read the Inverter Model
1 Code Series Name
FRN FRENIC Series
2 Code Applicable Motor Rating
0.4
|
630		 0.4kW
|
630kW,710kW
3 Code Applicable Range
G High Performance,
Multifunctional Type
4 Code Order of Development
2 2 Series
5 Code Structure
S Standard (Basic Type)
E EMC filter Built-In Type
P Zero-phase Built-In Reactor Type
H DCR Built-In Type
6 Code Input Power Source
2 Three-phase 200V
4 Three-phase 400V
7 Code Destination
J Japan

Three-phase 200V

HHD Specification (High carrier frequency Heavy Duty):200%-3s, 150%-1min

Basic Type

Model Standard Applicable Motor［kW］
HHD
FRN0.4G2S-2J 0.4
FRN0.75G2S-2J 0.75
FRN1.5G2S-2J 1.5
FRN2.2G2S-2J 2.2
FRN3.7G2S-2J 3.7
FRN5.5G2S-2J 5.5
FRN7.5G2S-2J 7.5
FRN11G2S-2J 11
FRN15G2S-2J 15
FRN18.5G2S-2J 18.5
FRN22G2S-2J 22
FRN30G2S-2J 30
FRN37G2S-2J 37
FRN45G2S-2J 45
FRN55G2S-2J 55
FRN75G2S-2J 75
FRN90G2S-2J 90

EMC Filter Built‑In Type

Model Standard Applicable Motor［kW］
HHD
FRN0.4G2E-2J 0.4
FRN0.75G2E-2J 0.75
FRN1.5G2E-2J 1.5
FRN2.2G2E-2J 2.2
FRN3.7G2E-2J 3.7
FRN5.5G2E-2J 5.5
FRN7.5G2E-2J 7.5
FRN11G2E-2J 11
FRN15G2E-2J 15
FRN18.5G2E-2J 18.5
FRN22G2E-2J 22
FRN30G2E-2J 30
FRN37G2E-2J 37
FRN45G2E-2J 45
FRN55G2E-2J 55
FRN75G2E-2J 75
FRN90G2E-2J 90

Zero‑Phase Reactor Built‑In Type

Model Standard Applicable Motor［kW］
HHD
FRN1.5G2P-2J 1.5
FRN2.2G2P-2J 2.2
FRN3.7G2P-2J 3.7
FRN5.5G2P-2J 5.5
FRN7.5G2P-2J 7.5
FRN11G2P-2J 11
FRN15G2P-2J 15
FRN18.5G2P-2J 18.5
FRN22G2P-2J 22
FRN30G2P-2J 30
FRN37G2P-2J 37
FRN45G2P-2J 45
FRN55G2P-2J 55
FRN75G2P-2J 75

DCR Built‑In Type

Model Standard Applicable Motor［kW］
HHD
FRN30G2H-2J 30
FRN37G2H-2J 37
FRN45G2H-2J 45
FRN55G2H-2J 55

Three-phase 400V

HHD Specification (High carrier frequency Heavy Duty):200%-3s, 150%-1min

Basic Type

Model Standard Applicable Motor［kW］
HHD
FRN0.4G2S-4J 0.4
FRN0.75G2S-4J 0.75
FRN1.5G2S-4J 1.5
FRN2.2G2S-4J 2.2
FRN3.7G2S-4J 3.7
FRN5.5G2S-4J 5.5
FRN7.5G2S-4J 7.5
FRN11G2S-4J 11
FRN15G2S-4J 15
FRN18.5G2S-4J 18.5
FRN22G2S-4J 22
FRN30G2S-4J 30
FRN37G2S-4J 37
FRN45G2S-4J 45
FRN55G2S-4J 55
FRN75G2S-4J 75
FRN90G2S-4J 90
FRN110G2S-4J 110
FRN132G2S-4J 132
FRN160G2S-4J 160
FRN200G2S-4J 200
FRN220G2S-4J 220
FRN280G2S-4J 280
FRN315G2S-4J 315
FRN355G2S-4J 355
FRN400G2S-4J 400
FRN500G2S-4J 500
FRN630G2S-4J 630

EMC Filter Built‑In Type

Model Standard Applicable Motor［kW］
HHD
FRN0.4G2E-4J 0.4
FRN0.75G2E-4J 0.75
FRN1.5G2E-4J 1.5
FRN2.2G2E-4J 2.2
FRN3.7G2E-4J 3.7
FRN5.5G2E-4J 5.5
FRN7.5G2E-4J 7.5
FRN11G2E-4J 11
FRN15G2E-4J 15
FRN18.5G2E-4J 18.5
FRN22G2E-4J 22
FRN30G2E-4J 30
FRN37G2E-4J 37
FRN45G2E-4J 45
FRN55G2E-4J 55
FRN75G2E-4J 75
FRN90G2E-4J 90
FRN110G2E-4J 110
FRN132G2E-4J 132
FRN160G2E-4J 160
FRN200G2E-4J 200
FRN220G2E-4J 220
FRN280G2E-4J 280
FRN315G2E-4J 315
FRN355G2E-4J 355
FRN400G2E-4J 400
FRN500G2E-4J 500
FRN630G2E-4J 630

Zero‑Phase Reactor Built‑In Type

Model Standard Applicable Motor［kW］
HHD
FRN1.5G2P-4J 1.5
FRN2.2G2P-4J 2.2
FRN3.7G2P-4J 3.7
FRN5.5G2P-4J 5.5
FRN7.5G2P-4J 7.5
FRN11G2P-4J 11
FRN15G2P-4J 15
FRN18.5G2P-4J 18.5
FRN22G2P-4J 22
FRN30G2P-4J 30
FRN37G2P-4J 37
FRN45G2P-4J 45
FRN55G2P-4J 55
FRN75G2P-4J 75

DCR Built‑In Type

Model Standard Applicable Motor［kW］
HHD
FRN30G2H-4J 30
FRN37G2H-4J 37
FRN45G2H-4J 45
FRN55G2H-4J 55

AC Drives (Low Voltage) Support

FRENIC Mobile Loader
FRENIC Mobile Loader

Easy setup and maintenance of low-voltage inverters!

Download documents

Catalog list
Instruction Manual list
Users Manual list
CAD data list

Column

Column
Inverter Basics Video

Understanding application, benefits, basic structure, case study, types, and Fuji Electric's inverters with this video.

December 27,2021

Column
Inverters and converters

Understanding the basics: Differences between inverters and converters

January 20,2021

Column
How does an inverter work?

How and what does an inverter take control of? A brief explanation to grasp the basic structure.

January 20,2021

Column
What Does an Inverter Do ?

The fundamentals of inverters and their uses.

January 20,2021

Contact and Support

Online inquiries

Related Information

FRENIC-VG
FRENIC-VG
FRENIC-MEGA (G2)
FRENIC-MEGA (G2)
FRENIC-Ace (E3)
FRENIC-Ace (E3)
FRENIC-Ace (E2)
FRENIC-Ace (E2)
FRENIC-Mini (C2)
FRENIC-Mini (C2)
FVR-Micro
FVR-Micro
FRENIC-Lift (LM3U)
FRENIC-Lift (LM3U)
FRENIC-Lift (LM3S)
FRENIC-Lift (LM3S)
FRENIC-Lift (LM1S)
FRENIC-Lift (LM1S)
FRENIC-HVAC
FRENIC-HVAC
FRENIC-AQUA
FRENIC-AQUA
FRENIC-VP (F3)
FRENIC-VP (F3)
FRENIC-eHVAC
FRENIC-eHVAC
FRENIC-eRHR
FRENIC-eRHR
FRENIC-eRHC
FRENIC-eRHC
Contact Us
