FRENIC-MEGA (G2)

Product information

Supports vector control, sensorless vector control,
dynamic torque vector control, and V/f control.

Faster operating speeds

Increases the maximum output frequency of all control systems to 599 Hz and supports
applications that require high-speed rotation and minimal speed and torque fluctuations.

Example:Machine tools, compressors, automotive testing equipment, etc.

Enhanced response

Improves speed and current responsiveness and stabilizes product quality by substantially reducing torque ripple and rotation irregularities.

Example:Wire drawing machines, metal processing machines, printing machines, etc.

Enhanced torque

Stabilizes torque at low speeds and increases the accuracy of machine operations through its improved speed control range.

Speed control range

Induction motor	During sensor-equipped V/f control	Minimum speed	1:20	Base speed
		Constant torque region	1:2	Constant output region
	During sensor-equipped Dynamic torque vector control	Minimum speed	1:200	Base speed
		Constant torque region	1:2	Constant output region
	During sensorless vector control	Minimum speed	1:200	Base speed
		Constant torque region	1:2	Constant output region
	During sensor-equipped vector control	Minimum speed	1:1500	Base speed
		Constant torque region	1:16	Constant output region
Synchronous motor	During sensorless vector control	Minimum speed	1:10	Base speed
	During sensor-equipped vector control	Minimum speed	1:1500	Base speed

Example:Conveyance machinery, press machines, etc.

Advanced dynamic torque vector control

Enhances our proprietary dynamic torque vector control with new motor constant tuning (that takes into account the voltage of the main circuit) and newly designed magnetic flux observer.

Strengthens ability to handle impact loads

Achieves its class's highest level of torque responsiveness to sudden load changes.
Minimizes fluctuations in motor rotational speed and suppresses vibration via magnetic flux control.

Can be used with any motor

Comes with new auto-tuning features that enable multi-drive operation using our induction and synchronous motors as well as those of other companies.

Expansion of standard applied motor capacity for the HND specification

We expanded the rated current and standard applied motor capacity (HND specification) for general loads, making it an easy replacement for our FRENIC-Eco Series (for fans and pumps).

Expands the capacity of the built-in braking transistor type

Comes standard with a larger capacity range and contributes to control panel space and cost savings.

Comes with feature-rich functionality and enhances compatibility with system networks.

Positioning

Contributes to shortening machine tact time through high-precision positioning control for pulse string input and feedback output instructions.

Main features
- Eight positioning data points - Pulse train instruction - Origin return function - Overtravel detection function - Position preset function

Orientation

Capable of rotator positioning, enabling machinery to be held in place via servo locking after stoppage.

PID auto tuning

Simplifies optimization via automatic adjustment of proportional and integral gains, resulting in shorter system start-up times.

Customizable logic functions

Customizable inverter functions to meet your own specific needs.
Requires no PLC or external control equipment (relays, timers, etc.) circuits, and can be configured simply by setting and combining various parameters inside the inverter.

Advantages

Comes with a wide variety of logic symbols and programming steps

Item	FRENIC-MEGA
Logic symbol type (Logical operations, counters, timers, arithmetic operations, comparators, limiters, selectors, holders, etc.)	Total of 58 digital & analog types
Number of programming steps	260 steps

Note)

The programming tool software can be downloaded for free from our website.

PID Control (with 4 PIDs)

Allows switching between two types of process commands and feedback values. PID control function that is easy to adjust using an anti-reset windup function to prevent overshoot of PID control and PID output limiter and integral hold/reset signal.
In addition, up to three external actuators can be controlled simultaneously with motor PID control, eliminating the need for a PLC and contributing to system cost reductions.

Linearize

By controlling the pumping pressure at an appropriate value based on the flow rate and target end pressure, it maintains the discharge pressure and reduces wasteful power consumption, contributing to energy-saving effects.

Cascade operation

Function to control multiple pumps with one inverter. Control by combining inverter-driven and commercial power-driven operation. The flow and pressure sensor signals are controlled by the PID controller built-in the inverter, and each pump is driven by commercial power or the inverter using switching signals from the inverter.
As a result, when the discharge flow rate is low, only inverter-driven operation is used, and when the discharge flow rate is high, commercial power-driven operation is used in addition to inverter-driven operation to ensure the necessary total discharge flow rate.

It consists of a combination of a inverter-driven motor (M0), commercial power-driven motors (M1 to M8), and an auxiliary motor (MA). The inverter-driven motor is fixed to motor M0. When the desired discharge flow rate is not achieved with only motor M0, control is performed by sequentially adding commercial power-driven motors.

It consists of a combination of motors(M1 to M4) that can switch betweeninverter-driven and commercialpower-driven operation, and anauxiliary motor (MA) that is driven bycommercial power. Variable speedcontrol using inverter-driven operationat startup. If the desired discharge flowrate is not achieved with only the firstmotor, the operation of FLOATING-1 orFLOATING-2 can be selected.

Each inverter is connected via acommunication link, eliminating theneed for a controller when buildingsystems. In addition, the communicationlink reduces wiring withoutrequiring any additional options.

Constant control of temperature and pressure differences

Reduces wasteful power consumption bylowering fan output when it is difficult to lowerinternal temperatures due to environmentalfactors such as the outdoor air temperaturebeing higher than that of the cooling water.
Temperature can be detected directly with theresistance temperature sensor by using anOPC-PT option card.

Prevention of filter clogging

It detects filter clogging due to dust, etc., based on output current and pressure sensor values, and removes the dust through reverse rotation.
In addition, an alarm is used to indicate that maintenance is required.

Fire Mode

In the event of a fire or other emergency, the inverter's protective function (output shutoff) is partially ignoredand operation is continued. This prevents the buildingfrom being filled with smoke and secures an evacuationpassage.

Supports a variety of networks

Insert the option card into the connector inside the main unit. Up to three cards can be inserted.
Optional communication card types ① DeviceNet　② CC-Link　③ T-Link　 ④ PROFIBUS-DP　⑤ CANopen　⑥ SX bus　 ⑦ Ethernet (EtherNet/IP・PROFINET RT・Modbus TCP)　⑧(BACnet/IP, EtherCAT) Note) There are some limitations to how option cards can be combined. Please contact us for details.

Enhanced network functions

Comes standard with an RS-485 terminal in addition to a port (RJ-45 connector) that is shared with the keypad.
Simplifies multi-drop connections via terminal connection.

Enhances work efficiency through simplified wiring and configuration and ensures safety and security through standard features such as preventive and predictive maintenance functions.

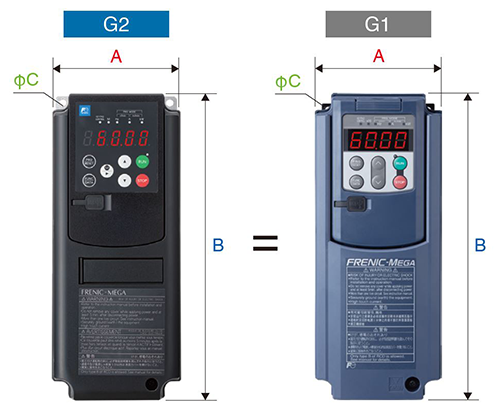

Same mounting dimensions

The appearance and mounting dimensions of the inverter are fully compatible.
The 3D position and size of the main circuit screw terminals are also the same.

Note)

Can be installed as a replacement for conventional FRENIC-MEGA(G1) Series products.

Simple wiring

The control terminal block uses an industry-standardrod-shaped block (44-pole, ⊖ screw) and improvesworkability of wiring.

Supports replacement or mounting of conventional
FRENIC-MEGA(G1) Series' round terminal blocks(35-pole ⊕ screw).

Easy parameter migration

Compatibility mode allows parameters read from the previous model to be written directly to the G2 Series.

Designed with new operation keypad

Comes standard with a 7-segment 5-display whose large screen is very intuitive and enhances maintainability via improved key button operability and cursor digit control.

Standard

Additional features

Character display

• 7-segment, 5-digit LED display.

“M/Shift” key

• The cursor can be moved to any position.

• Can assign the same signals as the digital input terminal (X terminal).

• Can fix the assigned signal to ON by pressing and holding the key.

“M” LED display

• Can use LEDs to monitor the digital output signals of inverters.

• Y-terminal signals can be assigned to enable checking without using a conventional PC loder or keypad.

Multi-function Option

Additional features

Character display

• Equipped with a highly visible LCD.

• Supports a total of 20 languages, including Japanese hiragana, katakana and kanji.

0:Japanese	1:English	2:German	3:French	Spanish
5:Italian	6:Spanish	7:Korean(Note)	8:Russian	9:Greek
10:Turkish	11:Polish	12:Czech	13:Swedish	14:Portuguese
15:Dutch	16:Malay	17:Vietnamese	18:Thai	19:Indonesian

Note)

Compatible with the software version, main product ROM0500 or later and the multifunctional keypad ROM5020 or later.

USB port

• Mounts to both standard keypad and multifunctional keypad.

• Can be directly connected to a PC with a commercially available USB cable (mini B).

Clock function

• Time data can be added to the alarm history.

Note)

Battery (CR2032 type) not included

SD card slot

• Can store traceback data on micro SD card.

Note)

SD card not included.

Water resistant

• The front surface and sides are IP55 protected.

Note)

The back side is IP20 protected.

Built-in Bluetooth

• Parameter changes and maintenance can be performed remotely using a mobile device.

Note)

Radio law certified countries: Japan, Europe, North America, China, Thailand

Enhancement of alarm history/traceback function

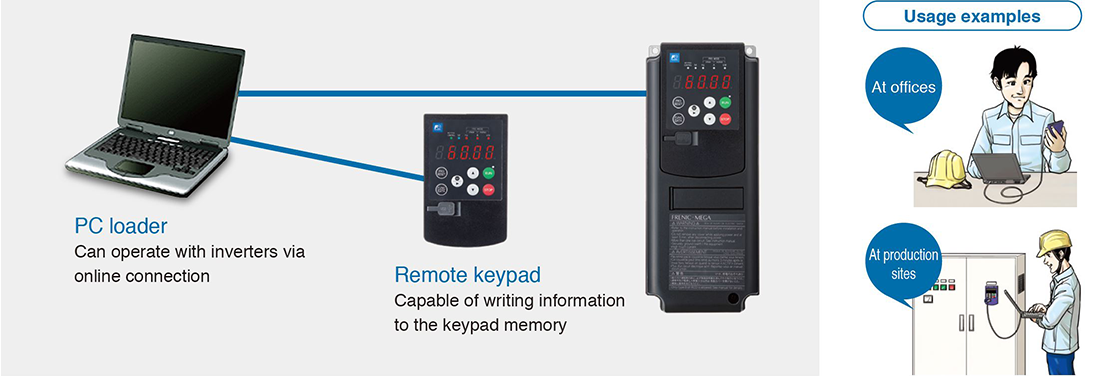

Enhanced PC loader functions

Life expectancy diagnosis and maintenance functions

The keypad and PC loader make it easy to check the status of equipment and detect problems before they occur, helping to reduce production equipment maintenance time and downtime.

Long life expectancy (main components)

Many of the serviceable parts inside the inverter have been designed to meet

Globally compliant lineup compatible with adverse atmospheres and various safety standards.

Improves environmental resistance

(1) Uses copper bars with Ni and Sn plating
(2) Ambient operating temperature up to +55℃ 　

Note) Derating is required when used at 50℃ or higher.

(3) Further strengthens PCB coating 　

(JIS C 60721-3-3 Class 3C2)
Note) Products also available with enhanced salt-resistance and made-to-order specifications.

(4) IP55 protection for the inverter's main cooling unit contributes to enhanced cooling outside the panel, lower costs, and downsizing.

Note) If you are using or considering using the product under the following conditions, please contact our sales department.
a. Environments containing sulfurized gas (e.g., some applications in the tire manufacturing, paper manufacturing, sewage treatment, textile industries, etc.)
b. Environments containing conductive dust and foreign objects(e.g., metal processing machines, extruders, printing machines, waste disposal machinery, etc.)
c. When using the product in non-standard environments

Note)

Supports only 30 kW to 630 kW

Includes safety functions

・Compliant with European safety standards.

Note) The zero-phase reactor built-in type does not comply with the EC Directive (CE marking).

・The inverter comes with a function that enables it to adapt to machine safety. This provides safe shutdown without the need for an external output circuit breaker.

Note)

Always turn off the breaker when touching the electrical circuit during maintenance.

Compliant with the revised European RoHS Directive

Ten environmental impact substances

Lead, mercury, cadmium, and hexavalent chromium
Polybrominated biphenyl (PBB)
Polybrominated diphenyl ether (PBDE)
Di-2-ethylhexyl phthalate (DEHP)
Butyl benzyl phthalate (BBP)
Di-n-butyl phthalate (DBP)
Diisobutyl phthalate (DIBP)

Globally compliant

Compliant with overseas safety standards.

European regions	United States/Canada
EC directive (CE marking)	UL standard/cUL standard

Note)

The zero-phase reactor built-in type does not comply with the EC Directive (CE marking).
