FRENIC-HVAC
Variation

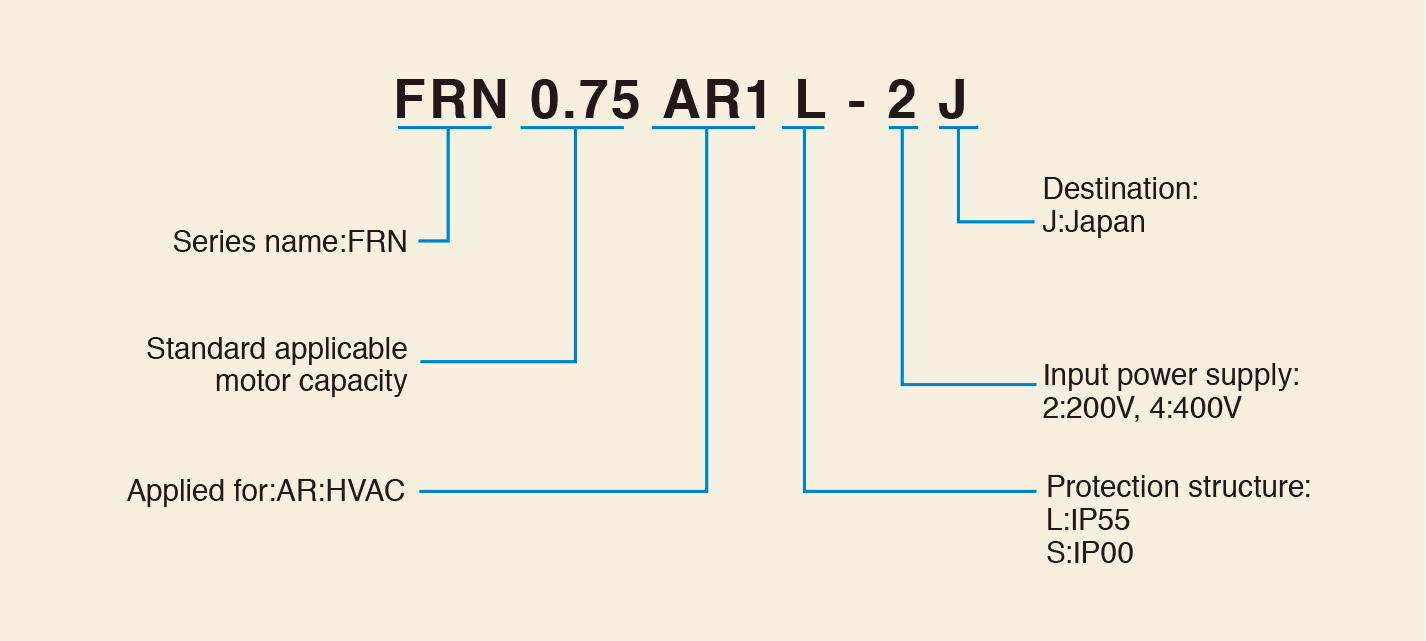

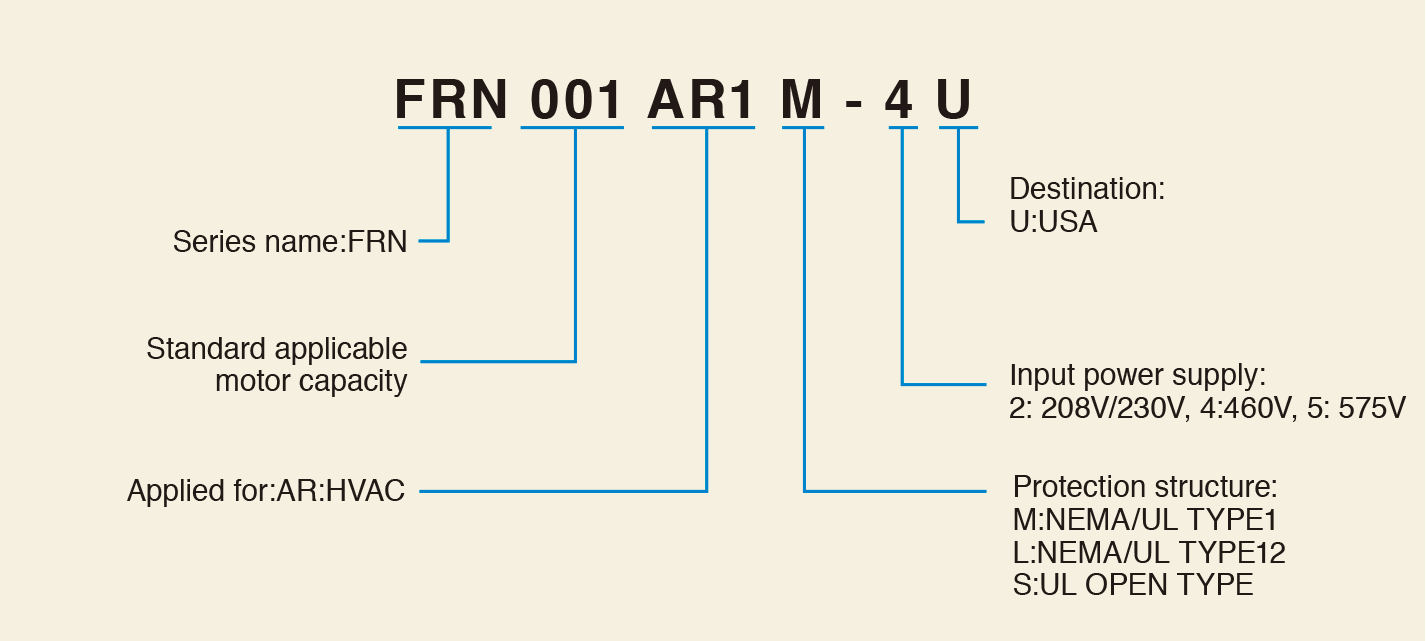

How to Read the Inverter Model

Destination	Rated voltage	Nominal applied motor [kW]	Type
Japan	3-phase 200V	0.75	FRN0.75AR1L-2J
		1.5	FRN1.5AR1L-2J
		2.2	FRN2.2AR1L-2J
		3.7	FRN3.7AR1L-2J
		5.5	FRN5.5AR1L-2J
		7.5	FRN7.5AR1L-2J
		11	FRN11AR1L-2J
		15	FRN15AR1L-2J
		18.5	FRN18.5AR1L-2J
		22	FRN22AR1L-2J
		30	FRN30AR1L-2J
		37	FRN37AR1L-2J
		45	FRN45AR1L-2J
		55	FRN55AR1S-2J
		75	FRN75AR1S-2J
		90	FRN90AR1S-2J
	3-phase 400V	3.7	FRN3.7AR1L-4J
		5.5	FRN5.5AR1L-4J
		7.5	FRN7.5AR1L-4J
		11	FRN11AR1L-4J
		15	FRN15AR1L-4J
		18.5	FRN18.5AR1L-4J
		22	FRN22AR1L-4J
		30	FRN30AR1L-4J
		37	FRN37AR1L-4J
		45	FRN45AR1L-4J
		55	FRN55AR1L-4J
		75	FRN75AR1L-4J
		90	FRN90AR1L-4J

□(Protective structure) : L : IP55(0.75 to 90kW), S:IP00（55 to 90kW)

Destination	Rated voltage	Nominal applied motor [kW]	Type
Europe	3-phase 400V	0.75	FRN0.75AR1□-4E
		1.5	FRN1.5AR1□-4E
		2.2	FRN2.2AR1□-4E
		3.7	FRN3.7AR1□-4E
		5.5	FRN5.5AR1□-4E
		7.5	FRN7.5AR1□-4E
		11	FRN11AR1□-4E
		15	FRN15AR1□-4E
		18.5	FRN18.5AR1□-4E
		22	FRN22AR1□-4E
		30	FRN30AR1□-4E
		37	FRN37AR1□-4E
		45	FRN45AR1□-4E
		55	FRN55AR1□-4E
		75	FRN75AR1□-4E
		90	FRN90AR1□-4E
		110	FRN110AR1□-4E
		132	FRN132AR1□-4E
		160	FRN160AR1□-4E
		200	FRN200AR1□-4E
		220	FRN220AR1□-4E
		280	FRN280AR1□-4E
		315	FRN315AR1□-4E
		355	FRN355AR1□-4E
		400	FRN400AR1□-4E
		500	FRN500AR1□-4E
		630	FRN630AR1□-4E
		710	FRN710AR1□-4E

□(Protective structure) : M : IP21, L : IP55(0.75 to 90kW), S : IP00(110 to 710kW)

Destination	Rated voltage	Nominal applied motor [HP]	Type
USA	Threephase 230V	1	FRN001AR1□-2U
		2	FRN002AR1□-2U
		3	FRN003AR1□-2U
		5	FRN005AR1□-2U
		7	FRN007AR1□-2U
		10	FRN010AR1□-2U
		15	FRN015AR1□-2U
		20	FRN020AR1□-2U
		25	FRN025AR1□-2U
		30	FRN030AR1□-2U
		40	FRN040AR1□-2U
		50	FRN050AR1□-2U
		60	FRN060AR1□-2U
		75	FRN075AR1S-2U
		100	FRN100AR1S-2U
		125	FRN125AR1S-2U
	Threephase 460V	1	FRN001AR1□-4U
		2	FRN002AR1□-4U
		3	FRN003AR1□-4U
		5	FRN005AR1□-4U
		7	FRN007AR1□-4U
		10	FRN010AR1□-4U
		15	FRN015AR1□-4U
		20	FRN020AR1□-4U
		25	FRN025AR1□-4U
		30	FRN030AR1□-4U
		40	FRN040AR1□-4U
		50	FRN050AR1□-4U
		60	FRN060AR1□-4U
		75	FRN075AR1□-4U
		100	FRN100AR1□-4U
		125	FRN125AR1□-4U
		150	FRN150AR1S-4U
		200	FRN200AR1S-4U
		250	FRN250AR1S-4U
		300	FRN300AR1S-4U
		350	FRN350AR1S-4U
		450	FRN450AR1S-4U
		500	FRN500AR1S-4U
		600	FRN600AR1S-4U
		800	FRN800AR1S-4U
		900	FRN900AR1S-4U
		1000	FRN1000AR1S-4U
	Threephase 575V	1	FRN001AR1□-5U
		2	FRN002AR1□-5U
		3	FRN003AR1□-5U
		5	FRN005AR1□-5U
		7	FRN007AR1□-5U
		10	FRN010AR1□-5U
		15	FRN015AR1□-5U
		20	FRN020AR1□-5U
		25	FRN025AR1□-5U
		30	FRN030AR1□-5U
		40	FRN040AR1□-5U
		50	FRN050AR1□-5U
		60	FRN060AR1□-5U
		75	FRN075AR1□-5U
		100	FRN100AR1□-5U
		125	FRN125AR1□-5U
		150	FRN150AR1□-5U
		200	FRN200AR1S-5U
		250	FRN250AR1S-5U
		300	FRN300AR1S-5U

□(Protective structure) : M : IP21, L : IP55(0.75 to 90kW), S : IP00(110 to 710kW)

This model is not available in your region.
For more information regarding this product, please contact us via the inquiry form.

Destination	Rated voltage	Nominal applied motor [kW]	Type
Asia	3-phase 400V	0.75	FRN0.75AR1□-4A
		1.5	FRN1.5AR1□-4A
		2.2	FRN2.2AR1□-4A
		3.7	FRN3.7AR1□-4A
		5.5	FRN5.5AR1□-4A
		7.5	FRN7.5AR1□-4A
		11	FRN11AR1□-4A
		15	FRN15AR1□-4A
		18.5	FRN18.5AR1□-4A
		22	FRN22AR1□-4A
		30	FRN30AR1□-4A
		37	FRN37AR1□-4A
		45	FRN45AR1□-4A
		55	FRN55AR1□-4A
		75	FRN75AR1□-4A
		90	FRN90AR1□-4A
		110	FRN110AR1□-4A
		132	FRN132AR1□-4A
		160	FRN160AR1□-4A
		200	FRN200AR1□-4A
		220	FRN220AR1□-4A
		280	FRN280AR1□-4A
		315	FRN315AR1□-4A
		355	FRN355AR1□-4A
		400	FRN400AR1□-4A
		500	FRN500AR1□-4A
		630	FRN630AR1□-4A
		710	FRN710AR1□-4A
