FRENIC-HVAC
Product Information | Optimal Structure Design
-
Optimal Structure Design
Optimal Structure Design

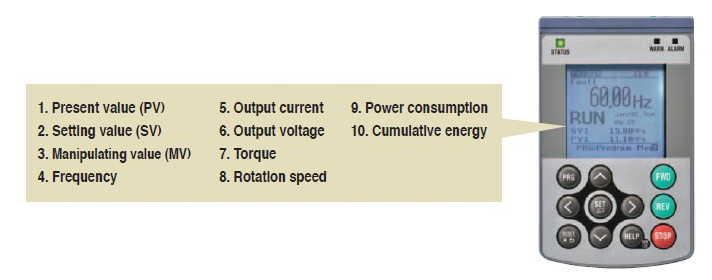

User friendly, easy to see keypad
The regulator is indicated by enlarging the LCD.
-
Note
-
Possible to show understandable indications through the unit conversion function.
-
Note
-
Multi-language function: 19 languages + user customized language supported
Multi-language supported: 19 languages + user customized language (Planned)
Real time clock (RTC) is provided as standard.
Alarm information with date and time
Easy failure analysis
Alarm information for last ten times is stored and displayed with date and time.
Timer function
-
Possible to set the maximum four timers for a week.
-
Possible to set flag holidays (20 days a year).
Example

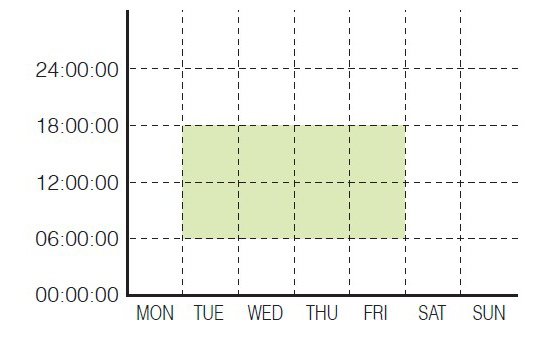

When operation is performed in the same schedule through a week
Operation schedule can be set according to actual condition by using four timers.

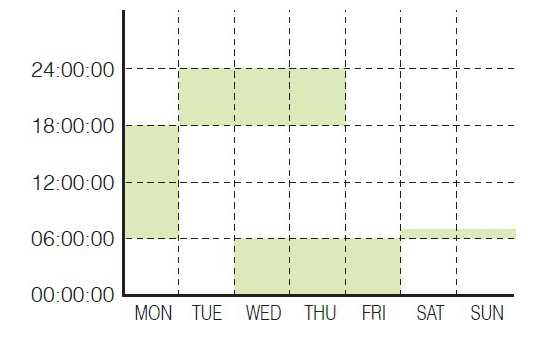

When operation schedule varies depending on the day of the week
Unit conversion function between PV and SV values
-
Unit conversion allows you to easily set data.

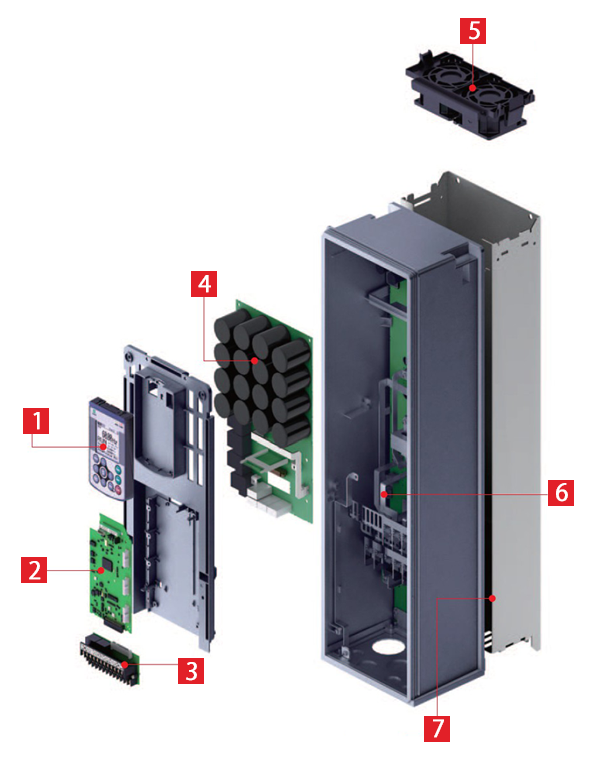

External views
Multi-language supported, HELP function featured, unit setting with SV and PV values, data copy (three kinds), detachable and can be attached on the panel (using an optional cable)
USB port equipped, BACnet equipped as standard. Max. three types of built-in optional boards can be mounted all together. Optional battery connection Various communications options
The detachable control terminal block is adopted. This allows the unit to be replaced easily without disconnecting cables.
Outputs the life prediction signal determining capacitor capacity drop and cumulative running hours. This allows the user to grasp replacement period.
Easy replacement just by simply removing and attaching the part. Life prolongation is possible by controlling ON and OFF.
Drastically reduces noise. Provided to units of all capacities. Conforming to IEC61800-3.
Drastically reduces harmonic noise. Conforming to IEC/EN61000-3-2 and IEC/EN61000-3-12. Provided as standard (to models up to 90kW), and can be attached externally as an option (to models from 110kW to 710kW).
3C2, IEC60721-3-3 supported
Support/analysis software by loader, RTC backup by battery (option)
