Solutions for Ships and Ports
Shore to Ship Power Supply System

Features

Shore to Ship Power Supply System for Safe, Reliable, and Environmentally Conscious Ports

Features of Our System

1.

Power can be supplied at any voltage and frequency.
2.

We offer a broad lineup of capacities, allowing you to select the optimal option for the application
3.

The system enables automatic synchronization and desynchronization with the ship’s onboard generator.
4.

Even in the event of equipment failure or inspection, the number of units can be reduced by disconnecting parts of the equipment (enabling continued operation).

Benefits of Implementation

Reducing Exhaust Gas and CO2 Emissions

For ships at berth, the required electric power is transmitted from the shore, and the onboard generator is shut down. The system reduces emissions of NOx, SOx, and other air pollutants, as well as CO2.

Compact Package

The power supply equipment is packaged and delivered in a 40-foot container. This improves the ease of installation, contributing to reduced construction time and faster deployment.

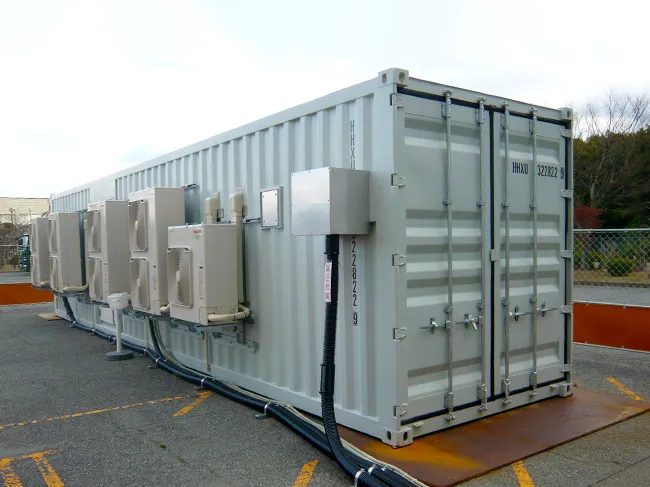

40 ft container package

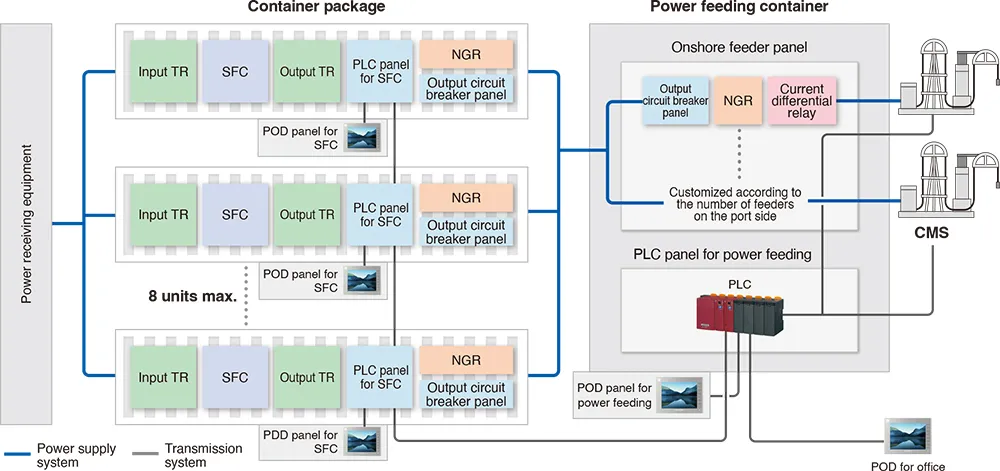

System Configuration

Shore to Ship Power Supply System for the Type of Ship

Ship type	Roll-on/roll-off ships	Bulk carriers	Container ships	Passenger ships	Tankers
Voltage	6.6kV or 440V	6.6kV or 440V	6.6kV or 440V	11kV or 6.6kV or 440V	6.6kV or 440V
Ship-side frequency	50/60Hz	60Hz	60Hz	50/60Hz	60Hz
Required capacity at berth	Up to 6.5 MVA	Up to 6.5 MVA	Up to 7.5 MVA	Up to 20 MVA	Up to 3.6 MVA

Common Specifications

	Equipment	Single unit (625 kVA, 1.25 MVA)		Parallel (2.5 MVA, 5 MVA, 7.5 MVA, 10 MVA)
Main equipment specifications	Capacity	625 kVA	1.25 MVA	2.5 MVA	5 MVA	7.5 MVA	10 MVA
	Container	40 ft x 1	40 ft x 1	40 ft x 2 (1.25 MVA x 2)	40 ft x 4 (1.25 MVA x 4)	40 ft x 6 (1.25 MVA x 6)	40 ft x 8 (1.25 MVA x 8)
	Input voltage	6.6 kV
	SFC	625 kVA	1250 kVA	1250 kVA x 2	1250 kVA x 4	1250 kVA x 6	1250 kVA x 8
	Output voltage	6.6 kV
	Output circuit breaker panel	VBC 7.2 kV 630 A 20 kA	VCB 7.2 kV 630 A 20 kA	VCB 7.2 kv 630 A 20 kA x 2	VCB 7.2 kv 630 A 20 kA x 4	VCB 7.2 kv 630 A 20 kA x 6	VCB 7.2 kv 630 A 20 kA x 8
Installation environment	・Ambient temperature and humidity: Outside air temperature: -20 to +40°C, 85%RH or less ・Wind speed tolerance: 46 m/sec ・Salt tolerance specification: Container body: ISO marine cargo transport container specification, AC outdoor unit: high salt tolerance specification ・Snow load: 1.0 m/m2 (assuming snow removal in heavy snowfall areas) ・Waterproof: JIS-C-0920 Protection Grade 4 (splash-proof type) ・Container installation orientation: To be installed with the door and AC outdoor unit on the mountain side ・Applicable standard: IEC 80005
