Features

Features

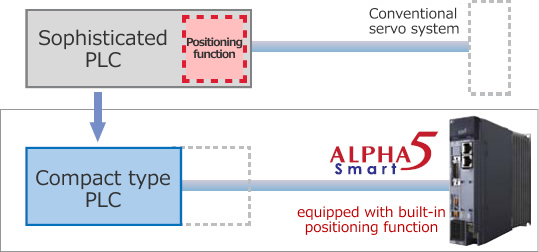

Smart Design

PTP positioning

Positioning function built in as standard

No external units or special equipment required for positioning

Top of Page

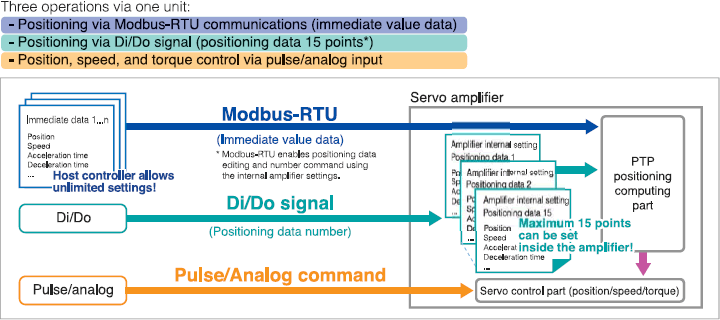

3-in1 functionality

Top of Page

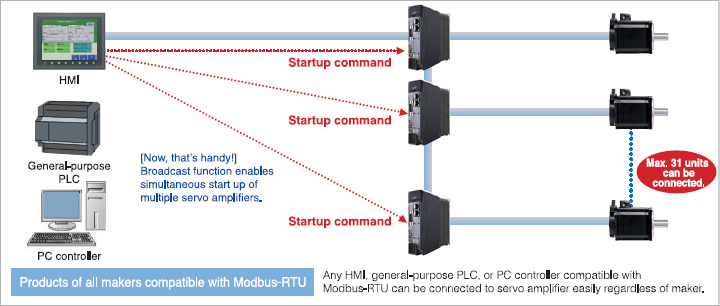

Simple operation via Modbus-RTU communications

Modbus-RTU communications enables PTP positioning, parameter editing, and the use of vatious monitors.
Just connect an HMI, general-purpose PLC, or PC controller directly to the servo amplifier.

Top of Page

Long-life design

Servo amplifier parts designed to last longer

  • Electrolytic capacitor:10years
  • Cooling fan:10years

*Operating conditions

  • - Ambient temperature: Average 30°C/year
  • - Load factor: Within 80%
  • - Operation rate: Within 20 hours/day

Top of Page

Easy ABS battery replacement

ABS backup battery can be mounted on front face of servo amplifier for easy replacement

Regulatory compliance

CE marking and UL/cUL

The standard model complies with CE marking and UL/cUL.

  • * Some of the models are in the process to be certified.

RoHS Directive

Compliant with the European Restriction of Hazardous Substances(ROHS) Directive. The use of six hazardous substances has been reduced for a more environmentally-friendly servo system.

[Six hazardous materials]
Lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyl (PBB), polybrominated diphenylether (PBDE)
