UPS7100MX-T3 Series

About a 40% reduction in device mass compared to previous models
On-line type UPS
Three-phase, 30 to 100 kVA

Utilization of device technologies reduces equipment mass

Utilization of 3-level modules with RB-IGBTs*1 and conventional IGBTs in one package to simplify the circuit configuration as well as miniaturization of filters have reduced the mass of the equipment by about 40% compared with our conventional models.

＊1

RB-IGBT；Reverse Blocking-Insulated Gate Bipolar Transistor (or reverse blocking IGBT)

High efficiency

Our new power conversion technology (featuring new three-level conversion circuits) reduces the switching losses of the IGBT elements. Additionally, reducing the harmonic components in the PWM waveform output from the inverter by half compared with our conventional products reduces filter losses and achieves a best-in-class equipment efficiency of 95%*2.

＊2

Indicates the maximum efficiency of the equipment, and is not a guaranteed value.

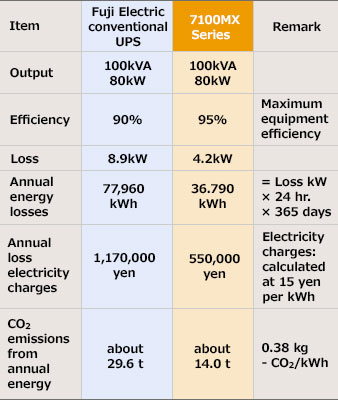

The above table represents approximate calculation values for continuous operation at a 100% load for one year.

Simple human-machine interface

An LCD touch panel with character display enables the operation status of the equipment to be checked at a glance and operation guidance, event history and various measurements to be displayed.

Wide range of input and output voltages

The rated input and output voltage can be set within a range of 200 to 220 V. This wide range has been achieved by an addition of 220 V to the conventional rated input and output voltages of 200 V and 210 V.
In addition, the input voltage tolerance range is −30% to +10% of the rated voltage and the output voltage is kept constant without requiring battery operation even in power transmission environments that experience large voltage fluctuations. (Note that this performance is dependent upon the load conditions.)

Enhanced network system functions (option)

The installation of an optional Web/SNMP card makes it possible to monitor the status of the equipment using a web browser, receive event notifications by e-mail, perform remote maintenance, shut down multiple servers, and monitor the status using SNMP manager software (JEMA-MIB compatible).

Built-in maintenance bypass circuit (option)

A maintenance bypass circuit built into the UPS is available as an option. This built-in maintenance bypass circuit enables higher maintainability with only the UPS equipment.

Ratings and specifications

Series UPS7100MX
Model T3/30 T3/50 T3/75 T3/100
Capacity 30kVA 50kVA 75kVA 100kVA
Cooling method Forced air cooling
Power supply method Grid-synchronized online UPS system
AC input Number of phases Three-phase, three-wire
Voltage 200 or 210 V (220 V support possible)
Voltage fluctuation range +10%, −30% (with reduction)＊1
Frequency 50 or 60 Hz
Input power factor 0.98 or more (at rated load)
Harmonic content ratio 5% or less (at rated load)
Direct feed input Number of phases Three-phase, three-wire
Voltage 200または210V（220V対応可能）
Voltage fluctuation range ±10%
DC voltage Rated voltage 384V
Voltage range 307.2 to 436.8V
Number of battery cells 192 cells (for a lead-acid storage battery)＊2
AC output Ratings and specifications 30kVA 50kVA 75kVA 100kVA
Number of phases Three-phase, three-wire
Voltage 200 or 210 V (220 V support possible)
Frequency 50 or 60 Hz
Load power factor (rated) 0.8 (delay) or 0.9 (delay)
Voltage accuracy (rated load, settling time) ±1% or less
Frequency accuracy ±0.01%
Synchronous frequency range ±1% (±2%, ±3%, ±4%, ±5% settings are possible)
Transient voltage fluctuation ① ±3% or less: Sudden load change 0 ⇔ 100%
② ±2% or less: Sudden input voltage change ±10%
③ ±2% or less: Grid power failure, grid power recovery
④ ±5% or less: Direct feed → UPS switching (Switching from UPS to direct feed depends on direct power feed characteristics.)
However, the above ① to ④ conditions shall not overlap.
Settling time 50ms
Voltage waveform distortion ratio 2% or less (at 100% linear load), 5% or less (at 100% nonlinear load)
Voltage unbalance rate ±1.5% or less
Overload tolerance 125%: 10 min, 150%: 1 min
Operating environment, other values Operating temperature 0 to +40°C (operating), recommended temperature: + 25°C ±3°C
Relative humidity 10～90%
Altitude 1,000 m or less
Noise＊3 65dB (A) or less 70dB (A) or less
Heat generation quantity (at load power factor: 0.8) 1.26kW 2.11kW 3.16kW 4.21kW
Maximum equipment efficiency 95％
Withstand voltage 2,000 VAC for 1 min
Insulation resistance 3 MΩ or more

＊1

When the input current limit level is reached due to a drop in the input voltage, the battery compensates for the shortage. Continued operation under these conditions for long periods leads to the battery discharge being cut off.

＊2

Contact us about the 180-cell lead-acid cell battery specification.

＊3

A weighting (average peripheral measurement at 1 m)

Batteries (service life and backup time )

Battery types

A UPS uses battery power when the power being supplied by the grid fails. A UPS is normally set to cover a power outage of about 10 minutes. The battery capacity needs to be increased for coverage of longer power outages.
However, covering long power outages with batteries is not economical. When it is necessary to be able to provide backup power for outages of one hour or more, generally an emergency in-house power generator is installed on the input side.
There are various types of batteries, but UPS systems commonly use rapid-discharge lead-acid batteries mainly for economic reasons. Various types of rapid-discharge lead-acid storage batteries are being manufactured.
The following table presents an overview and comparison of typical batteries for reference.

Valve-regulated lead-acid (VRLA) storage battery Alkaline storage battery
MSE type battery UPS special-purpose battery
Series MSE Long life MSE (FVL) High-rate discharge (FVH) Small valve-regulated type (FPX) AHH
Capacity [Ah] 50～3000 50～3000 50、100、 150 :
(Monoblock type)
200、 300 :
200, 300:(Cell type)		 10～38 20～1000
Expected service life＊ 7 to 9 years 13 to 15 years 7 to 9years about 5 years 12 to 15 years
Routine maintenance Voltage only Voltage only Voltage only Voltage only Voltage, fluid replacement, specific gravity, equalizing charge
Initial cost (approximate ratio) 100% 130% 70～80％ 45～55％ 200～300％
External dimensions (space ratio) Medium (100%) Medium (100%) Somewhat small (50 to 70%) Small (30%) Large (150 to 200%)
Remarks Conventionally used in large capacity UPS systems Life-cycle cost benefit More advantageous than MSE type in terms of size and price (monoblock type enables additional space-savings) Standard use in small and medium capacity UPS systems High price, used for special applications

＊

Expected service life at ambient temperature: 25℃, number of discharges: several, and discharges of 0.1 to 0.16C 10 A.

Standard battery panel

UPS capacity [kVA] Power outage backup type Power outage backup time (min) Capacity Dimensions [mm] Mass [kg] Fire Prevention Ordinance＊
(● mark indicates notification required.)
Load power factor 0.8 (delay) Load power factor 0.9 (delay) 〔Ah/20hR〕 Width Depth Height
30 Standard 10 8 24 430 750 1850 550 -
Long time 27 23 2×24 860 750 1850 1100 ●
Very long time 43 38 3×24 1290 750 1850 1650 ●
50 Standard 10 7 38 500 750 1850 760 ●
Long time 26 22 2×38 1000 750 1850 1520 ●
Very long time 42 36 3×38 1500 750 1850 2280 ●
75 Standard 15 13 2×38 1000 750 1850 1520 ●
Long time 26 22 3×38 1500 750 1850 2280 ●
Very long time 36 32 4×38 2000 750 1850 3040 ●
100 Standard 10 7 2×38 1000 750 1850 1520 ●
Long time 26 22 4×38 2000 750 1850 3040 ●
Very long time 34 29 5×38 2500 750 1850 3800 ●

＊

The Fire Prevention Ordinance is applicable to batteries with capacities of 4,800 Ah/cell or more. For such batteries, notification to the local fire department and installation of ventilation equipment are required.

Note 1

The power outage backup time is the initial value in an ambient temperature of 25°C. Also, the applicable battery is a small valve-regulated lead-acid battery with an expected service life span of about 5 years (25°C).

Note 2

The height of the battery panel includes the channel base height of 50 mm.

Customizations other than the above batteries are also possible. Please contact us for more information.
