UPS7000HX-T4 Series（For overseas applications）

High-capacity UPS features high reliability and high functionality
On-line type UPS
Three-phase, four-wire, 400 to 2500 kVA

High efficiency

High efficiency of 96.5 % achieved with a three-phase, four-wire constant inverter power supply system

  • T-NPC* 3-level (new 3-level) conversion technology

  • Application of Fuji-made RB-IGBT elements

  • Circuit rationalization, such as transformerless isolation, by means of DC voltage control

  • Significant reduction in running cost

*

AT-NPC : Advanced T-type Neutral Point Clamped

High reliability

High reliability achieved through systemization and our proven track record

  • Synchronized switchover system with bypass

  • Parallel redundant system

  • Standby redundant system

High functionality

Variety of functions achieved through our proven track record

  • Soft start to suppress inrush current

  • Power walk-in function

  • Battery service life assessment

  • Simple Network Management Protocol (SNMP) (It can respond by using an option)

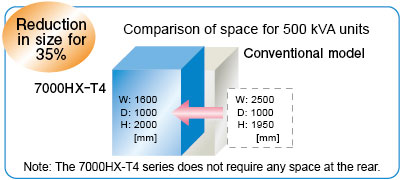

Space-saving design

Compact and lightweight design

  • We reduced the footprint of the facility equipment while maintaining the space for servers.

Series UPS7000HX-T4 Series
Model UPS7000HX-T4/500
AC input Number of phases 3-phase, 4-wire
Voltage 380 V/400 V/415 V ±15 %
Frequency 50/60 Hz ±5 %
Power factor >0.99
Bypass input Number of phases 3-phase, 4-wire
Voltage 380/400/415 V ±15 %
Frequency 50/60 Hz ±5 %
AC output Rated capacity 500kVA
Number of phases 3-phase, 4-wire
Voltage 380/400/415 V
Voltage accuracy <±1%
Frequency 50/60 Hz
Frequency accuracy ±0.01 Hz (At self-oscillation)
Load power factor Rated 0.9 (0.7 to 1.0 delay)
Transient voltage regulation <±5%
Voltage waveform distortion factor <2% (Linear load), <3% (Non-linear load IEC62043-3)
Overload capacity 125 % 10 min，150 % 1 min
Peak-to-rms ratio ≦3
Battery Rated voltage 480 VDC (240 cells) to 528 VDC (264 cells)
Floating charge voltage 540 V (240 cells, 2.25 V per cell), 594 V (264 cells, 2.25 V per cell)
External dimensions Width 1630mm
Depth 1000mm
Height 1950mm (Height including base)
Compliance standards Safety (CB scheme warranted) IEC62040-1
Electromagnetic compatibility (EMC) IEC62040-2
Performance IEC62040-3
Other Operating temperature 0 to +40°C
Altitude Standard 1000 m or less
Relative humidity 30 to 90 %
Cooling system Forced air cooling
Installation site Indoors
Protection class IP20
Cable lead-in Ceiling
Soft-start function Yes
Internal backfeed protection Yes
Communication interface Simple Network Management Protocol (SNMP)(It can respond by using an option)

Note

Please contact us for other models.
Customized battery solutions are available. Please contact our sales department for details.
