UPS6000DX-T3 Series

Supporting the high-level requirements of ICT equipment
On-line type UPS
Three-phase, three-wire, 100 to 300 kVA

問い合わせフォーム
  • FeaturesFeatures
  • Ratings and specificationsRatings and specifications

Features

Support for high power factor loads (kVA = kW)

With the widespread use of power factor correction (PFC) circuits, power can be supplied effectively to load equipment with high power factors (1.0).

Item DX Series* Fuji Electric conventional UPS *
Rated load 1.0 0.9 (lag)
Output capacity 〔kVA〕 100 100
〔kW〕 100 90
Number of 5 kW servers supported (example) 20 units 18 units

* This is a comparison between 100 kVA units.

High output power density (kW/m2)

The industry's highest output power [kW] per installation area has been achieved by increasing the output power [kW] in the same installation space required by conventional units. (300 kVA unit)

Redundant cooling fans

By means of an efficient arrangement of multiple small cooling fans, power supplied by the UPS can be continued even if one cooling fan stops. This function improves the availability of the system. (When operating in the recommended operating environment.)

Support for various types of systems

This UPS is adaptable to the configuration of high-reliability systems (parallel redundant operation mode, common stand-by operation, etc.), and by applying our own fully independent parallel redundant operation method, which does not have a common control section, parallel redundant operation systems can be constructed. Up to 8 units can be operated in parallel, and large-scale system configurations are supported. In addition, this UPS can be applied to various types of systems such as collective busbar, multiple busbar, common battery and others.

Grid-friendly load transfer function

This function gradually shifts the load to the direct feed (bypass) circuit by controlling the inverter output current when manually switching from the inverter supply to direct feed (bypass) power supply such as for maintenance inspections. This function can suppress abrupt load changes to the grid power side and reduce voltage fluctuations.

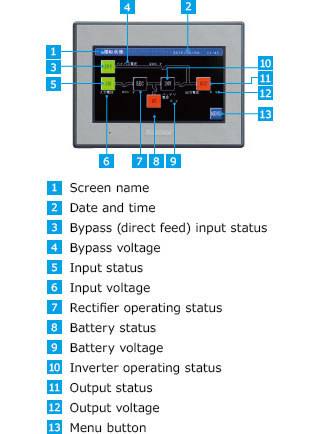

Large touch panel

A large, wide-format 7-inch touch panel is used for operation and display screens. Operation guidance, operation status, and measurements of each part can be checked more easily.

Long-life fans (Expected service life: 15 years *) (option)

Long-life fans with significantly extended expected service life are available as an optional replacement for standard fans (with expected service life of 5 years *). Use of these long-life fans are an effective means of reducing parts replacement costs.

* When the ambient temperature is 25°C and the load factor is 80%.

Enhanced network system (option)

With the installation of an optional Web/SNMP card, it is possible to monitor the status of the UPS using a web browser, receive event notifications by email, perform remote maintenance, shut down multiple servers, and monitor the status using SNMP manager software (JEMA-MIB supported).

Ratings and specifications

Ratings and specifications

Series UPS6000DX
Model T3/100 T3/200 T3/300
Power supply system Online UPS system
Capacity 100kVA/100kW 200kVA/200kW 300kVA/300kW
AC input Number of phases Three-phase, three-wire
Voltage (V) 200/210
Voltage range Startup: rating ±10%
Operation: rating ±15%
Frequency [Hz] 50/60
Frequency fluctuation rate ±5%
Power factor (at rated load) 0.99 min.
Current distortion factor (total harmonic distortion (THD)) (at rated linear load) 3% max.
Maximum input current 385A 770A 1154A
Bypass input Rated voltage [V] Three-phase, three-wire
Rated voltage [V] 200、208、210(220、230、380、400、415、420、440)
Voltage range Rating ±10%
Rated frequency 50/60Hz
Frequency fluctuation rate ±5%
Frequency fluctuation rate 1000% for 1 cycle (ACSW short time)
DC input Rated voltage [V] / number of cells 360 V / 180 cells
Voltage range〔V〕 288 to 401.4
AC output Number of phases Three-phase, three-wire
Rated voltage [V] 200、208、210(220、230、380、400、415、420、440)
Voltage accuracy Within ±1%
Within ±2% (at unbalanced load)
Rated frequency〔Hz〕 50/60
Frequency accuracy (internal oscillation) ±0.01%
Frequency direct feed synchronization range ±1% (Settable range: ±1% to 5%)
Rated load power factor 1.0
Load power factor fluctuation range 0.7 (lag), up to 1.0
Voltage waveform distortion ratio 100% of linear load 2% max.
100% of rectification load 5% max.
Transient voltage fluctuation Abrupt change of load, 0% ⇔ 100% ±4% max.
Abrupt change of input voltage, ±10% ±2% max.
Power outage, power recovery ±1% max.
When switching from bypass to inverter output ±5% max.
When one UPS unit is disconnected ±5% max.
Transient fluctuation stabilization time 50ms
Voltage unbalance ratio (at 100% unbalanced load) Within ±1.0%
Crest factor 2.3
Inverter overload capability 125% for 10 min, 150% for 1 min
Insulation withstand voltage 2000 VAC for 1 min / 3 MΩ or more
Operating temperature 0 to 40℃
Relative humidity 15 to 90%
Altitude 1000 m max.
Standard paint color Munsell 5Y7/1, semi-gloss

Storage battery specifications (service life and backup time)

Storage battery types and overview

A UPS will use storage batteries to supply power when the grid power supply fails. However, it is not economical to provide power from batteries during a long power outage. Normally, batteries are assumed to provide backup power for only a short time, and for long power outages of over 30 minutes, it is more economical to use an in-house emergency power generator.

Although there are various types of storage batteries available for use, mainly for economic reasons UPS systems normally use lead-acid storage batteries with a high rate of discharge. For reference, we provide the following overview comparing typical types of storage batteries.

  Valve-regulated lead-acid storage battery
MSE type UPS special-purpose type
Type MSE Long-life MSE (FVL) High discharge rate (FVH)
Capacity [Ah] 50 to 3,000 50 to 3,000 50, 100, 150: (mono-block type: mFVH)
200, 300: (cell type: FVH)
Expected service life * 5 to 7 years 9 to 12 years 7 to 9 years
Routine maintenance Voltage only Voltage only Voltage only
Remarks Conventionally used for large capacity UPS systems Life-cycle-cost benefits More beneficial than the MSE type in terms of size and cost (enabling space savings).

* Expected service life at ambient temperature of 25°C, for several discharges, at 2.0C10A discharge. (Source: SBAG 0304, Battery Association of Japan)

List of storage battery capacities (standard values) (L = storage battery maintenance rate)

FVH storage battery [L = 0.95 (initial value)]
UPS device capacity Load power factor Power outage coverage time [+ 25°C, F.V. * = 1.6 V / cell]
5 min 10 min 15 min 30 min
100kVA 0.8 100AH 100AH 150AH 200AH
0.9 100AH 100AH 150AH 200AH
1.0 100AH 150AH 150AH 250AH
200kVA 0.8 150AH 200AH 250AH 350AH
0.9 200AH 200AH 250AH 400AH
1.0 200AH 250AH 300AH 450AH
300kVA 0.8 250AH 300AH 350AH 500AH
0.9 250AH 300AH 400AH 600AH
1.0 300AH 350AH 450AH 700AH
FVH storage battery [L = 0.8]
UPS device capacity Load power factor Power outage coverage time [+ 25°C, F.V. * = 1.6 V / cell]
5 min 10 min 15 min 30 min
100kVA 0.8 100AH 150AH 150AH 200AH
0.9 100AH 150AH 150AH 250AH
1.0 150AH 150AH 200AH 250AH
200kVA 0.8 200AH 250AH 300AH 400AH
0.9 200AH 250AH 300AH 450AH
1.0 250AH 300AH 350AH 500AH
300kVA 0.8 300AH 350AH 400AH 600AH
0.9 300AH 350AH 450AH 700AH
1.0 400AH 400AH 500AH 800AH
MSE or long-life MSE storage battery [L = 0.8]
UPS device capacity Load power factor Power outage coverage time [+ 25°C, F.V. * = 1.6 V / cell]
5 min 10 min 15 min 30 min
100kVA 0.8 150AH 200AH 300AH 400AH
0.9 200AH 200AH 300AH 400AH
1.0 200AH 300AH 300AH 400AH
200kVA 0.8 300AH 400AH 500AH 700AH
0.9 400AH 400AH 500AH 700AH
1.0 400AH 500AH 600AH 800AH
300kVA 0.8 500AH 600AH 700AH 1000AH
0.9 600AH 600AH 800AH 1200AH
1.0 600AH 700AH 800AH 1200AH

* F.V.: Discharge cutoff voltage
Note: Please confirm the battery capacity again when requesting an estimate.
Customized solutions other than the above storage batteries are also possible. Please contact our sales department for details.
