Fuel CellsPhosphoric acid fuel cells

Phosphoric acid fuel cells Contribute to modern society,shich requires environmental friendliness

Phosphoric acid fuel cells

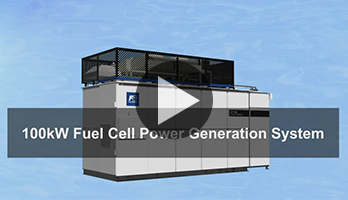

Business use: 100 kW output
Applications: Cogeneration in hospitals, hotels, etc., in sewage treatment plants, for disaster prevention, etc

L2-Tech2020ロゴ

Fuji Electric's fuel cells are certified as Ministry of the Environment's L2-Tech product.

Phosphoric acid fuel cells

Installation example: City gas fuel cell

Actively utilized as a BCPmeasure to supply power at disaster prevention centers
※BCP:business continuity planning

Utilizing city gas produces highly efficient power generation, and contributes to energy-savings and CO2 reduction.

If grid power fails due to a disaster or other reason, the fuel cell will continue to supply the necessary electricity by generating power using city gas.

If the city gas shuts off in addition to a power outage, the fuel cell switches to a reserve supply of LP gas to use for fuel and generates electricity.

Installation example: Biogas type

Effective utilization of renewable energy

Biogas type

Biogas type

Utilizes biogas (including digestion gas) generated by sewage treatment and anaerobic fermentation of organic waste.
Compared to using biogas with boiler fuel, CO2 emissions can be greatly reduced.

Installation example: Pure hydrogen type

New generation method for a future hydrogen energy based society

Pure hydrogen type

図解:純水素タイプ

Direct use of pure hydrogen makes it possible to generate electricity with high efficiency (about 48% gross thermal efficiency) since reforming of the fuel is not required.
Also, CO2 is not generated at all during power generation.

Main Specifications

  City gas type Biogas type Pure hydrogen type
Type Phosphoric acid, normal pressure, water-cooled type (PAFC)
Model FP-100i FP-100iB FP-100iH
Structure Package type
Rated output 105 kW (gross), 100 kW (net)
Operation mode Fully automatic operation, grid interconnection
Size 5.5 m (length) × 2.2 m (width) × 3.4 m (height)
Mass 14t 14t 13.5t
Rated voltage, number of phases, frequency 210/220 VAC, three phases, 50/60 Hz
Heat output Medium temperature, waste heat recovery type:
123kW(15°C ⇒ 60°C)
Medium temperature, waste heat recovery type:
116kW (15°C ⇒ 60°C)
Medium temperature, waste heat recovery type:
99kW(15°C ⇒ 60°C)
Efficiency Power generation efficiency 42% 40% 48%
Total efficiency 91% 84% 93%
Fuel type City gas 13A Biogas
(CH4:60%、CO2:40%)
Pure hydrogen gas (99.9% or more)
Fuel consumption 22m3/h(Normal) 44m3/h(Normal) 74m3/h(Normal)
Environmental performance Exhaust gas NOx: 5 vol.ppm or less
SOx: Not detected
Dust concentration: Not detected
NOx: 5 vol.ppm or less
SOx: Not detected
Dust concentration: Not detected
SOx: Not detected
SOx: Not detected
Dust concentration: Not detected
Noise 65 dB (A) or less
