Main Specifications

		City gas type	Biogas type	Pure hydrogen type
Type		Phosphoric acid, normal pressure, water-cooled type (PAFC)

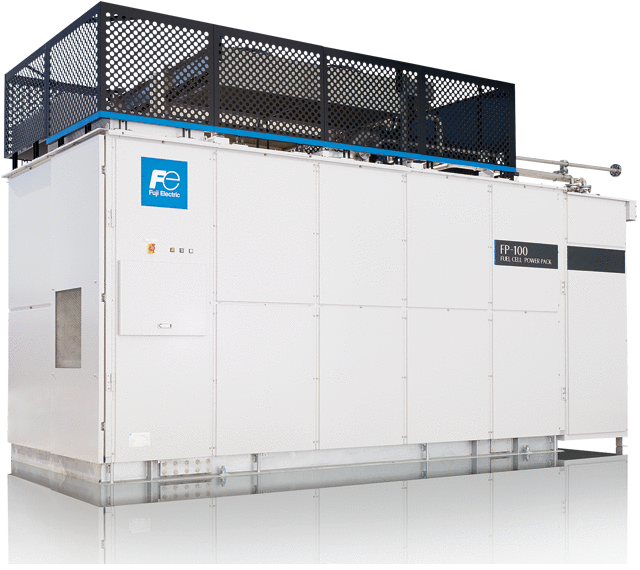

Model		FP-100i	FP-100iB	FP-100iH
Structure		Package type
Rated output		105 kW (gross), 100 kW (net)
Operation mode		Fully automatic operation, grid interconnection
Size		5.5 m (length) × 2.2 m (width) × 3.4 m (height)
Mass		14t	14t	13.5t
Rated voltage, number of phases, frequency		210/220 VAC, three phases, 50/60 Hz
Heat output		Medium temperature, waste heat recovery type: 123 kW (15°C ⇒ 60°C)	Medium temperature, waste heat recovery type: 116 kW (15°C ⇒ 60°C)	Medium temperature, waste heat recovery type: 99 kW (15°C ⇒ 60°C)
Efficiency	Power generation efficiency	42％	40％	48％
Efficiency	Total efficiency	91％	84％	93％
Fuel type		City gas 13A	Biogas (CH₄: 60%, CO₂: 40%) （CH₄:60%、CO₂:40%)	Pure hydrogen gas (99.9% or more)
Fuel consumption		22ｍ³/ｈ(Normal)	44ｍ³/ｈ(Normal)	74ｍ³/ｈ(Normal)
Environmental performance	Exhaust gas	NOx: 5 vol.ppm or less SOx: Not detected Dust concentration: Not detected	NOx: 5 vol.ppm or less SOx: Not detected Dust concentration: Not detected	NOx: Not detected SOx: Not detected Dust concentration: Not detected
Environmental performance	Noise	65 dB (A) or less
