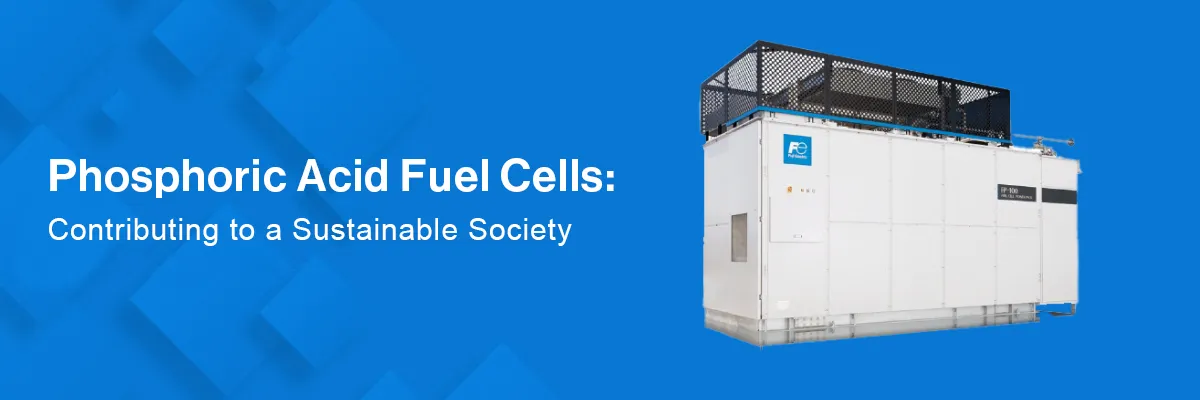

Phosphoric acid fuel cells

Fuel Cells

Phosphoric acid fuel cells

Business use: 100 kW output
Applications: Cogeneration in hospitals, hotels, etc., in sewage treatment plants, for disaster prevention, etc

Fuji Electric's fuel cells are certified as Ministry of the Environment's L2-Tech product.

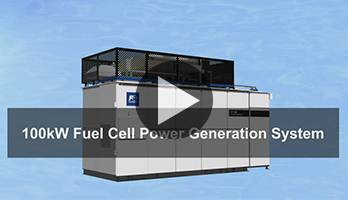

Video

Fuel Cell Power Generation

( 3:38 )

Installation example: City gas fuel cell

Actively utilized as a BCP*measure to supply power at disaster prevention centers

*: BCP：business continuity planning

Utilizing city gas produces highly efficient power generation, and contributes to energy-savings and CO2 reduction.

If grid power fails due to a disaster or other reason, the fuel cell will continue to supply the necessary electricity by generating power using city gas.

If the city gas shuts off in addition to a power outage, the fuel cell switches to a reserve supply of LP gas to use for fuel and generates electricity.

Installation example: Biogas type

Effective utilization of renewable energy

Biogas type

Utilizes biogas (including digestion gas) generated by sewage treatment and anaerobic fermentation of organic waste.
Compared to using biogas with boiler fuel, CO₂ emissions can be greatly reduced.

Installation example: Pure hydrogen type

New generation method for a future hydrogen energy based society

Pure hydrogen type

Direct use of pure hydrogen makes it possible to generate electricity with high efficiency (about 48% gross thermal efficiency) since reforming of the fuel is not required.
Also, CO2 is not generated at all during power generation.

Main Specifications

		City gas type	Biogas type	Pure hydrogen type
Type		Phosphoric acid, normal pressure, water-cooled type (PAFC)
Model		FP-100i	FP-100iB	FP-100iH
Structure		Package type
Rated output		105 kW (gross), 100 kW (net)
Operation mode		Fully automatic operation, grid interconnection
Size		5.5 m (length) × 2.2 m (width) × 3.4 m (height)
Mass		14t	14t	13.5t
Rated voltage, number of phases, frequency		210/220 VAC, three phases, 50/60 Hz
Heat output		Medium temperature, waste heat recovery type： 123kW(15°C ⇒ 60°C)	Medium temperature, waste heat recovery type： 116kW (15°C ⇒ 60°C)	Medium temperature, waste heat recovery type： 99kW(15°C ⇒ 60°C)
Efficiency	Power generation efficiency	42％	40％	48％
Efficiency	Total efficiency	91％	84％	93％
Fuel type		City gas　13A	Biogas （CH₄:60%、CO₂:40%）	Pure hydrogen gas (99.9% or more)
Fuel consumption		22ｍ³/ｈ(Normal)	44ｍ³/ｈ(Normal)	74ｍ³/ｈ(Normal)
Environmental performance	Exhaust gas	NOx: 5 vol.ppm or less SOx: Not detected Dust concentration: Not detected	NOx: 5 vol.ppm or less SOx: Not detected Dust concentration: Not detected	SOx: Not detected SOx: Not detected Dust concentration: Not detected
Environmental performance	Noise	65 dB (A) or less
