Fuel Cells
Hydrogen Fuel Cell System

Key Visual

Toward a decarbonized society

Fuji Electric is dedicated to a decarbonized society by harnessing hydrogen energy, a clean alternative with zero carbon emissions. Our fuel cell solutions provide reliable and efficient power for various applications.

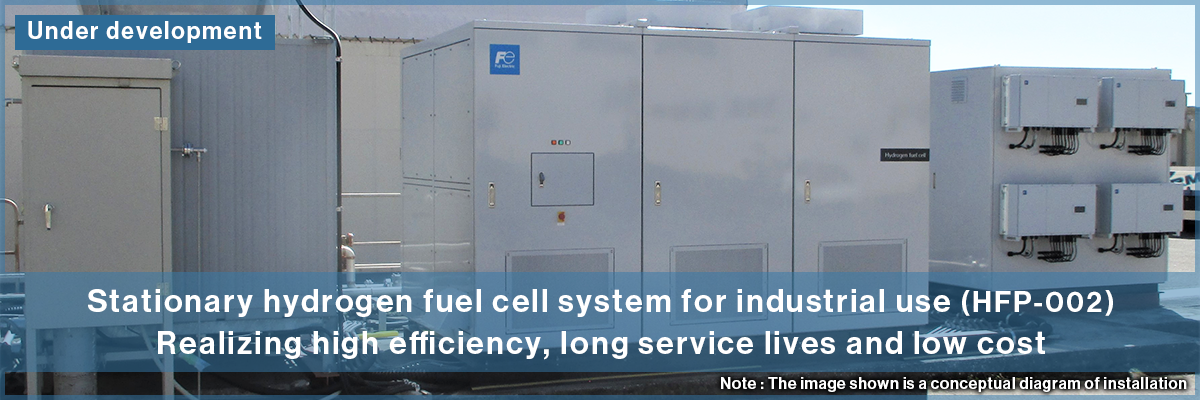

Stationary Hydrogen Fuel Cell Systems for Industrial Use

Our hydrogen fuel cell systems combine advanced technology with practical applications to deliver high efficiency and long service life for industrial power generation.

Key Features

Output 480KW image

・Reduced Initial Costs: Uses automotive fuel cell modules, our solar power conditioning systems and our electrical control equipment for cost efficiency.
・Lower Maintenance Costs: Extended lifespan (Expected life of 10 years) through Fuji Electric's unique operation technology.
・Scalable Design: Modular electrical panel structure enables flexible expansion to meet various power demands.

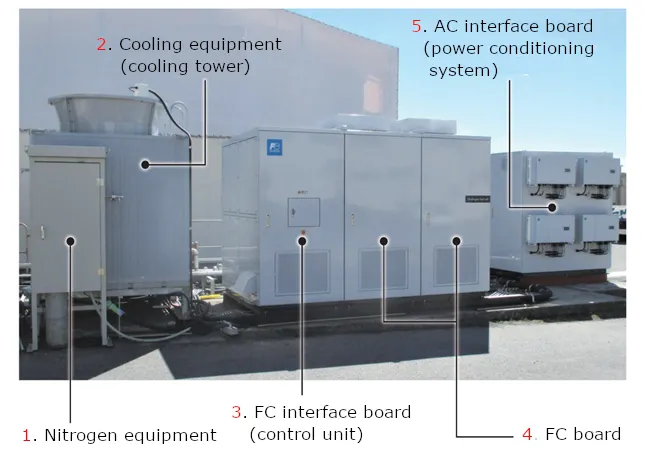

External appearance of the main unit

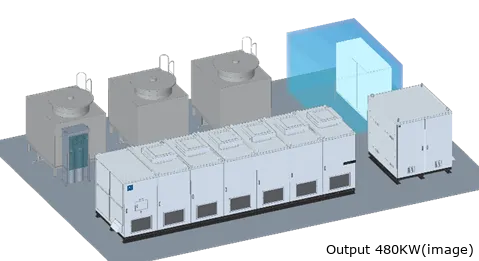

Flexible capacity scalability

1. Nitrogen equipment
2. Cooling equipment
　 (cooling tower)
3. FC interface board
　 (control unit)
4. FC board
5. AC interface board
　(power conditioning
　system)

System specifications (standard)

Item Specifications (development goals)
System PEFC (polymer electrolyte fuel cell)
Fuel Pure hydrogen (ISO 14687)
Pressure: 0.8 MPaG
Maximum flow: 113 Nm3/h
Rated output (transmission end output) 150kW
Voltage and frequency AC 3φ 210V、50/60Hz
Power generation efficiency (transmission end) 50% (LHV) (rated operation)
Thermal output (optional) 60°C (hot water)
Operation method Fully automatic operation
Grid-connected/independent operation
Dimensions (basic configuration) 3.6 m x 2.4 m x 2.6 m (W x D x H)
Startup time 5 minutes or less
Total mass 10 tons or less
