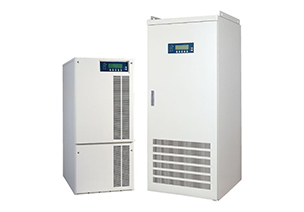

High performance
This online UPS system continually supplies power without interruption at a constant voltage and constant frequency.
Wide capacity series
With six models available from 10 kVA to 50 kVA, users can select the best model for their load system.
Parallel operation possible
Parallel operation of UPS systems can be done easily, such as for capacity expansion to match future load increases and for redundant operation to improve reliability.
High functionality with high reliability
-
Uses a high power factor converter with IGBTs to control the AC input power factor to almost 1.0, and harmonic current suppression control at the same time
-
Power walk-in function reduces shock to input power
-
Battery service life monitoring functions
-
UPS remote monitoring functions by means of monitoring software
-
Network compatible functions when using network agent card

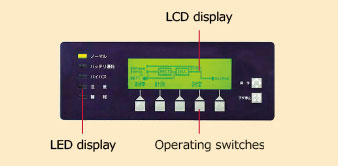

User-friendly operation panel
-
Uses an LCD panel for character display
-
System display shows operating status at a glance, LED status display
-
Soft-key screen navigation
-
Checking of events and history possible
Extensive options
-
Monitoring software (Power-SOL UPS station)
-
-
Various peripheral panels, battery options
Basic specification (single unit specification)
Series |
UPS6100D-3/10 |
UPS6100D-3/15 |
UPS6100D-3/20 |
UPS6100D-3/30 |
UPS6100D-3/40 |
UPS6100D-3/50 |
Rated output capacity |
10kVA |
15kVA |
20kVA |
30kVA |
40kVA |
50kVA |
8kW |
12kW |
16kW |
24kW |
32kW |
40kW |
Operation method |
Online UPS system (grid-synchronized uninterruptible power supply), parallel redundant operation also possible |
AC input |
Number of phases |
3 phases, 3 wires |
Voltage fluctuation range |
200/210 V (factory preset) ±10% |
Frequency fluctuation range |
50/60 Hz (factory preset) ±3 Hz |
Power factor (at rated load) |
0.97 or more |
0.98 or more |
Maximum input capacity |
10.5kVA |
16kVA |
21kVA |
31kVA |
41kVA |
50kVA |
Direct feed input |
Number of phases |
3 phases, 3 wires |
Voltage |
Same as AC output voltage |
DC circuit |
Nominal voltage |
360 V (equivalent to a 180-cell lead-acid storage battery with 2 V per cell) |
AC output |
Number of phases |
3 phases, 3 wires |
Voltage |
200/210 V (factory preset) |
Frequency |
50/60 Hz (factory preset) |
Load power factor |
Load power factor 0.7 (delay) to 1.0 (rated 0.8 delay). Rated 0.9 delay specification can also be manufactured. |
Voltage accuracy (settling time) |
±1.5% |
Frequency accuracy |
±0.05Hz (at free-running oscillation) |
Synchronization frequency range |
±0.5 Hz / ±1 Hz (default setting) / ±2 Hz |
Transient voltage fluctuation |
±5% or less |
Same as the above settling time |
50 ms or less |
Voltage waveform distortion ratio |
3% or less (linear load), 5% or less (rectifier load) |
Overload tolerance |
101 to 110%: 10 min, 111 to 125%: 1 min, 126 to 150%: 10 sec |
Other values |
Ambient temperature |
0 to +40°C (Temperatures over +25°C decrease battery service life expectancy.) |
Relative humidity |
10 to 90% (non-condensing) |
Withstand voltage |
2,000 VAC, 1 minute (main circuit) |
Insulation resistance |
3 MΩ or more |
Noise |
about 60 dB (A) |
about 65 dB (B) |
Communication functions |
Contact system functions |
Signal output of no-voltage normally open contact (e.g., batch warning, batch alarm), signal input (e.g., start, stop, EG operation, emergency stop) |
Network communication functions |
Possible with addition of network agent card (option) |
X slots for communication functions |
4 slots (2 of the 4 slots are used for parallel systems) |
UPS management functions*1 |
Log function (events), log function (measurement values), warning notification function (email communication) |
-
*1
-
Monitoring software (Power-SOL UPS station) is required to use UPS management functions. (option)
-
Note
-
AC output specifications during parallel redundant operation will vary depending on the system.

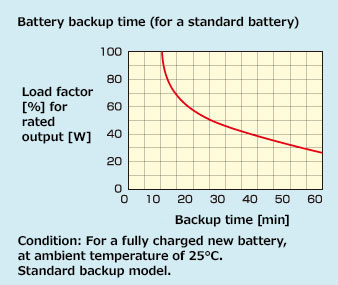

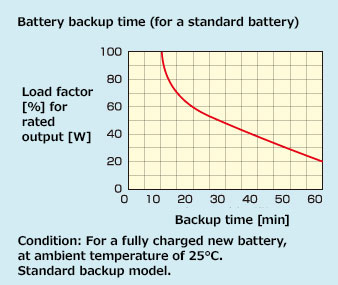

Batteries (service life and backup time)
10 to 20 kVA
UPS capacity |
10kVA |
15kVA |
20kVA |
Type |
Lead-acid storage battery, service life expectancy: 5 years (initial value, standard) |
Power outage backup time *1 |
Standard: 10 min |
Nominal voltage |
360 V (using 12 V batteries): equivalent to 180 cells |
Float voltage |
410V |
Single battery capacity × number of cells |
12Ah×30 |
12Ah×60 |
Total capacity |
2,160 Ah/cell |
4,320 Ah/Cell |
Ventilation volume |
0.1m3/min |
0.3m3/min |
-
*1
-
At initial use of battery, at ambient temperature of 25°C, and at rated load.
-
Note 1
-
Total battery capacity [Ah/cell] = battery capacity × number of cells (180 cells)
-
Note 2
-
The Fire Prevention Ordinance is applicable to battery capacities of 4,800 Ah/cell or more. For such batteries, notification to the local fire department and installation of ventilation equipment are required. (For this UPS capacity, the Fire Prevention Ordinance is not applicable in standard battery applications.)。
Customizations other than the above battery are also possible. Please contact us for more information.
30 to 50 kVA
UPS capacity |
30kVA |
40kVA |
50kVA |
Type |
Lead-acid storage battery, service life expectancy: 5 years (initial value, standard) |
Power outage backup time *1 |
Standard: 9, 10 min |
Standard: 9, 10 min |
Nominal voltage |
360 V (using 12 V batteries): equivalent to 180 cells |
Float voltage |
410V |
Single battery capacity × number of cells |
9 min: 24 Ah × 30 |
40Ah×30 |
10 min: 40 Ah × 30 |
Total capacity [Ah/cell] |
9 min: 4320 |
7200 |
10 min: 7200 |
Ventilation volume [m3/min] |
9 min: 0.3 |
0.5 |
10 min: 0.5 |
-
*1
-
At initial use of battery, at ambient temperature of 25°C, and at rated load.
-
Note 1
-
Total battery capacity [Ah/cell] = battery capacity × number of cells (180 cells)
-
Note 2
-
The Fire Prevention Ordinance is applicable to battery capacities of 4,800 Ah/cell or more. For such batteries, notification to the local fire department and installation of ventilation equipment are required.
Customizations other than the above battery are also possible. Please contact us for more information.
High-spec model specification (standard battery)
Series |
UPS6100DH-3/30 |
UPS6100DH-3/40 |
UPS6100DH-3/50 |
Rated output capacity |
30kVA |
40kVA |
50kVA |
27kW |
36kW |
45kW |
AC input |
Number of phases |
3 phases, 3 wires |
Rated voltage |
200/210 V (factory preset) |
Voltage fluctuation range |
Within ±10% |
Rated frequency |
50/60 Hz (factory preset) |
Frequency fluctuation range |
Within ±3 Hz |
Power factor (at rated load) |
0.97 or more |
Maximum input capacity |
33kVA |
43kVA |
53kVA |
UPS body |
System |
Operation method |
Online UPS system (grid-synchronized uninterruptible power supply) |
Cooling method |
Forced air cooling |
Overload tolerance |
Continuous (101 to 110%: 30 min, 111 to 125%: 10 min, 126 to 150%: 1 min) |
AC output |
Number of phases |
3 phases, 3 wires |
Rated voltage |
200/210 V (factory preset) |
Voltage accuracy |
±1%以内 |
Rated frequency |
50/60 Hz (factory preset) |
Frequency accuracy |
Within ±0.05 Hz (at free-running oscillation) |
Synchronization frequency range |
±0.5 / ±1 Hz (default setting), within ±2 Hz |
Transient voltage fluctuation |
±5% or less |
Same as the above settling time |
50 ms or less |
Voltage waveform distortion ratio |
3% or less (linear load), 5% or less (rectifier load) |
Load power factor |
0.9 (delay 0.7 to 1.0) |
Battery |
Retention time |
Standard: 10 min (Battery initial value, at ambient temperature of 25°C, and at rated load.) |
Type |
Lead-acid storage battery, service life expectancy: 5 years (initial value, standard) |
Voltage |
360 V (equivalent to 180-cell lead-acid storage battery) |
Noise |
about 65 dB (A) |
about 70 dB (A) |
Heat generation quantity |
12020kJ/h(3.34kW) |
16020kJ/h(4.45kW) |
20030kJ/h(5.56kW) |
Usage environment |
Ambient temperature |
0 to +40℃ |
Relative humidity |
10 to 90% (non-condensing) |
External dimensions *1 |
UPS body (W × D × H) |
700×750×1650 mm |
Battery panel (W × D × H) |
500×750×1650 mm |
600×750×1650mm |
Mass |
UPS body |
about 610 kg |
Battery panel |
about 800 kg |
about 1,250 kg |
Communication functions |
Contact system |
Yes |
Serial data communication functions |
Yes |
X slots for communication functions |
Yes (4 slots) |
UPS management functions*2 |
Log function (events), log function (measurement values), warning notification function (email communication)
Alarm notification function (modem command communication), warning notification function (user command communication) |
-
*1
-
Height (H) dimension of external dimensions includes 50 mm for the channel base.
-
*2
-
Monitoring software (Power-SOL UPS station) is required to use UPS management functions. (option)
-
Note
-
AC output specifications during parallel redundant operation will vary depending on the system.
High-spec model specification: 10 min backup (standard battery)
UPS model |
UPS6100DH-3/30 |
UPS6100DH-3/40 |
UPS6100DH-3/50 |
UPS capacity |
30kVA |
40kVA |
50kVA |
Unit capacity |
40Ah |
70Ah |
Number |
30 |
External dimensions (W × D × H) |
500×750×1650mm |
600×750×1650mm |
Mass |
about 800 kg |
about 1,200 kg |
Fire Prevention Ordinance*1 (● mark indicates notification required.) |
● |
● |
-
*1
-
The Fire Prevention Ordinance is applicable to battery capacities of 4,800 Ah/cell or more. For such batteries, notification to the local fire department and installation of ventilation equipment are required.
Customizations other than the above battery are also possible. Please contact us for more information.
