Food and Beverage Distribution
CAN＆PET

CAN＆PET
Standard Size
FVM-CP24
Serpentine 24
FVM-CP24

H1,830×W1,225×D805mm
24 Selection/24 Buttons
Total 363-408 pcs
LCD 21.5-Inch

FVM-CP23B2NIC-ZHFB-1
Serpentine 23
FVM-CP23B2NIC-ZHFB-1

H1,830×W1,165×D805mm
23 Selection/24 Buttons
Total 346-410 pcs
LCD 23.6-Inch

FVM-CP23B2NIC-ZSZN-6
Serpentine 23
FVM-CP23B2NIC-ZSZN-6

H1,830×W1,165×D805mm
23 Selection/24 Buttons
Total 346-410 pcs
LCD 23.6-Inch

FVM-CP23B2NIC-ZSZN-5
Serpentine 23
FVM-CP23B2NIC-ZSZN-5

H1,830×W1,165×D805mm
23 Selection/24 Buttons
Total 346-410 pcs
LCD 7-Inch

FVM-CP18-B2NIT-ZSZN-2
Serpentine 18
FVM-CP18-B2NIT-ZSZN-2

H1,830×W1,165×D624mm
18 Selection/24 Buttons
Total 256-320 pcs
LCD 23.6-Inch

FVM-CP18-B2PIT-ZSZN-1
Serpentine 18
FVM-CP18-B2PIT-ZSZN-1

H1,830×W1,165×D624mm
18 Selection/24 Buttons
Total 256-320 pcs
LCD 7-Inch

FVM-CP11-B1NSC-KLV-1
Serpentine 11
FVM-CP11-B1NSC-KLV-1

H1,830×W870×D625mm
11 Selection (no buttons)
Total 105-195 pcs
LCD None

FAG16A4WZ9OY-TH1
Glass Bottle
FAG16A4WZ9OY-TH1

H1,830×W690×D530mm
16 Selection/12 Buttons
Total 312 bottles roughly
LCD None

Large Size
FVM-CP36-FET-VP-1
Serpentine 36
FVM-CP36-FET-VP-1

H1,830×W1,330×D825mm
36 Selection/36 Buttons
Total 540-714 pcs
LCD 7-Inch

FVM-CP33-B2NIT-SHMY-3
Serpentine 33
FVM-CP33-B2NIT-SHMY-3

H1,830×W1,425×D805mm
33 Selection/36 Buttons
Total 420-540 pcs
LCD 10-Inch

FVM-CP30
Serpentine 30
FVM-CP30

H1,830×W1,425×D805mm
30 Selection/36 Buttons
Total 363-510 pcs
LCD 21.5-Inch

FVM-CP28-B2NIT-SHTY-3
Serpentine 28
FVM-CP28-B2NIT-SHTY-3

H1,830×W1,425×D805mm
28 Selection/36 Buttons
Total 420-540 pcs
LCD 32-Inch

FVM-CP28D2NIC-HDSN-1
Serpentine 28
FVM-CP28D2NIC-HDSN-1

H1,830×W1,425×D805mm
28 Selection/36 Buttons
Total 332-494 pcs
LCD None

FVM-CP27B2NIC-KSFU-1
Serpentine 27
FVM-CP27B2NIC-KSFU-1

H1,830×W1,425×D805mm
31 Selection/36 Buttons
Total 343-433 pcs
LCD 23.6-Inch

Inquiry Form

Please feel free to contact us.

Standard Size

Serpentine 24
FVM-CP24

Button Arrangement

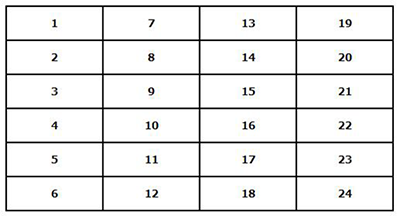

Column No. & rack configuration
Machine type CAN & PET Beverage Vending Machine
Model FVM-CP24
Dimensions H1,830×W1,225×D805mm
Machine weight 309kg
Selection 24 selection, 24 buttons
Communication I/F MDB
LCD 21.5-inch
Bottle capacity Sleek Can (330ml) 408 pcs
Sleek Can (330ml) + PET (500ml) 375 pcs
PET Only (500ml) 363 pcs
Total: 363 ~ 408 pcs.
Lighting LED
Refrigerant R-1234yf
Annual power consumption 8.2 kW･h
Power supply 220V (50Hz)

Serpentine 23
FVM-CP23B2NIC-ZHFB-1

Button Arrangement
Column No. & rack configuration
Machine type CAN & PET Beverage Vending Machine
Model FVM-CP23B2NIC-ZHFB-1
Dimensions H1,830×W1,165×D805mm
Machine weight 307kg
Selection 23 selection / 24 buttons
Communication I/F MDB
LCD 23.6-inch
Bottle capacity 90pcs. (160~355ml)
180pcs. (250ml~500 ml)
76pcs. (600 ml)
Total: 346~410pcs.
Lighting LEDx3
Refrigerant R-134a
Annual power consumption 6.3kW･h
Power supply 220V (50Hz)

Serpentine 23
FVM-CP23B2NIC-ZSZN-6

Button Arrangement
Column No. & rack configuration
Machine type CAN & PET Beverage Vending Machine
Model FVM-CP23B2NIC-ZSZN-6
Dimensions H1,830×W1,165×D805mm
Machine weight 300kg
Selection 23 selection / 24 buttons
Communication I/F MDB
LCD 23.6-inch
Bottle capacity 90pcs. (160~355ml)
180pcs. (250ml~500 ml)
76pcs. (600 ml)
Total: 346~410pcs.
Lighting LED
Refrigerant R-134a
Annual power consumption 6.3kW･h
Power supply 220V (50Hz)

Serpentine 23
FVM-CP23B2NIC-ZSZN-5

Button Arrangement
Column No. & rack configuration
Machine type CAN & PET Beverage Vending Machine
Model FVM-CP23B2NIC-ZSZN-5
Dimensions H1,830×W1,165×D805mm
Machine weight 295kg
Selection 23 selection / 24 buttons
Communication I/F MDB
LCD 7-inch
Bottle capacity 90pcs. (160~355ml)
180pcs. (250ml~500 ml)
76pcs. (600 ml)
Total: 346~410pcs.
Lighting LED
Refrigerant R-134a
Annual power consumption 6.3kW･h
Power supply 220V (50Hz)

Serpentine 18
FVM-CP18-B2NIT-ZSZN-2

Button Arrangement
Column No. & rack configuration
Machine type CAN & PET Beverage Vending Machine
Model FVM-CP18-B2NIT-ZSZN-2
Dimensions H1,830×W1,165×D624mm
Machine weight 250.7kg
Selection 18 selection / 24 buttons
Communication I/F MDB
LCD 23.6-inch
Bottle capacity 120 pcs.(160~355ml)
112pcs. (250ml~500 ml)
24pcs. （600 ml ）
Total: 256~320 pcs.
Lighting LED
Refrigerant R-134a
Annual power consumption 5.8kW･h
Power supply 220V (50Hz)

Serpentine 18
FVM-CP18-B2PIT-ZSZN-1

Button Arrangement
Column No. & rack configuration
Machine type CAN & PET Beverage Vending Machine
Model FVM-CP18-B2PIT-ZSZN-1
Dimensions H1,830×W1,165×D624mm
Machine weight 247kg
Selection 18 selection / 24 buttons
Communication I/F MDB
LCD 7-inch
Bottle capacity 120 pcs.(160~355ml)
112pcs. (250ml~500 ml)
24pcs. （600 ml ）
Total: 256~320 pcs.
Lighting LED
Refrigerant R-134a
Annual power consumption 5.8kW･h
Power supply 220V (50Hz)

Serpentine 11
FVM-CP11-B1NSC-KLV-1

Column No. & rack configuration
Machine type CAN & PET Beverage Vending Machine
Model FVM-CP11-B1NSC-KLV-1
Dimensions H1,830×W870×D625mm
Machine weight 170kg
Selection 11 selection (no buttons)
Communication I/F RS-232C
LCD None
Bottle capacity Sleek can (330ml) 184pcs
Sleek can (330ml) +PET (500ml) 184pcs
PET only (500ml) 105pcs
Total：105~195pcs
Lighting -
Refrigerant R-134a
Annual power consumption 5.8 kW・h
Power supply 220V (50Hz)

Glass Bottle
FAG16A4WZ9OY-TH1

Button Arrangement
Column No. & rack configuration
Machine type Glass Bottle Beverage Vending Machine
Model FAG16A4WZ9OY-TH1
Dimensions H1,830×W690×D530mm
Machine weight Approx. 210kg
Selection 16 selection / 12 buttons
Communication I/F MDB
LCD None
Bottle capacity 312 bottles roughly
Lighting LED
Refrigerant R134a
Annual power consumption 1,000kwh/year
Power supply 220-240V (50Hz)
Large Size

Serpentine 36
FVM-CP36-FET-VP-1

Button Arrangement
Column No. & rack configuration
Machine type CAN & PET Beverage Vending Machine
Model FVM-CP36-FET-VP-1
Dimensions H1,830×W1,330×D825mm
Machine weight 345kg
Selection 36 selection / 36 buttons
Communication I/F MDB/RS232 (DSI)
LCD 7-Inch
Bottle capacity φ53mm (Can) Total 690 - 714 pcs
φ66mm (Can) Total 540 pcs
Lighting LED
Refrigerant R-1234yf
Annual power consumption Approx. 1,780kW･h/year
Power supply 220V (50Hz)

Serpentine 33
FVM-CP33-B2NIT-SHMY-3

Button Arrangement
Column No. & rack configuration
Machine type CAN & PET Beverage Vending Machine
Model FVM-CP33-B2NIT-SHMY-3
Dimensions H1,830×W1,425×D805mm
Machine weight 360kg
Selection 33 selection / 36 buttons
Communication I/F MDB
LCD 10-inch
Bottle capacity 246pcs. (160~355ml)
180pcs. (250ml~500 ml)
76pcs. (600 ml)
Total: 420~540pcs.
Lighting LED
Refrigerant R-1234yf
Annual power consumption 7.36kW･h
Power supply 220V (50Hz)

Serpentine 30
FVM-CP30

Button Arrangement
Column No. & rack configuration
Machine type CAN & PET Beverage Vending Machine
Model FVM-CP30
Dimensions H1,830×W1,425×D805mm
Machine weight 362kg
Selection 30 selection / 36 buttons
Communication I/F MDB
LCD 21.5-inch
Bottle capacity Sleek Can (330ml) 510 pcs
Sleek Can (330ml) + PET (500ml) 477 pcs
PET Only (500ml) 363 pcs
Total: 363 ~ 510 pcs.
Lighting LED
Refrigerant R-1234yf
Annual power consumption 5.26 kW･h
Power supply 220V (50Hz)

Serpentine 28
FVM-CP28-B2NIT-SHTY-3

Button Arrangement
Column No. & rack configuration
Machine type CAN & PET Beverage Vending Machine
Model FVM-CP28-B2NIT-SHTY-3
Dimensions H1,830×W1,425×D805mm
Machine weight 370kg
Selection 28 selection / 36 buttons
Communication I/F MDB
LCD 32-inch
Bottle capacity 90pcs. (160~355ml)
180pcs. (250ml~500 ml)
152pcs. (600 ml)
Total: 420~540pcs.
Lighting LED
Refrigerant R-134a
Annual power consumption 7.3kW･h
Power supply 220V (50Hz)

Serpentine 28
FVM-CP28D2NIC-HDSN-1

Button Arrangement
Column No. & rack configuration
Machine type CAN & PET Beverage Vending Machine
Model FVM-CP28D2NIC-HDSN-1
Dimensions H1,830×W1,425×D805mm
Machine weight 409kg
Selection 28 selection / 36 buttons
Communication I/F MDB
LCD None
Bottle capacity Sleek Can (160-350ml) 494 pcs
Sleek Can (160-350ml) + PET (250-500ml) 436pcs
PET Only (500ml) 332 pcs
Total: 332 ~ 494 pcs.
Lighting LED
Refrigerant R-134a
Annual power consumption 7.3 kW･h
Power supply 220V (50Hz)

Serpentine 27
FVM-CP27B2NIC-KSFU-1

Button Arrangement
Column No. & rack configuration
Machine type CAN & PET Beverage Vending Machine
Model FVM-CP27B2NIC-KSFU-1
Dimensions H1,830×W1,425×D805mm
Machine weight 408kg
Selection 31 selection / 36 buttons
Communication I/F MDB
LCD 23.6-inch
Bottle capacity Sleek can (330ml) 351pcs
Sleek can (330ml) + PET (500ml) 433pcs
PET only (500ml) 343pcs
Total：343~433pcs
Lighting LEDx3
Refrigerant R-134a
Annual power consumption 7.45 kW・h
Power supply 220V (50Hz)
Type of Serpentine Column
Factory Serpentine rack Setting F・M1 column M2～B column
Type Colum Width (mm) Package height Package diameter Package height Package diameter
MIE B 146.5 Small 97～145.5 φ45.0～φ50.0 ― ―
Standard 97～145.5 φ51.0～φ69.0 104～139 φ51.0～φ69.0
MIE BD 146.5 Small 104～145 φ43.0～φ49.9 104～145 φ43.0～φ49.9
Standard 104～145 φ50.0～φ66.0 104～145 φ50.0～φ66.0
MIE P2 220
(including adjsutable side plate)		 Small 97～212 φ45.0～φ50.0 ― ―
Standard 97～212 φ51.0～φ69.0 104～212 φ51.0～φ69.0
MIE P1 237
(including adjustable side plate)		 Small 97～229 φ45.0～φ50.0 ― ―
Standard 97～229 φ51.0～φ69.0 104～229 φ51.0～φ69.0
DFB B1 156.5 Small 104～155 φ47.0～φ53.0 ― ―
Standard 104～155 φ53.0～φ70.0 114～149 φ53.0～φ70.0
DFB P1 237
(including adjustable side plate)		 Small 125～229 φ47.0～φ53.0 ― ―
Standard 125～229 φ53.0～φ70.0 125～229 φ53.0～φ70.0
DFB P3 275
(including adjustable side plate)		 Standard 146～265 φ53.0～φ67.0 146～265 φ53.0～φ70.0
Large 146～265 φ67.0～φ75.0 ― ―
DFB P0 300
(including adjustable side plate)		 Standard 175～270 ※ φ53.0～φ69.0 175～270 φ53.0～φ69.0
Large 175～270 ※ φ69.0～φ74.5 175～270 φ69.0～φ74.5

※ Standard P0 column (not 2in1 column)

  • Above is approximate measurement applicable for cylindrical CAN container, and thus, it may differ (not applicable) for different type of container like bottles made of PET, glass, and so on.

  • Some products may not be suitable for sales even if the dimensions are within the listed range blow, depending on the strength, shape, surface slipperiness of the container, total weight of the product, etc.

  • Please refer the lower limit of each dimension as rough indication, since it is greatly affected by the strength and shape of the container.
