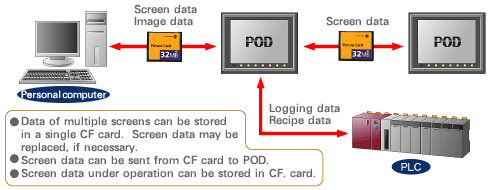

| Screen management by CF card |
|
 |
| Use of CF card facilitates screen data management. |
|
 |
|

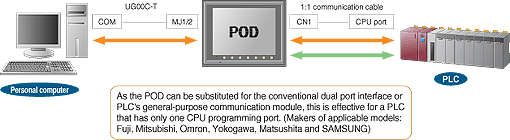

| Ladder transfer function |
|
|
| By connecting the PLC programming tool to the POD, the PLC program can be read/written or monitored via the POD. |
|
 |
|

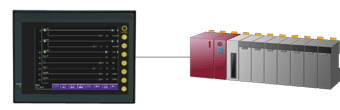

| Ladder monitor function |
|
|
|
 |
Equipping with the extension memory cassette (UG30P-LM) for ladder monitor, the screen of the UG30 unit can be used to monitor ladder diagrams and I/O areas of the PLC. During monitoring a ladder diagram, you can call out the desired ladder by specifying a step number, and also make a search by specifying an address. When you click an error message, you can search and display the coil corresponding to the bit.
[Corresponding PLC models]
■Fuji : MICREX-SX (Standard loader)
■Fuji : FLEX-PC (Standard loader)
■Mitsubishi : MELSEC-Q (except for Q00J/00/01)
|
|
|
|
