Familiar user interface
The user interface and ladder programming support SPB programming equivalent to a FLEX-PC Windows-compatible PC loader.
Support for full-keyboard operation is also handy for on-site debugging and maintenance. With a whopping 202 different instruction words, the possibilities for your programs are limited only by your imagination.
Compatible with the international standard IEC 61131-3
Program representations support the LD language, which is most standard. The ST and FBD programming languages are also supported. Programming in units of POU in which the structured design method is applicable can be performed.
Intuitive screen operation
The easy-to-see and understandable layout enables you to intuitively operate the screen.
Supports a variety of input methods
Standard supports three input methods, and you can select the optimum input method for the situation.

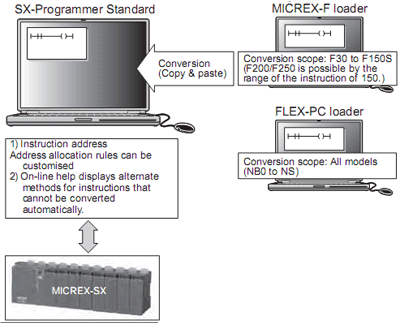

Leverage your program assets
You can make good use of program assets for the MICREX-F and FLEX-PC series of our PLC. For circuits and commands not supported by Standard, alternative methods are described in the Help section.
Resume feature
When the software is started, the previous edit/monitor position is automatically displayed.
When you go on-line, monitoring starts at the position you were monitoring last time. When you are off-line, the system transitions to edit mode displaying the point you were editing last time.
CPU modules not supported
Standard is not compatible with the SPH300EX, and the SPH3000.
Device Editor
Device information is displayed on a single screen, for example, in the form of a list of the operating states of devices, enabling you to save time in memory management.
Data access to the user ROM
Projects can be downloaded from/uploaded to the user ROM card (compact fash card) supplied with SPH300 (NP1PS-□□R),SPH2000. Also, data can be written into/read from the user ROM card.
Collation function
With the collation function, you can display the details of different points in programs and edit by referring to the collation results.
Password function
By setting an access authentication password for on-line functions, operation of the PLC can be limited to three levels, i.e., level 1, level 2, and level 3.
Item | Specification | |
---|---|---|
Hardware | IBM-PC/AT compatible | |
CPU | Intel Pentium 233MHz or higher (350MHz or higher recommended) | |
Hard disk | Free space of 200M bytes or more | |
CD-ROM unit | 1 unit (x 4 speed or faster), media: ISO 9660 format | |
Memory capacity | 64M bytes or more (256M bytes or more recommended) | |
Keyboard | 101 keyboard | |
Mouse | USB mouse, bus mouse, or PS2 mouse | |
Indicator | 800 x 600-dots resolution or higher (1024 x 768-dots resolution or higher recommended) | |

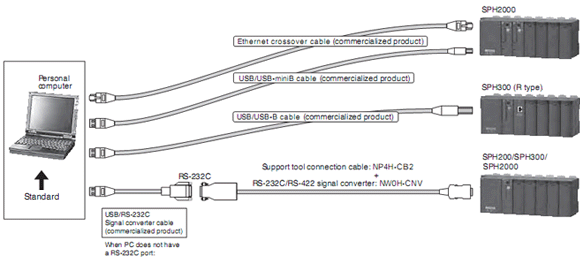

Communication interface | RS-232C | 9600bps-57600kbps (default setup according to resource model selection) |
Ethernet | Possible | |
ISDN | Possible (analog port is used) | |
USB | Possible with V1.1 (Target CPU: NP1PS-□□R, SPH2000) | |
P/PE-link | Possible | |
SX bus | Possible | |
FL-net | Possible | |
OS | Windows2000/XP/Vista | |
Portability | Depends on commercial mobile personal computer. | |
Environmental durability | Depends on environmental conditions of commercial personal computer. |
