Linear motor driven type

Linear motor driven type door system establishing best performance record in urban commuter trains

Linear motor driven type (1 drive unit / 1 doorway)

• Accurate performance in obstacle detection
• High reliability and safety design
• Intelligent failure diagnosis function
• Efficient maintainability and serviceability
• Low-friction mechanism for easy manual door operation in emergency and maintenance

Passenger door for Taipei MRT Xinyi/Songshan line CR381 train

Unify structure for easy installation and adjustment.

Revenue service started in : 2012
Lines of operation : Xinyi/Songshan line

Thrust	150 N max.
Stroke	750 mm/panel
Moving speed	0.35 m/s
Power supply voltage	110 V DC
Control method	Sinusoidal PWM
Function	Monitoring function, serial transmission, etc

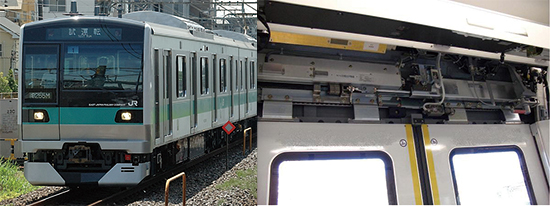

Passenger door for JR-East series E233 train

Standby redundant control system to provide without malfunction in case of accidental failure.

Revenue service started in: March, 2008
Lines of operation : Tokaido line, Joban line (local service), Shonan-Shinuku line, Keiyo line, Tohoku-Jukan line, Saikyo line, Yokohama line

Thrust	40 N (500 N max.)
Stroke	650 mm
Moving speed	0.36 m/s max.
Power supply voltage	100 V DC
Control method	Sinusoidal PWM
Function	Monitoring function, serial transmission, etc
