| RGB input function |
UG30A-RIS is required.
(UG00A-RIS for UG630) |
|
 |
|
 |
| A single POD can display either its normal screen or a personal computer screen, with its switching operation. This contributes to space and cost savings of the system. The mouse function of the personal computer can also be realized on the POD screen using the analog touch panel function.* |
|
|
| RGB output function |
(UG30A-ROS is required.)
(UG00A-ROS for UG630) |
|
|
|
 |
| The POD screen can be displayed on a monitor available in the market. |
|
|

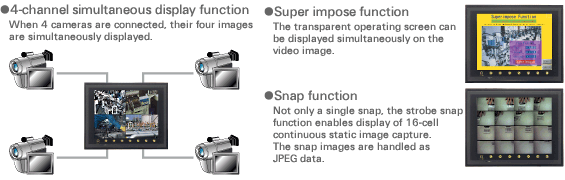

| Video input function |
(UG30A-VIS is required.)
(UG00A-VIS for UG630) |
|
|
| Images of the connected digital video camera or CCD camera can be displayed on the UG30 as they are. |
|
 |
|
| Audio output function |
UG30A-RIS, ROS, VIS or SUD is required.
(UG00A-RIS, ROS, VIS or SUD for UG630) |
|
|
|
 |
| The POD screen can be displayed on a monitor available in the market. |
|
|
| Conforms to 1D and 2D bar code |
|
|
| The UG30 can reed out data by connecting 2D bar code scanner, in addition to 1D bar code scanning.(Only UG30 conforms to 2D bar code) |
|
|
| Compatible with printers |
|
|
|
 |
| In addition to conventional MS-DOS printers, the UG30 series can be connected with Windows-based EPSON PM Series color ink-jet printers and compact printer CBM292/293 supplied by CBM. |
|
|

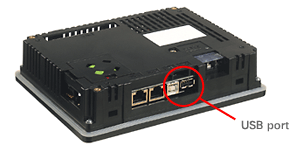

| Conforms to USB interface as standard |
|
|
|
 |
| USB master and slave interfaces are included as standard equipment. These increase on-site utility by allowing connection to a USB-equipped printers (such as EPSON PM Series) or commercially available CF card recorders. It also lets you transfer large-capacity screen data at a high speed. |
|
|
|
