Realizes High-Speed Advanced Machine Control

Ultra-high-speed 1 ms controller

1 ms scan

  • Program scan time of 1ms is implemented by increased instruction processing speed.
  • Real number operation and high-precision positioning control have been put to practical use by dramatically improved floating-point operation speed.
Basic instruction LD6ns9ns20ns30ns70ns
Floating Operation instruction66ns88ns80ns270ns56000ns

*For details on each instruction word's processing speed and tact cycle, see the User's Manual (FEH200).

1 ms I/O refreshing

  • 1024 points of I/O is refreshed in 1 ms.
  • Tact control assures a fixed I/O refresh interval. The I/O refresh cycle can be set to 1 ms, 2 ms, or up to 10 ms, which is suitable for processing requiring strict tact time.
  • The minimum tact times of SPH3000MM, SPH300, and SPH2000/SPH3000 can be set at 0.25 ms, 0.5 ms, and 1 ms, respectively.
1 ms I/O refreshing

Tact cycle

E-SX bus

Tact cycle0.25ms0.375ms0.5ms1ms1.5ms2ms
Max. I/O size
(Number of I/O stations)
4 stations67word256word512word2048word2048word4096word
16 stations--256word1024word1024word1024word
32 stations---512word2048word2048word
64 stations----512word1024word

SX bus

Tact cycle0.25ms0.375ms0.5ms1ms1.5ms2ms
Max. I/O size--64word128word256word512word

Controller conforms to International Standard

Conforms to IEC 61131 international standard

  • Both the hardware and software conform to the IEC 61131 international standard for programmable controllers.
  • The programming language conforms to the IEC 61131-3 international standard.

Conforming to international standard

  • Conforms to the CE marking, UL standards and RoHS directive (conforming one after another) as well as IEC standard.
  • It also complies with the NK marine standard (Japan) and the LR (specifications of Lloyd's Register of Shipping, UK).
Conforming to international standard

Multi-CPU system applicable to up to 8 CPUs

Parallel processing with up to 8 CPUs (SPH300/SPH2000/SPH3000/SPH3000D)

  • Alleviates the load for each CPU allowing high-speed processing of a large application program. For example, the load can be distributed for advanced processing and sequence control processing with additional CPUs. I/O refresh control is performed automatically even if parallel processing by multiple CPUs is performed.
Parallel processing with up to 8 CPUs (SPH300/SPH2000/SPH3000/SPH3000D)

Redundant System Brings System Safety and Reliability

1:1 warm-standby feature (SPH300/SPH2000)

  • This redundancy configuration enables continued operation without system downtime if a CPU fails. (Control may temporarily stop due to fault detection and CPU changeover.)
  • The same program is stored in CPUs for the active and backup systems, allowing constant data value equalization.
1:1 warm-standby feature (SPH300/SPH2000)

N:1 cold-standby feature (SPH300)

  • N:1 backup feature enables reduction of the number of standby system CPUs to one, though when a CPU fails, data retained in the active system and that in the standby system are not equalized.
  • Data retained by the active system is not taken over. The backup system CPU performs initial start.
N:1 cold-standby feature (SPH300)-01
  • Programs can be intensively controlled by a memory card. Programs for N units of systems can be stored on a memory card, which is installed in the memory card interface module for centralized control of the programs. The same processing programs as on the down CPU are downloaded to the backup system CPU.
N:1 cold-standby feature (SPH300)-02

Note 1: The model that supports SPH2000 is NP1PM-256H.
Note 2: For a redundancy configuration buildup with a DC power supply, contact our sales section.

Highly reliable duplex system feature (SPH5000H)

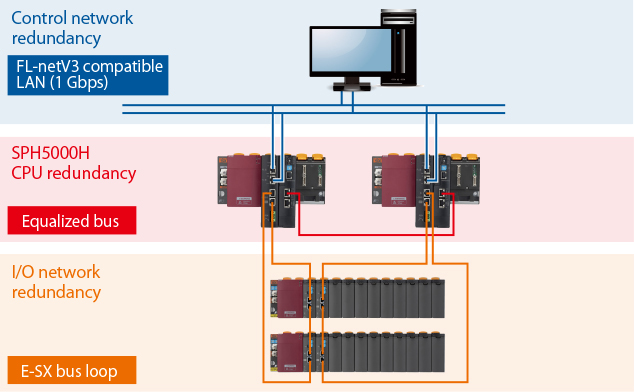

  • Allows you to construct control systems that support redundant CPU, duplexed control network, duplexed I/O network, and loop network.
Highly reliable duplex system feature

Ultra-high speed E-SX bus

Comparison of functions and performances between the E-SX bus and the SX bus

Function and performanceSPH3000(D)SPH3000MM/MG/5000H
System busSX busSX busE-SX bus

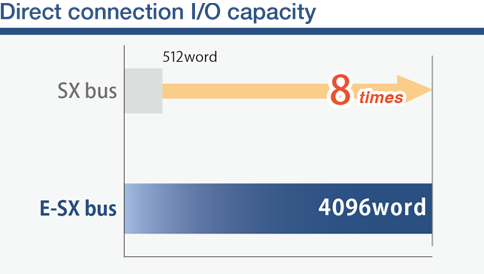

Direct connection I/O capacity512word512word4096word

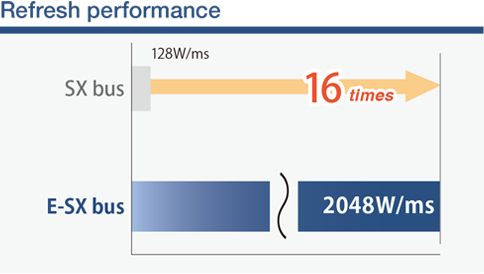

Refresh performance128word/ms128word/ms2048word/ms

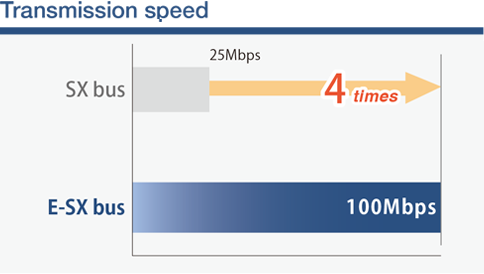

Transmission speed25Mbps25Mbps100Mbps
Tact fluctuation100µs100µs±1µs or less
Synchronization between stationsNoneNoneProvided(±1µs or less)

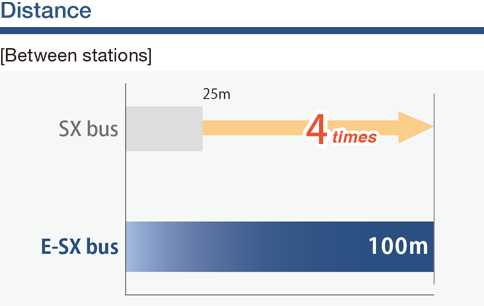

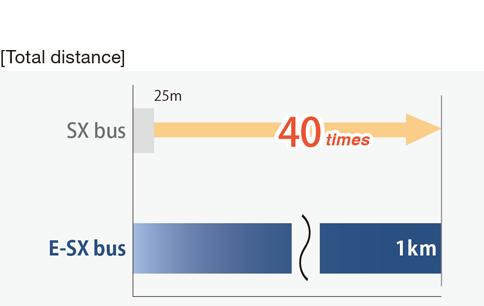

Distance (between stations/total distance)25m/25m25m/25m100m/1km
Continued operation with the line broken (Loopback)NoneNoneProvided
  • Direct connection I/O capacity
  • Transmission speed
  • Refresh performance
  • Tact accuracy
  • Distance(Between stations)
  • Distance(Total distance)

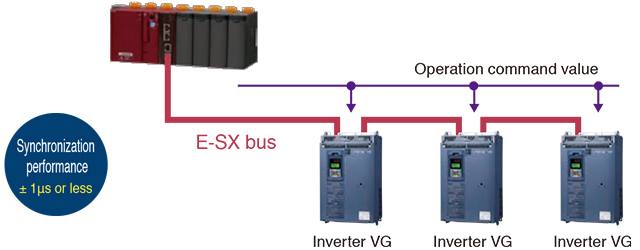

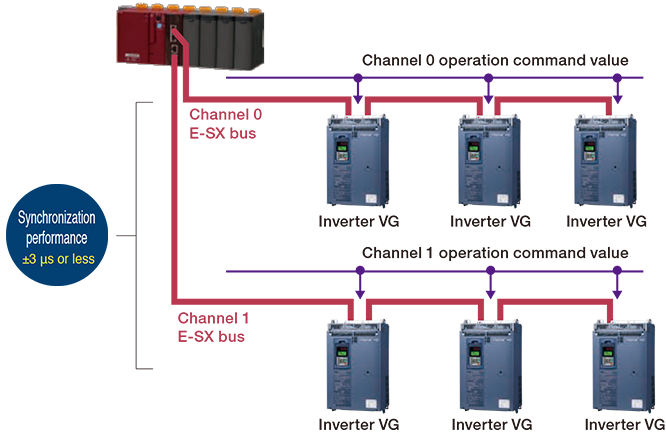

Synchronization control of E-SX bus

Synchronization in the bus

Data output timing is synchronized in the E-SX bus.

Synchronization in the bus

Synchronization between buses

Data output timing is synchronized between channels of the E-SX bus.

Synchronization between buses

Connection function of the E-SX bus

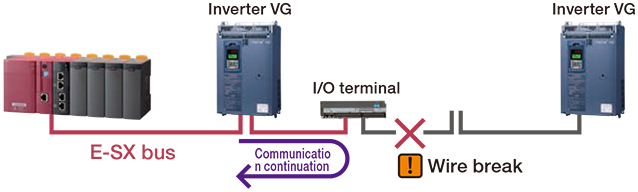

Loopback function

Communication is continued by the signal repeater function even when a wire is broken.

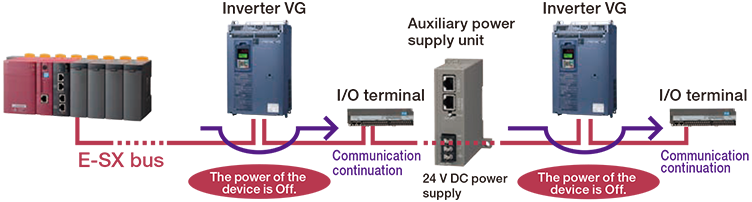

Signal bypass function

Even when a power of some devices is not turned on, the communication is continued by the auxiliary power unit.
