Compact NDIR Gas Analyzer System <ZSVF>

Compact NDIR Gas Analyzer System<ZSVF>

Simultaneous and continuous measurement of up to 5 components among: NOx, SO2, CO, CO2, CH4, and O2

Suited for monitoring of flue gas, combustion gas, biogas, etc.

  • Continuous measurement for 5 days max.
  • Separatable structure
  • A variety of functions: auto calibration, O2-corrected output, averaging, alarm, etc.
  • Easy-to-see LCD
    You can check the concentration changes of all components at a glance
  • Easy-to-use interface
  • You can select a paramagnetic O2 sensor or a galvanic O2 sensor

Easy-to-see LCD

Menu screen

Menu screen

Range switching screen

Range switching screen

Zero/span calibration

Zero/span calibration

Separatable structure

Sampling unit

Sampling unit

Analyzer unit

Analyzer unit

Gas extractor (option)

Simple probe

Simple probe

Probe with primary filter

Probe with primary filter

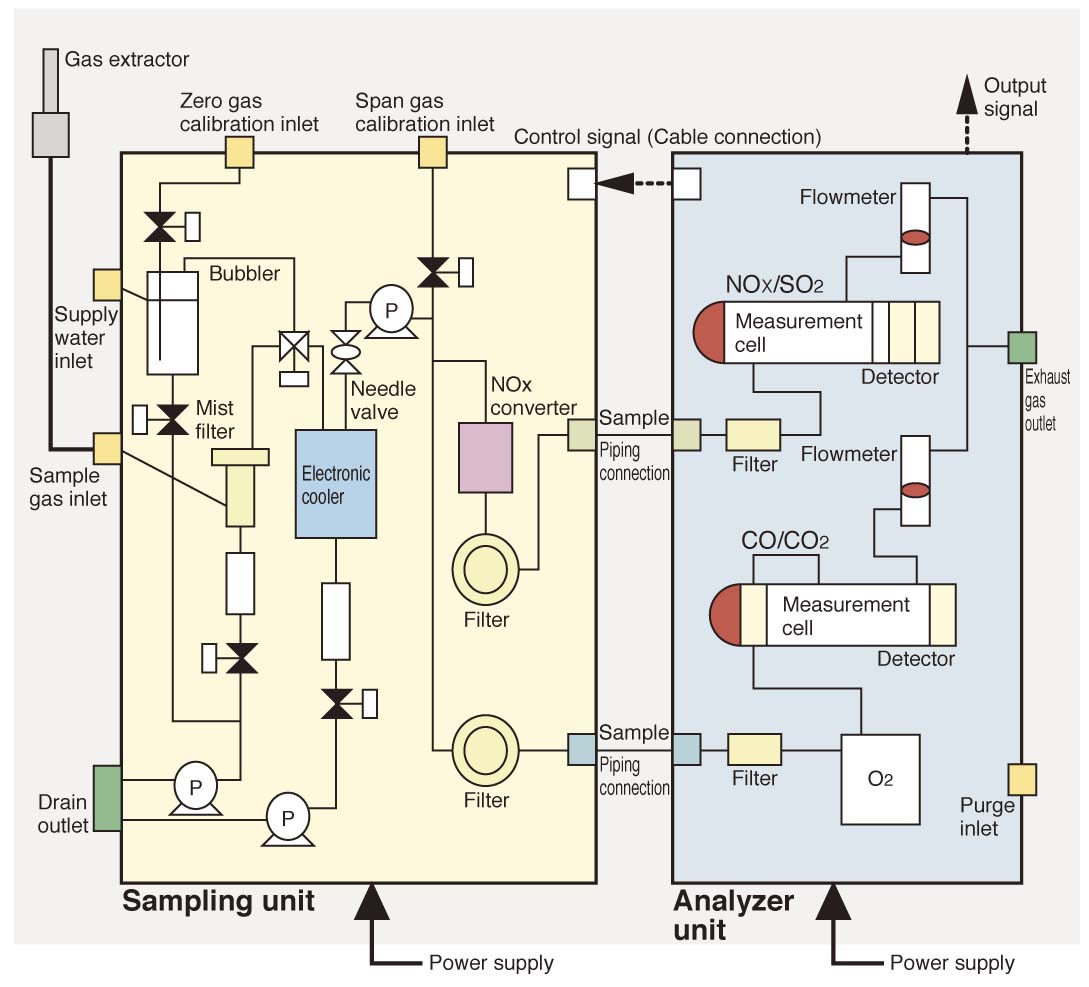

System configuration

Specifications

Principle NOX, SO2, CO, CO2, CH4: Non dispersive infrared sensor
O2: paramagnetic sensor or galvanic sensor
Components 1 component: NOX, SO2, CO, CO2, CH4
2 components: NOX+SO2, CO2 + CO, CH4 + CO, CO2 + CH4, NOX + CO
3 components: NOX + SO2 + CO, NOX + SO2 + CO2, NOX + CO2 + CO,
SO2 + CO2 + CO, CH4 + CO2 + CO
4 components: NOX + SO2 + CO + CO2
O2 measurement can be added to above all.
Range NOX: 0–500 ppm…5000 ppm
SO2: 0–500 ppm…1%
CO: 0–200 ppm…100%
CO2: 0–200 ppm…100%
CH4: 0–1000 ppm…100%
O2: 0–5%…25%
No. of ranges 3 (Maximum range ratio 1 : 5)
Repeatability ±0.5% FS
Zero drift ≤ ±1.0% FS per day
Span drift ≤ ±1.0% FS per day
Linearity ±2.0% FS
Response time ≤ 50 s (for 90% response)
O2 measurement with galvanic sensor and SO2 measurement: ≤ 3 min
Output signal 4–20 mA DC (linear) or 0–1 V DC (linear), up to 8 points, non-insulation
(instantaneous value, O2-corrected instantaneous value, O2-corrected average value)
Display backlit LCD, English or Japanese
Functions Auto calibration, O2 correction, averaging, output signal hold, automatic display off
Communication RS-232C (Modbus protocol)
Operating environment -5°C to +40°C, RH 90% or less
Power supply voltage 100–115 V AC or 200–240 V AC, 50/60 Hz
Power consumption Analyzer unit: approx. 150 VA
Sampling unit: approx. 250 VA
Dimensions and weight Analyzer unit: 365 (W) x 211 (H) x 514 (D) mm, approx. 12 kg
Sampling unit: 365 (W) x 377 (H) x 514 (D) mm, approx. 18 kg
Gas conditions Temperature 0–50°C at inlet
Flow rate 0.5 L/min ±0.2 L/min per optical system
Dust ≤ 50 mg/Nm3
Pressure ≤ 3 kPa (gas outlet should be open to the atmospheric air)
Mist Unallowable
Corrosive gas HCl: ≤ 10 ppm

Note: this product is non-explosion-proof. The utmost caution must be exercised when handling explosive gas or hazardous gas.
