Double Beam NDIR Gas Analyzer <ZKJ>

Double Beam NDIR Gas Analyzer <ZKJ>

Simultaneous and continuous measurement of up to 5 components among:
NO, SO2, CO2, CO, CH4, N2O, and O2

Ideal for flue gas monitoring in incinerators and industrial furnaces

  • The mass flow type twin detector — hardly affected by interference gas
  • A variety of functions: auto calibration, O2-corrected output, averaging, alarm, etc.
  • Easy-to-see LCD
    You can check the concentration changes of all components at a glance
  • 19-inch rack mount
  • Maximum range ratio 1 : 25
    A user can set or change a range within the limit
  • Zero drift for 200 ppm range: ≤ ±1% FS per week
Mass flow sensor

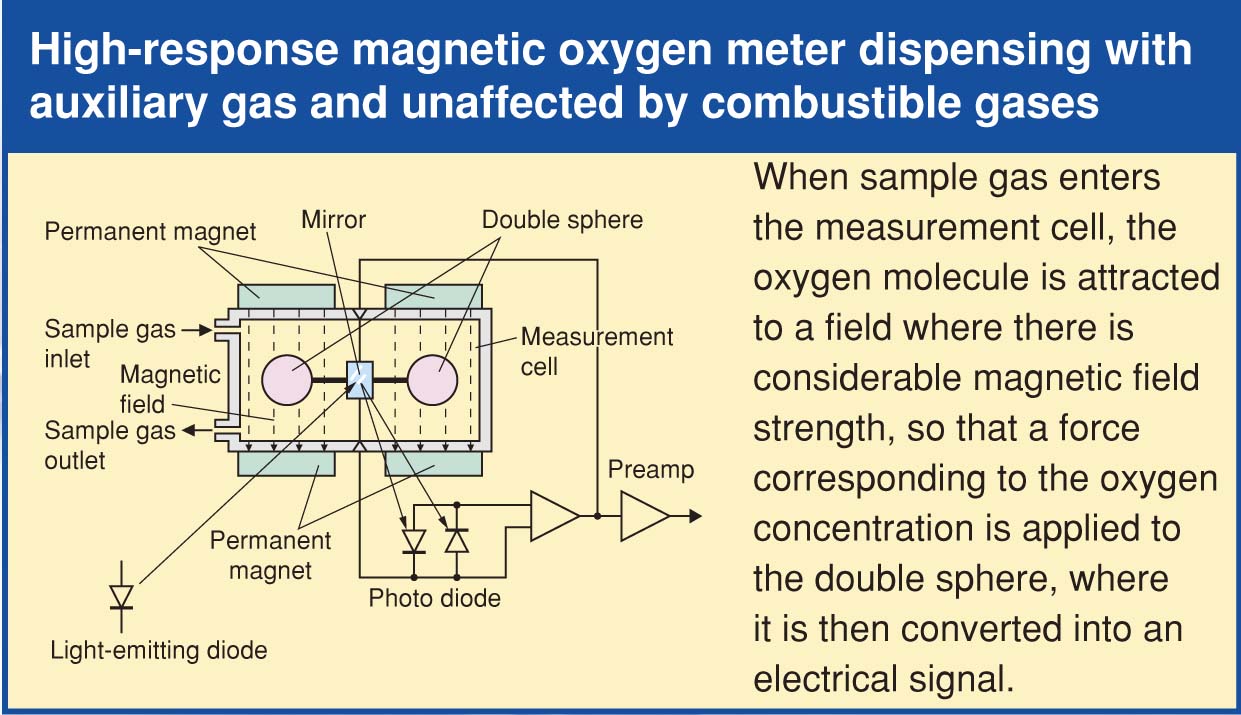

Paramagnetic O2 sensor

Specifications

Principle NO, SO2, CO2, CO, CH4, N2O: Non-dispersive infrared sensor
O2: built-in paramagnetic sensor or external zirconia sensor (ZFK7, optional)
Components 1 component: NO, SO2,CO2, CO, CH4, N2O
2 components: NO + SO2, NO + CO, CO2 + CO, N2O + CO2
3 components: NO + SO2 + CO, NO + N2O + CO2, SO2 + N2O + CO2, N2O + CO2 + CO, CH4 + N2O + CO2
4 components: NO + SO2 + CO2 + CO , NO + SO2 + N2O + CO2
O2 measurement can be added to above all.
Range NO: 0–50 ppm…5000 ppm
SO2: 0–50 ppm…10%
CO2: 0–20 ppm…100%
CO: 0–50 ppm…100%
CH4: 0–200 ppm…100%
N2O: 0–200 ppm…2000 ppm
O2: 0–5%…25%
Repeatability ±0.5% FS (±1% FS for 50 ppm or less)
Zero drift ≥ 200 ppm range: ±1% FS per week
50–200 ppm range: ±2% FS per week
≤ 50 ppm range: ±2% FS per day
Span drift ≤ ±2% FS per week
(50 ppm or less: ±2.0% FS per day)
Linearity ±1% FS
Response time ≤ 60 s (for 90% response) at a sample gas flow rate of 0.5 L/min
Output signal 4–20 mA DC or 0–1 V DC
(instantaneous values, O2-corrected instantaneous values, O2-corrected average values, O2 average)
Contact output Instrument error, calibration error, range identification, auto calibration status, pump ON/OFF, peak alarm, high/low limit alarm, power disconnection alarm
Contact input Remote range switch, auto calibration remote start, remote holding, average value resetting, pump ON/OFF
Functions Auto calibration, O2 correction, O2 average, CO peak count and alarm, etc.
Operating environment -5 to +45°C, RH 90% or less
Power supply voltage 100–240 V AC, 50/60 Hz, 250 VA
Dimensions 483 (H) × 177 (W) × 600 (D) mm
Gas conditions Temperature 0–50°C
Flow rate 0.5 L/min ±0.2 L/min
Pressure ≤ 10 kPa (gas outlet should be open to the atmospheric air)
Dust ≤ 100 μg/Nm3 with particle size ≤ 1 μm
Mist Unallowable
Moisture Below the saturation vapor density at 2°C (Non condensing)
Corrosive gas ≤ 1 ppm

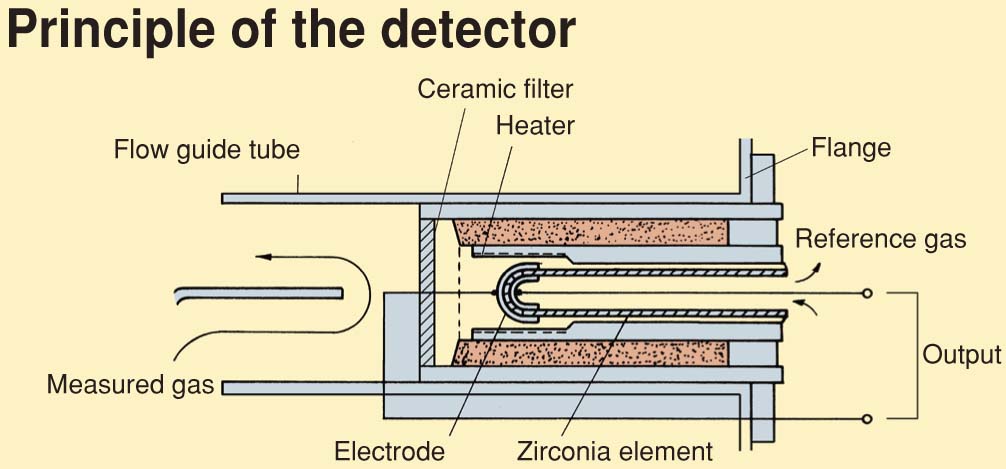

Zirconia O2 sensor (to be purchased separately)
Zirconia O<sub>2</sub> sensor (to be purchased separately)

ZFK7
Dimensions: 141 (H) x 170 (W) x 190 (D) mm
Reproducibility: ±0.5% FS
Response time: approx. 20 s (for 90% response)
Power supply voltage: 100–115 V AC or 200–240 V AC, 50/60 Hz
No concentration indication

Gas sampling system configuration example

The following diagram shows a typical sampling system for monitoring five components in flue gas from boilers or incinerators.
We can configure an ideal system for any application.

Gas sampling system configuration example
