Thermal Conductivity Gas Analyzer <ZAF>

Thermal Conductivity Gas Analyzer <ZAF>

Ideal for H2, Ar, and He measurement

Applications

  • H2 monitoring in semiconductor manufacturing equipment, hydrogen generation equipment, calcining furnaces
  • Ar, He, CH4 measurement in gas generation plants
  • He measurement in superconducting devices
  • Ar measurement in air-separation plants

Principle

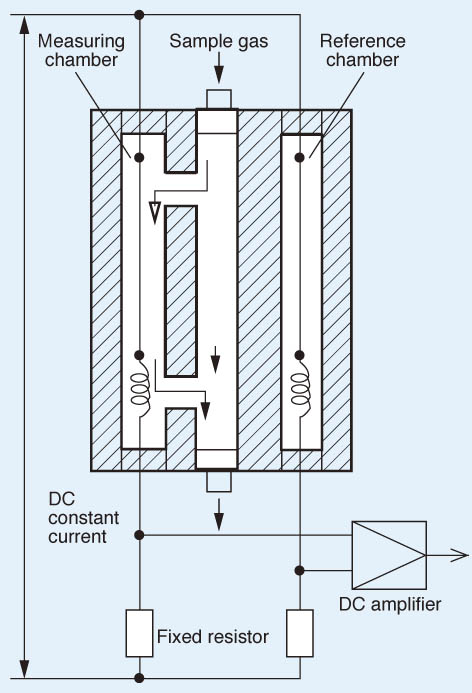

This thermal conductivity gas analyzer measures gas concentration by utilizing the difference of thermal conductivities between two gas components. In the detector, there are a reference chamber and a measuring chamber, in each of which a thin platinum wire is stretched. The reference chamber is filled with reference gas. The sample gas is flowed through the measuring chamber. Each platinum wire composes a bridge circuit in combination with an external fixed resistor, and is heated by flowing a constant current. When there is a change in the concentration of the component under measurement, the thermal conductivity of sample gas will change to affect the temperature of the platinum wire in the measuring chamber. The resulting thermal change is taken out as a change in electric resistance, according to which the concentration of measured gas is calculated.

Specifications

Standard specifications Principle Thermal conductivity
Components He, Ar, H2, CH4, CO2
Range H2: 0–3 ‥‥ 100%, 100–90%, 100–80%
He: 0–5 ‥‥ 100%, 100–90%, 100–80%
Ar: 0–10 ‥‥ 100%, 100–90%, 100–80%
CH4: 0–20 ‥‥ 100%, 100–80%
Output signal 4–20 mA DC, 0–1 V DC, or 0–10 mV DC, non-isolated output
Load resistance ≤ 550 Ω (at 4–20 mA DC output)
Output resistance 100 kΩ (at 0–1 V DC or 0–10 mV DC)
Display LCD with back light
Display 4-digit
Output hold In both manual and automatic calibrations, output value just before calibration can be held
Power supply & consumption 100–240 V AC, 50/60 Hz, approx. 50 VA
Ambient temperature & humidity -5 to 45°C, 90%RH or less (non condensation)
Mounting Panel mount
Dimensions (H x W x D) in mm 240 × 192 × 213
Weight Approx. 5kg
Enclosure Steel casing, indoor use
Gas inlet/outlet Rc 1/4 or NPT 1/4 (whichever specified)
Purge gas flow rate Approx. 1 L/min (as required)
Performance Repeatability ±1%FS
Drift Zero point: ≤ ±2% FS per week (H2 measurement)
Span point: ≤ ±2% FS per week (H2 measurement)
Response speed
(90% response)
Standard: ≤ 60 s (at flow rate 0.4 L/min)
High speed: ≤ 10 s (at flow rate 1 L/min)
allowed only for H2 measurement (reference gas N2)
Gas conditions Temperature 0–50°C
Gas flow rate Constant at 0.4 ±0.05 L/min
Dust ≤ 100 μg/Nm3 in particle size of 0.3 μm or smaller
Pressure ≤ 10 kPa
Mist, corrosive gas Unallowable
Moisture Below saturation at 2°C
Optional specifications Relay contact output 5 SPST relay contact outputs
Relay contact capacity: 220 V AC/2A (resistive load)
Isolated with relay between contacts, and between contacts and internal circuit.
Max. 5 functions can be selected among those listed below.
① Zero-side solenoid valve drive output for automatic calibration
② Span-side solenoid valve drive output for automatic calibration
③ Suction pump OFF output in automatic calibration
④ Upper limit (1 point) concentration alarm output
⑤ Lower limit (1 point) concentration alarm output
⑥ Upper/lower limit (1point) concentration alarm output
⑦ Upper limit (1 point) and lower limit (1 point) concentration alarm output (Total 2 points)
⑧ 2-step upper limit (1 point at each step) concentration alarm output (Total 2 points)
⑨ 2-step lower limit (1 point at each step) concentration alarm output (Total 2 points)
⑩ Analyzer error or automatic calibration error alarm output
⑪ Calibrating status output
⑫ Range identification output (for 2 range type only)
Contact input 3 non-voltage contact inputs
ON: 0 V, OFF: 5V DC, current at ON: 5mA
Isolated with photo coupler between inputs and internal circuit.
Not isolated between contact inputs.
The following actions are available:
① Remote holding of measured value output
② Remote range changeover (only with 2-range analyzer)
③ Remote start of automatic calibration
Interference gas measured value input 1–5 V DC analog input for H2 analyzer interference correction
Either CO2 or CH4 value measured by an external gas analyzer
Adjustment at Fuji Electric factory is required. We will check the details of the gas to be measured when receiving an order.
Auto calibration Zero and span calibrations are automatically carried out at the predetermined intervals. Externally installed solenoid valves are driven to flow calibration gas sequentially.
Communication RS-232C (9-pin D-sub output)
Half duplex, asynchronous
MODBUS protocol, communication speed 9600 bps
Contents of communication: Reading/writing of measured concentration values and various set values, and output of device status
