External Dimensions GYG motor | ALPHA5 Smart | Fuji Electric Global

Home > Products & Solutions > Fuji Servo System > ALPHA5 Smart > Product Information > External Dimensions GYG motor

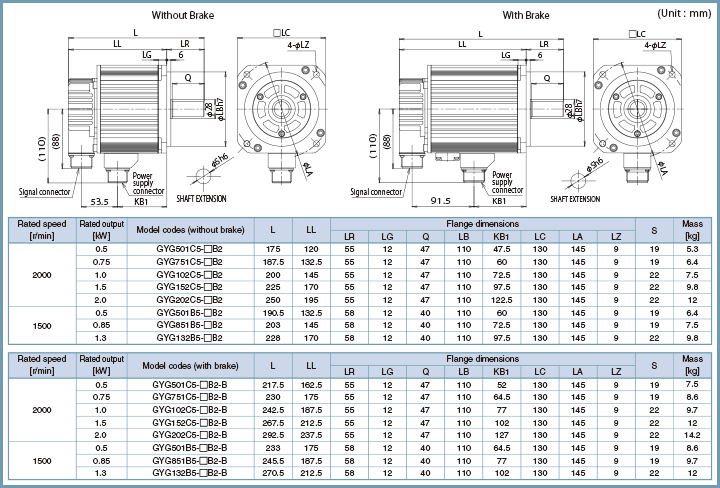

GYG motor (2000r/min)

* See Optional shaft extension specifications for the shaft extension specifications of the motor with a key.

GYG motor (2000r/min with a brake)

* See Optional shaft extension specifications for the shaft extension specifications of the motor with a key.

GYG motor (1500r/min)

* See Optional shaft extension specifications for the shaft extension specifications of the motor with a key.

GYG motor (1500r/min with a brake)

* See Optional shaft extension specifications for the shaft extension specifications of the motor with a key.
