3 Phase Induction Motors〈CHINA〉

3-phase induction motors
モータの動向について

There has been an accelerating trend to suppress the usage of carbon dioxide (CO2) generating energy sources as a means of preventing worldwide global warming.
Against this backdrop, a great change has occurred in the environment surrounding 3-phase induction motors (hereinafter "motors") since they occupy approximately 40 to 50% of the world's energy consumption. There is currently a rapid move taking place in many countries toward the adoption of regulation-compliant high-efficiency motors that meet national standards such as MEPS*1.

China has also been enforcing amendments to standards, which includes a change from [GB18613-2006: Grade GB2*2 (equivalent to IE2*2)], enacted on July 1, 2011, to [GB18613-2012: Grade GB3 (IE2*2)], newly enacted on September 1, 2012.
In other words, as of September 1, 2012, exporters of single unit motors and motors built into machinery and facilities need to be very careful because only motors that have acquired "GB18613-2012: Grade GB3" certification can clear customs and be sold in China.
※1
MEPS : Minimum Energy Performance Standard
※2
IE2 : Efficiency class (IE code) based on the international standard IEC 60034-30






Regulation Outline
Legal name Energy efficiency labeling implementation regulations
Compliance standard GB18613-2012
Efficiency class Grade GB3 (IE2)
Regulation effective date From September 1, 2012
Applicable motors Housing structure Totally-enclosed fan-cooled type (with autonomous fan)
Mounting method Unspecified
Output
* Based on 4 poles
0.75 to 375 kW
Number of poles 2,4,6P
Voltage and frequency 1000 V or below, 50 Hz
Rating S1 (continuous), S3 80% ED (repetitive)
Load factor 100%
Speed Single speed
Characteristics Design N
Other General application, explosion-proof motor, etc.
Certification system Acquisition obligations Yes
Labeling obligations Yes (specified label)
Penal provisions Yes
Regulation exempt (example)
  • Motors that are integrated into equipment (pumps, fans, gear boxes, etc.), thus cannot be separated and individually tested
  • Inverter-driven dedicated motor
  • Motor with built-in electromagnetic brake, etc.
Reference)
For information on high-efficiency regulations, refer to the website of the Japan Electrical Manufacturers' Association (JEMA).
http://www.jema-net.or.jp/Japanese/pis/imotor.html



Grade ⁄ Efficiency Reference Values
Output[kW] Grade GB1 Grade GB2 Grade GB3
2 poles 4 poles 6 poles 2 poles 4 poles 6 poles 2 poles 4 poles 6 poles
0.75 84.9 85.6 83.1 80.7 82.5 78.9 77.4 79.6 75.9
1.1 86.7 87.4 84.1 82.7 84.1 81.0 79.6 81.4 78.1
1.5 87.5 88.1 86.2 84.2 85.3 82.5 81.3 82.8 79.8
2.2 89.1 89.7 87.1 85.9 86.7 84.3 83.2 84.3 81.8
3 89.7 90.3 88.7 87.1 87.7 85.6 84.6 85.5 83.3
4 90.3 90.9 89.7 88.1 88.6 86.8 85.8 86.6 84.6
5.5 91.5 92.1 89.5 89.2 89.6 88.0 87.0 87.7 86.0
7.5 92.1 92.6 90.2 90.1 90.4 89.1 88.1 88.7 87.2
11 93.0 93.6 91.5 91.2 91.4 90.3 89.4 89.8 88.7
15 93.4 94.0 92.5 91.9 92.1 91.2 90.3 90.6 89.7
18.5 93.8 94.3 93.1 92.4 92.6 91.7 90.9 91.2 90.4
22 94.4 94.7 93.9 92.7 93.0 92.2 91.3 91.6 90.9
30 94.5 95.0 94.3 93.3 93.6 92.9 92.0 92.3 91.7
37 94.8 95.3 94.6 93.7 93.9 93.3 92.5 92.7 92.2
45 95.1 95.6 94.9 94.0 94.2 93.7 92.9 93.1 92.7
55 95.4 95.8 95.2 94.3 94.6 94.1 93.2 93.5 93.1
75 95.6 96.0 95.4 94.7 95.0 94.6 93.8 94.0 93.7
90 95.8 96.2 95.6 95.0 95.2 94.9 94.1 94.2 94.0
110 96.0 96.4 95.6 95.2 95.4 95.1 94.3 94.5 94.3
132 96.0 96.5 95.8 95.4 95.6 95.4 94.6 94.7 94.6
160 96.2 96.5 96.0 95.6 95.8 95.6 94.8 94.9 94.8
200 96.3 96.6 96.1 95.8 96.0 95.8 95.0 95.1 95.0
250 96.4 96.7 96.1 95.8 96.0 95.8 95.0 95.1 95.0
315 96.5 96.8 96.1 95.8 96.0 95.8 95.0 95.1 95.0
355〜375 96.6 96.8 96.1 95.8 96.0 95.8 95.0 95.1 95.0
(Note1)
Intermediate output other than those output values mentioned above is also applicable.
(Note2)
Scheduled Grade GB2 (IE3) updates include: Specifications regarding output exceeding 7.5 kW on September 1, 2016, and specifications regarding output of 7.5 kW and below on September 1, 2017.



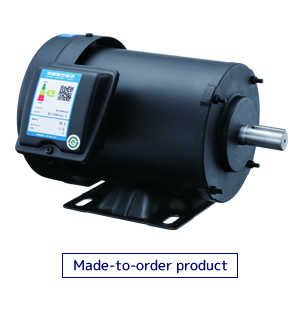

Standard Specification
Housing structure Totally-enclosed fan-cooled type (indoor type: IP44)
Output 0.75 to 375 kW
Number of poles 2・4・6P
Frame number 80 M to 355 K
(Note1)Rated voltage 380 V or 200 V
Rated frequency 50Hz
Time rating S1 (continuous)
Starting method 3.7 kW or smaller:direct-on-line starting, 5.5 kW or larger:-△starting
Thermal class 155(F)
(Note2)Direction of rotation CW (clockwise as seen from load side)
Cooling system IC411
(Note3)Mounting method Leg mounting type
Color of coating Munsell N5 (gray)
Efficiency standards GB18613-2012 (Grade GB3)
(Note4)Applicable standards IEC60034-1
GB12350-2009  *CCC certified models only
(Note1)
Make separate inquiry regarding voltages other than those listed above.
(Note2)
We can also manufacture products with a CCW (counterclockwise as seen from load side) direction of rotation.
(Note3)
We can also manufacture flange mounting types and leg equipped flange mounting types.
(Note4)
Since we can also support JIS, JEC, and JEM standard compliant products, make separate inquiry if interested.

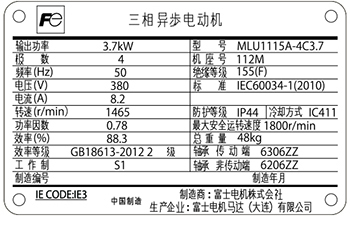

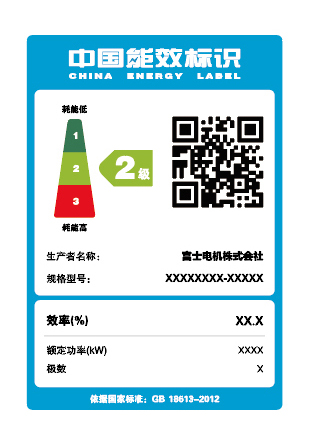

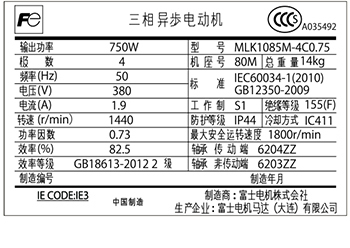

Certification Label
Certification Label
